Airports for X-Plane

Kajaani

Airport details

CountryFinland
StateOulu
RegionEF
AirspaceHelsinki Ctr
MunicipalityKajaani
Elevation479ft (146m)
TimezoneGMT +2
Coordinates64.28416, 27.68750
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEFKI
IATA codeKAJ
FAA coden/a

Communication

Kajaani AFIS118.100
Kajaani AFIS119.700

Approach frequencies

ILS-cat-IRW07109.918.00mi
3° GSRW07109.918.00mi

Runway info

Runway 07 / 25
 length2501m (8205ft)
 bearing85° / 265°
 width48m (157ft)
 surfaceasphalt

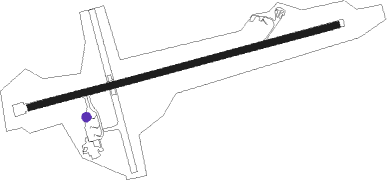

Airport layout - parking location 1


Taxiway locations

 A
Parking locations

 1  2  3  GA1  GA2  MIL1  MIL2  MIL3
 MIL4

Nearby beacons

codeidentifierdistbearingfrequency
KNIDME0.8267°114.90

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 EVRI2C21mi61°
 ETRO2C20mi161°
 ODRU1C24mi255°
 UBIG2C24mi277°
RW25
 EVRI3D21mi61°
 ETRO2D20mi161°
 ODRU1D24mi255°
 UBIG2D24mi277°

STAR starting pointsdistanceinbound heading
RW07
 ODRU1A24.175°
 UBIG2A23.797°
 EVRI2A21.1241°
 ETRO3A20.2341°
RW25
 ODRU1B24.175°
 UBIG2B23.797°
 EVRI2B21.1241°
 ETRO3B20.2341°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07ETEVI (73°)ETEVI 3500ft
LADID (5mi, 336°) 3100ft
RW07LADID (85°)LADID 3100ft
RW07ROGLU (96°)ROGLU 3100ft
LADID (5mi, 156°) 3100ft
 RNAVLADID 3100ft
ULKEP (5mi, 85°) 2100ft
EFKI (6mi, 86°) 486ft
INGIT (11mi, 85°) 3100ft
RW25EMBAN (276°)EMBAN 3500ft
INGIT (5mi, 338°) 3100ft
RW25INGIT (265°)INGIT 3100ft
RW25KUNES (253°)KUNES 3100ft
INGIT (5mi, 158°) 3100ft
 RNAVINGIT 3100ft
ABMUS (5mi, 266°) 2100ft
EFKI (6mi, 265°) 534ft
LADID (11mi, 265°) 3100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ETRO3ALADIDVHFleft248 (68)°> 3100ft1.0min timed230
ETRO3BINGITVHFright68 (248)°> 3100ft1.0min timed230
EVRI2ALADIDVHFleft248 (68)°> 3100ft1.0min timed230
EVRI2BINGITVHFright68 (248)°> 3100ft1.0min timed230
ODRU1ALADIDVHFleft248 (68)°> 3100ft1.0min timed230
ODRU1BINGITVHFright68 (248)°> 3100ft1.0min timed230
UBIG2ALADIDVHFleft248 (68)°> 3100ft1.0min timed230
UBIG2BINGITVHFright68 (248)°> 3100ft1.0min timed230
*) magnetic outbound (inbound) holding course
