Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

regional newark faa runway local government international aircraft airport apron hangar airport authority train stolport airbus aerodrome flown jetliner non-towered airport luggage railway station seaplanes

Airports for X-Plane

Tampere / Pirkkala - Tampere Pirkkala

Airport details

CountryFinland
StateWestern Finland
RegionEF
AirspaceHelsinki Ctr
MunicipalityPirkkala
Elevation390ft (119m)
TimezoneGMT +2
Coordinates61.42144, 23.62761
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEFTP
IATA codeTMP
FAA coden/a

Communication

Tampere Pirkkala ATIS133.550
Tampere Pirkkala Tampere radar127.100
Tampere Pirkkala PIRKKALA Tower118.700
Tampere Pirkkala PIRKKALA Tower119.700
Tampere Pirkkala PIRKKALA Approach119.700
Tampere Pirkkala PIRKKALA Approach126.200

Approach frequencies

ILS-cat-IRW24110.118.00mi
3° GSRW24110.118.00mi
Nearby Points of Interest:
Neulalähde
-
Sääksjärvi railway station
-
Pitkäniemi hospital
-
Lepolan huvila
-
Nokiankivi
-
Hatanpää Manor
-
Hatanpää Hospital
-
Epilän Nahkatehdas
-
Bishop's Residence
-
Pyynikinlinna
-
Haapasen huvila
-
De Gamlas Hem
-
OTK matchstick factory
-
Santalahti Paper Mill
-
Näsijärvi Cardboard Factory
-
Haarla paper mill
-
Marjatta Hospital
-
Former Real Lyceum
-
Tampere Workers' Hall
-
Hjorthin talo
-
Laukonkulma
-
Valioasu Building
-
Kymmenenmiehen talo
-
Office building of the Evangelical Lutheran parishes
-
Tuotanto House

Runway info

Runway 06 / 24
 length2692m (8832ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceasphalt
 blast zone150m (492ft) / 150m (492ft)

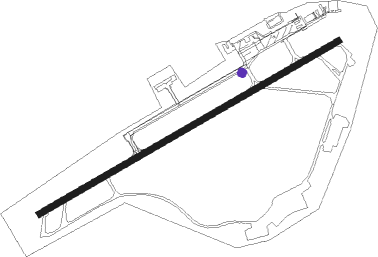

Airport layout - taxiway location T


Taxiway locations

 G  H  J  T
Parking locations

 A2  A3  A4  B2  B3  B4  B5  GA

Nearby beacons

codeidentifierdistbearingfrequency
PIRPIRKKA (TAMPERE) VOR/DME1.5257°116.20
VTIDME60.5147°117

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW06
 ARBE3F28mi77°
 NISV2F22mi125°
 UVEM2F21mi146°
 ENET2F21mi189°
 EVLI2F28mi236°
 NEBA2F29mi248°
 XORM2F29mi264°
 GEMK2F15mi319°
RW24
 ARBE3E28mi77°
 NISV3E22mi125°
 UVEM3E21mi146°
 ENET3E21mi189°
 EVLI3E28mi236°
 NEBA3E29mi248°
 XORM3E29mi264°
 GEMK3E15mi319°

STAR starting pointsdistanceinbound heading
RW06
 EVLI2D27.656°
 NEBA2D29.368°
 XORM2D28.784°
 GEMK3D14.8139°
 ARBE2D27.7257°
 NISV2D21.5305°
 UVEM2D20.7326°
RW24
 EVLI2C27.656°
 NEBA2C29.368°
 XORM2C28.784°
 GEMK3C14.8139°
 ARBE2C27.7257°
 NISV2C21.5305°
 UVEM2C20.7326°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06ERTIN (61°)ERTIN 2700ft
OLNEG (5mi, 315°) 2700ft
RW06TEPDA (89°)TEPDA 2700ft
OLNEG (5mi, 135°) 2700ft
 RNAVOLNEG 2700ft
RIRAR (5mi, 77°) 2000ft
EFTP (6mi, 77°) 441ft
LEDGU (10mi, 78°) 2700ft
RW24ATBOK (239°)ATBOK 2700ft
LEDGU (5mi, 135°) 2700ft
RW24INRUL (271°)INRUL 2700ft
LEDGU (5mi, 315°) 2700ft
 RNAVLEDGU 2700ft
GOMIB (5mi, 257°) 2000ft
EFTP (5mi, 258°) 421ft
OLNEG (11mi, 257°) 2700ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARBE2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
ARBE2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
EVLI2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
EVLI2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
GEMK3CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
GEMK3DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
NEBA2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
NEBA2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
NISV2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
NISV2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
UVEM2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
UVEM2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
XORM2CLEDGUVHFright55 (235)°> 2700ft1.0min timed230
XORM2DOLNEGVHFleft325 (145)°> 2700ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
