Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

port international hangar heliport automated airport weather station luggage seaplane international airport terminal railway station aviation southwest air safety ferry hospital airstrip airborne local government military hotel

Airports for X-Plane

Kemble

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityWiltshire
Elevation433ft (132m)
TimezoneGMT +0
Coordinates51.66806, -2.05694
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGBP
IATA codeGBA
FAA coden/a

Communication

Kemble INFO118.900

Runway info

Runway 08 / 26
 length2005m (6578ft)
 bearing84° / 264°
 width45m (148ft)
 surfaceasphalt
 displ threshold170m (558ft) / 264m (866ft)
Runway 08L / 26R
 length559m (1834ft)
 bearing84° / 264°
 width19m (62ft)
 surfacegrass

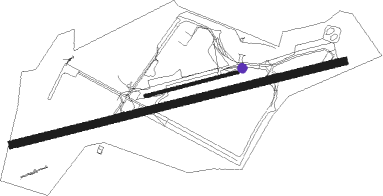

Airport layout - taxiway location A4


Taxiway locations

 A1  A2  A3  A4  B1  C1  C2  D1
 G2  G3
Parking locations

 Belfast  D  G  H  Tower  Woodside

Nearby beacons

codeidentifierdistbearingfrequency
FFAFAIRFORD TACAN9.687°113.40
GSTGLOUCESTERSHIRE NDB14334°331
BZNBRIZE NORTON TACAN17.580°111.90
BZBRIZE NORTON NDB17.680°386
OFFILTON NDB21.8255°325
OXOXFORD NDB2977°367
BRIBRISTOL NDB30247°414
CPTCOMPTON VOR/DME32.9102°114.35
BDNBOSCOMBE DOWN TACAN33.2150°108.20
BSOBENSON TACAN35.893°110
HONHONILEY VOR/DME43.830°113.65
VLNYEOVILTON TACAN45.4221°111
SHSHOBDON NDB46305°426
DTYDAVENTRY VOR/DME46.562°116.40
BHXBIRMINGHAM NDB48.521°406
YVLDME49219°109.05
YVLYEOVIL NDB49.2220°343
EASSOUTHAMPTON (EASTLEIGH) NDB50.2135°391
SAMSOUTHAMPTON VOR/DME50.4135°113.35
WBAWOLVERHAMPTON NDB51.4346°356
WOLDME51.4346°108.60
BIABOURNEMOUTH NDB54166°339

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26AXSOC (284°)AXSOC 2500ft
EDBIF (5mi, 345°) 2400ft
RW26BUSVE (242°)BUSVE 2500ft
EDBIF (5mi, 165°) 2400ft
 RNAVEDBIF 2400ft
BP26F (4mi, 264°) 1800ft
EGBP (5mi, 264°) 461ft
BPM04 (7mi, 264°)
BPM05 (5mi, 165°)
AXSOC (15mi, 84°) 2500ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
