Airports for X-Plane

London - Biggin Hill

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityLondon
Elevation598ft (182m)
TimezoneGMT +0
Coordinates51.33083, 0.03250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGKB
IATA codeBQH
FAA coden/a

Communication

Biggin Hill ATIS135.680
Biggin Hill Tower134.805
Biggin Hill Approach129.405
Biggin Hill THAMES Radar132.700

Approach frequencies

ILS-cat-IRW21109.3518.00mi
3° GSRW21109.3518.00mi

Runway info

Runway 03 / 21
 length1798m (5899ft)
 bearing38° / 218°
 width45m (148ft)
 surfaceasphalt
 displ threshold245m (804ft) / 0m (0ft)

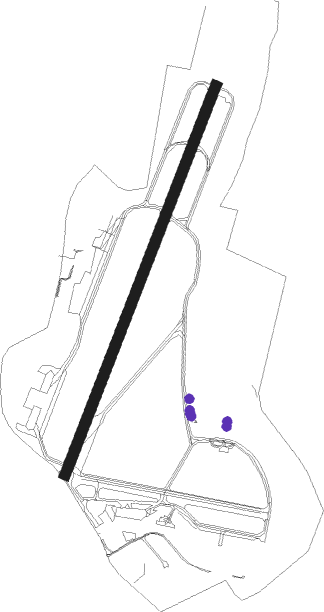

Airport layout - parking location North


Taxiway locations

 A1  A2  A3  AB  C  D1  D2  D3
 F1  H1  H2  J1  K
Parking locations

 King  Main  North  Old  South  Southramp

Nearby beacons

codeidentifierdistbearingfrequency
BIGBIGGIN VOR/DME089°115.10
LCYLONDON CITY NDB10.511°322
EPMEPSOM NDB15.1268°316
OCKOCKHAM VOR/DME18267°115.30
MAYMAYFIELD VOR/DME19165°117.90
LAMLAMBOURNE VOR/DME19.421°115.60
LONLONDON VOR/DME20.9287°113.60
DETDETLING VOR/DME21.293°117.30
HLSDME25.5106°115.95
LSHHEADCORN (LASHENDEN) NDB25.5106°340
BPKBROOKMANS PARK VOR/DME25.6342°117.50
CHTCHILTERN NDB27298°277
BURBURNHAM NDB28.8285°421
SNDSOUTHEND NDB2970°362
MIDMIDHURST VOR/DME29.8247°114
SRHDME-ILS32.1213°109.95
BNNBOVINGDON VOR/DME32.2304°113.75
SHMSHOREHAM NDB32.2214°332
BLCDME32.9270°116.20
BLKBLACKBUSHE NDB32.9270°328
SFDSEAFORD VOR/DME34.4171°117
WODWOODLEY NDB34.9278°352
LUTLUTON NDB35.4333°345
ODHODIHAM TACAN37.3264°109.60
LYDLYDD VOR/DME37.5111°114.05
BKYBARKWAY VOR/DME39.53°116.25
HENHENTON NDB40298°433
LZDLYDD NDB40.8112°397
GWCGOODWOOD VOR/DME41.2239°114.75
WCOWESTCOTT NDB48.5298°335
CITCRANFIELD NDB52.7324°850
CAMCAMBRIDGE NDB53.110°332
WTZWATTISHAM TACAN58.249°109.30

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW03
 DAGGA241mi57°
 DVR251mi97°
 LYD238mi111°
 CPT248mi277°
RW21
 DAGGA241mi57°
 DVR251mi97°
 LYD238mi111°
 CPT248mi277°

STAR starting pointsdistanceinbound heading
ALL
 NEVI1C81.317°
 AVAN1C47.762°
 SAM1C56.575°
 BEDE1C59.791°
 SILV1C49.6116°
 HON1C88.0121°
 XAMA1X, XAMA1C86.2258°
 SUMU1C, SUMU1X79.7262°
 KONA1C74.9276°
 SOVA1C63.4291°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVAN1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
BEDE1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
HON1CJACKOVHFleft84 (264)°8000ft - 14000ft1.0min timed210
HON1CROPMUVHFright277 (97)°16000ft - 21000ft1.0min timed220
KATH1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
KATH1COKVAPVHFleft181 (1)°13000ft - 15000ft1.0min timed220
KONA1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
LIST1CJACKOVHFleft84 (264)°8000ft - 14000ft1.0min timed210
LIST1CROPMUVHFright277 (97)°16000ft - 21000ft1.0min timed220
NEVI1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
NEVI1COKVAPVHFleft181 (1)°13000ft - 15000ft1.0min timed220
SAM1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
SAM1COKVAPVHFleft181 (1)°13000ft - 15000ft1.0min timed220
SILV1CJACKOVHFleft84 (264)°8000ft - 14000ft1.0min timed210
SOVA1CGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
SOVA1COKVAPVHFleft181 (1)°13000ft - 15000ft1.0min timed220
SUMU1CJACKOVHFleft84 (264)°8000ft - 14000ft1.0min timed210
SUMU1XGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
XAMA1CJACKOVHFleft84 (264)°8000ft - 14000ft1.0min timed210
XAMA1XGODLUVHFright129 (309)°8000ft - 12000ft1.0min timed210
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
