Airports for X-Plane

Lydd - Ashford - Lydd

Airport details

CountryUnited Kingdom
StateEngland
RegionEG
AirspaceLondon Ctr
MunicipalityFolkestone and Hythe District
Elevation13ft (4m)
TimezoneGMT +0
Coordinates50.95611, 0.93917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGMD
IATA codeLYX
FAA coden/a

Communication

Lydd Lydd Information129.230
Lydd Lydd Tower119.380
Lydd Lydd Approach120.705

Approach frequencies

ILS-cat-IRW21108.1518.00mi
3.5° GSRW21108.1518.00mi

Runway info

Runway 03 / 21
 length1502m (4928ft)
 bearing45° / 225°
 width32m (105ft)
 surfaceasphalt
 displ threshold0m (0ft) / 37m (121ft)

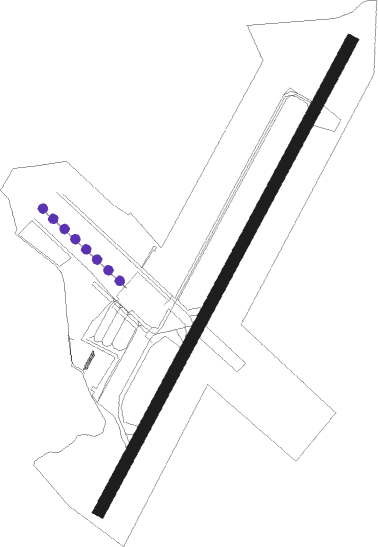

Airport layout - parking location Bravo


Taxiway locations

 A  B  C  D3
Parking locations

 Bravo  CA11  Charlie  Hangar

Nearby beacons

codeidentifierdistbearingfrequency
LZDLYDD NDB0.13°397
LYDLYDD VOR/DME3.4306°114.05
HLSDME16.1304°115.95
LSHHEADCORN (LASHENDEN) NDB16.1304°340
DVRDOVER VOR/DME20.164°114.95
DETDETLING VOR/DME24.5315°117.30
INGSAINT INGLEVERT NDB30.795°387
MAYMAYFIELD VOR/DME31.3274°117.90
SFDSEAFORD VOR/DME33.1257°117
SNDSOUTHEND NDB38.2339°362
BIGBIGGIN VOR/DME40.8293°115.10
BNEBOULOGNE SUR MER VOR41.7109°113.80
LCYLONDON CITY NDB46.4302°322
SRHDME-ILS47.2264°109.95
SHMSHOREHAM NDB47.3264°332
LAMLAMBOURNE VOR/DME50.9311°115.60
EPMEPSOM NDB54285°316
CLNCLACTON VOR/DME54.113°114.55
OCKOCKHAM VOR/DME56.2284°115.30
MIDMIDHURST VOR/DME59.4274°114
ABBABBEVILLE VOR/DME60.4132°108.45
BPKBROOKMANS PARK VOR/DME61.7307°117.50
LONLONDON VOR/DME61.7291°113.60
GWCGOODWOOD VOR/DME64.5267°114.75
CHTCHILTERN NDB67.8295°277
BURBURNHAM NDB69.5289°421
BLCDME70.7282°116.20
BLKBLACKBUSHE NDB70.7282°328
LUTLUTON NDB71.8308°345
BNNBOVINGDON VOR/DME72.5297°113.75
ODHODIHAM TACAN73.1278°109.60
WODWOODLEY NDB74.6285°352

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03GOKAT (50°)GOKAT 2500ft
RW03PEVOL (18°)PEVOL 2500ft
GOKAT (5mi, 296°) 2500ft
RW03RIBGO (73°)RIBGO 2500ft
GOKAT (5mi, 116°) 2500ft
 RNAVGOKAT 2500ft
MD03F (5mi, 51°) 1600ft
MA03 (4mi, 51°) 306ft
DINBI (6mi, 286°)
GOKAT (10mi, 180°) 2500ft
GOKAT (turn) 2500ft
RW21-YGITKI (231°)GITKI 3200ft
TUMVA (4mi, 282°) 3200ft
MD21F (5mi, 208°) 2700ft
RW21-YSORDI (183°)SORDI 3200ft
TUMVA (4mi, 102°) 3200ft
MD21F (5mi, 208°) 2700ft
RW21-YTUMVA (210°)TUMVA 3200ft
MD21F (5mi, 208°) 2700ft
 RNAVMD21F 2700ft
MA21 (6mi, 208°) 428ft
BEMLA (9mi, 309°)
ROMTI (5mi, 118°) 3200ft
ROMTI (turn) 3200ft
RW21-ZBEGTI (235°)BEGTI 3200ft
NURSI (5mi, 282°) 3200ft
GATSU (5mi, 208°) 2800ft
RW21-ZLONRU (179°)LONRU 3200ft
NURSI (5mi, 102°) 3200ft
GATSU (5mi, 208°) 2800ft
RW21-ZNURSI (211°)NURSI 3200ft
GATSU (5mi, 208°) 2800ft
 RNAVGATSU 2800ft
MA21C (6mi, 208°) 597ft
BEMLA (8mi, 306°)
ROMTI (5mi, 118°) 3200ft
ROMTI (turn) 3200ft
