Airports for X-Plane

Edinburgh

Airport details

CountryUnited Kingdom
StateScotland
RegionEG
AirspaceScottish Ctr
MunicipalityCity of Edinburgh
Elevation131ft (40m)
TimezoneGMT +0
Coordinates55.94926, -3.34441
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEGPH
IATA codeEDI
FAA coden/a

Communication

Edinburgh Edinburgh Information131.355
Edinburgh Edinburgh Ground121.755
Edinburgh Edinburgh Tower118.705
Edinburgh Edinburgh Approach121.205
Edinburgh Scottish Control124.825

Approach frequencies

ILS-cat-IIIRW24108.918.00mi
ILS-cat-IIIRW06108.918.00mi
3° GSRW24108.918.00mi
3° GSRW06108.918.00mi
Nearby Points of Interest:
Craigiehall
-
Huly Hill, cairn & stone circle SW of Newbridge roundabout
-
Tynecastle High School
-
Dalmeny Kirk
-
Cramond Roman Fort
-
Almond Valley Viaduct
-
Priory Church, South Queensferry
-
Ravelston Garden
-
Murrayfield Ice Rink
-
Woodhall House, Edinburgh
-
Edinburgh Corn Exchange
-
Merchiston Castle School
-
North Queensferry, Pilot Boat Slipway
-
North Queensferry, Town Pier
-
Craiglockhart Hydropathic
-
Caroline Park
-
Redford Barracks
-
St Mary's Music School
-
Craig House, Edinburgh
-
The Grange Club
-
Edinburgh, Gilmore Place, Viewforth Church
-
Dreghorn Barracks
-
Royal Edinburgh Hospital
-
Bute House
-
Boroughmuir High School

Runway info

Runway 06 / 24
 length2550m (8366ft)
 bearing71° / 251°
 width44m (144ft)
 surfaceasphalt
 displ threshold211m (692ft) / 208m (682ft)
 blast zone62m (203ft) / 61m (200ft)

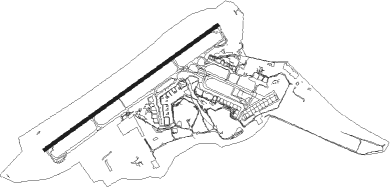

Airport layout


Taxiway locations

 A  A1  A10  A11  A12  A13  A14  A15
 A16  A17  A18  A19  A20  A4  A5  A6
 A8  A9  B  C  C1  D  D1  D3
 E1  F1  F2  G2  H  H6  L1  M
 M1  M2  P1  S1  V2  W2  W3
Parking locations

 1  10  101  102  103  104  106  11
 12  16  18  1A  1B  2  20  200
 201  202  203  204  205  206  207  209
 210  211  212  22  23  25  26  27
 28  29  3  30  308  309  31  310
 311  312  313  314  315  316  317  32
 33  34  4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
EDNEDINBURGH NDB2.664°341
UWEDINBURGH NDB5.9254°368
TLATALLA VOR/DME27181°113.80
PTHPERTH VOR29.6357°110.40
LUKLEUCHARS TACAN3049°110.50
DNDDUNDEE NDB31.324°394
GLOLOWTHER DME36.1215°109.65

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW06
 TLA6D27mi181°
 GOSA1D30mi259°
 GRIC4D19mi306°
RW24
 TLA6C27mi181°
 GOSA1C30mi259°
 GRIC3C19mi306°

STAR starting pointsdistanceinbound heading
ALL
 TUNS1E74.563°
 GIRV1E69.864°
 PTH1G29.6177°
 AGPE1E68.6301°
 INPI1E66.2337°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGPE1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
GIRV1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
INPI1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
PTH1GSTIRAVHFright54 (234)°7000ft - 14000ftDME 4.0mi230
TUNS1ETARTNVHFleft195 (15)°7000ft - 14000ftDME 3.5mi230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
