Airports for X-Plane

Luxembourg

Airport details

CountryLuxembourg
StateLuxembourg
RegionEL
AirspaceBrussels Ctr
MunicipalitySandweiler
Elevation1231ft (375m)
TimezoneGMT +1
Coordinates49.62325, 6.20433
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeELLX
IATA codeLUX
FAA coden/a

Communication

Luxembourg ATIS134.755
Luxembourg Tower118.105
Luxembourg Approach118.905
Luxembourg Departure118.905

Approach frequencies

ILS-cat-IIIRW24110.718.00mi
ILS-cat-IRW06109.918.00mi
3° GSRW06109.918.00mi
3° GSRW24110.718.00mi

Runway info

Runway 06 / 24
 length3994m (13104ft)
 bearing70° / 250°
 width60m (197ft)
 surfaceasphalt
 blast zone0m (0ft) / 55m (180ft)

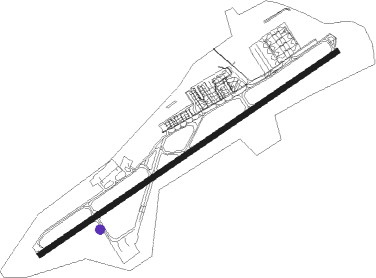

Airport layout - taxiway location H


Taxiway locations

 A  A1  B4  C  D1  D2  E  F
 G  H
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LWLUXEMBOURG NDB1.3250°404
LELUXEMBOURG NDB1.969°318
LUXLUXEMBOURG VOR/DME1.969°112.25
ELULUXEMBOURG NDB6.769°368
WLULUXEMBOURG NDB6.7250°346
DIKDIEKIRCH NDB14.5343°307
MTZMETZ NDB20.8179°354
SPASPANGDAHLEM TACAN28.654°109.50
ETNETAIN NDB31.4233°410
LOULORRAINE NDB37.6174°388
GTQGROSTENQUIN VOR/DME43.1141°111.25
SADDME43.3114°116.75
BUEBUECHEL TACAN47.257°117.10
SLVSPA NDB52.5341°386
SPISPRIMONT VOR/DME58327°113.10
LNOOLNO VOR/DME60.8333°112.80
PHGPHALSBOURG NDB64.5131°424

Departure and arrival routes

Transition altitude4500ft
SID end pointsdistanceoutbound heading
RW06
 ASMO4U, ASMO4T17mi14°
 EXCO2U, EXCO3T11mi101°
 GTQ2U, GTQ2T43mi141°
 MMD1T44mi258°
 RAPO7T39mi268°
 DIK5T15mi343°
RW24
 ASMO4Z17mi14°
 EXCO2Y, EXCO2X11mi101°
 GTQ1X, GTQ1Y43mi141°
 MMD1X44mi258°
 RAPO7X39mi268°
 DIK5X15mi343°

STAR starting pointsdistanceinbound heading
ALL
 MMD1V, MMD1W, MMD5K, MMD5M44.378°
 REMB1D, REMB3K, REMB3M79.7129°
 LNO6M, LNO5K, LNO1D60.8153°
 ARCK1D40.6174°
 BITB1E, BITB1P, BITB1D25.6225°
 BETE3K, BETE3M14.4229°
 OLIV1P, OLIV1G, OLIV1E55.2264°
 MAPI1S34.2282°
 AKEL4K, AKEL4M18.4315°
 GTQ1S, GTQ1D43.1321°
 GIVO1S, GIVO1D58.3349°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06AKE2D (7°)AKELU
LX871 (3mi, 312°)
BREDI (8mi, 312°)
LX062 (11mi, 257°) 4700ft
LX06I (5mi, 319°) 3000ft
RW06DIK2D (7°)DIK
LX861 (4mi, 222°) 4000ft
LX063 (14mi, 222°)
LX06I (5mi, 135°) 3000ft
RW06DIK2Q (7°)DIK
LX861 (4mi, 222°) 4000ft
LX063 (14mi, 222°)
LX065 (4mi, 266°)
LX068 (6mi, 171°)
LX069 (4mi, 86°)
LX06I (3mi, 70°) 3000ft
RW06EXC2D (7°)EXCOS
LX062 (18mi, 256°) 4700ft
LX06I (5mi, 319°) 3000ft
RW06IRT2D (7°)IRTON
LX066 (8mi, 81°)
LX06I (9mi, 101°) 3000ft
RW06KOM2D (7°)KOMOB
LX862 (20mi, 110°)
LX863 (11mi, 169°) 4000ft
LX063 (12mi, 169°)
LX06I (5mi, 135°) 3000ft
RW06OXC2D (7°)OXCAM
LX870 (3mi, 251°)
LX101 (10mi, 251°)
LX102 (6mi, 250°)
LX063 (8mi, 247°)
LX06I (5mi, 135°) 3000ft
RW06OXC2Q (7°)OXCAM
LX870 (3mi, 251°)
LX101 (10mi, 251°)
LX102 (6mi, 250°)
LX063 (8mi, 247°)
LX065 (4mi, 266°)
LX068 (6mi, 171°)
LX069 (4mi, 86°)
LX06I (3mi, 70°) 3000ft
RW06RIT2D (7°)RITAX
LX862 (6mi, 169°)
LX863 (11mi, 169°) 4000ft
LX063 (12mi, 169°)
LX06I (5mi, 135°) 3000ft
RW06VAV2D (7°)VAVOT
LX067 (8mi, 86°)
LX069 (5mi, 86°)
LX06I (3mi, 70°) 3000ft
 RNAVLX06I 3000ft
LX06F (4mi, 70°) 3000ft
ELLX (6mi, 70°) 1214ft
ELU (7mi, 69°) 3000ft
LX872 (10mi, 314°) 4000ft
DIK (4mi, 297°) 4000ft
RW24DIK2C (7°)DIK
LX864 (4mi, 106°) 4000ft
LX242 (7mi, 106°)
LX24I (5mi, 139°) 3000ft
RW24EXC2C (7°)EXCOS
LX243 (5mi, 32°) 4000ft
LX24I (5mi, 319°) 3000ft
RW24IRT2N (7°)IRTON
LX066 (8mi, 81°)
LX242 (28mi, 72°)
LX24I (5mi, 139°) 3000ft
RW24IRT2S (7°)IRTON
LX867 (9mi, 100°)
LX062 (11mi, 100°)
BREDI (11mi, 77°)
LX243 (11mi, 62°) 4000ft
LX24I (5mi, 319°) 3000ft
RW24OXC2C (7°)OXCAM
LX24I (7mi, 205°) 3000ft
RW24PON2C (7°)PONIG
LX24I (5mi, 249°) 3000ft
RW24VAV2N (7°)VAVOT
LX066 (9mi, 61°)
LX242 (28mi, 72°)
LX24I (5mi, 139°) 3000ft
RW24VAV2S (7°)VAVOT
LX869 (9mi, 93°)
LX062 (10mi, 93°)
BREDI (11mi, 77°)
LX243 (11mi, 62°) 4000ft
LX24I (5mi, 319°) 3000ft
 RNAVLX24I 3000ft
LX24F (4mi, 250°) 3000ft
ELLX (7mi, 249°) 1263ft
WLU (7mi, 250°) 3000ft
LX878 (14mi, 9°) 4000ft
DIK (4mi, 33°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKEL4KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
AKEL4MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
ARCK1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
BETE3KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
BETE3MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
BITB1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
EXCO1KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
EXCO1MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
GIVO1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
GIVO1SEXCOSVHFleft223 (43)°6000ft - 9000ftDME 5.0mi230
GTQ1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
GTQ1SEXCOSVHFleft223 (43)°6000ft - 9000ftDME 5.0mi230
LNO1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
LNO5KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
LNO6MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
MAPI1SEXCOSVHFleft223 (43)°6000ft - 9000ftDME 5.0mi230
MMD5KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
MMD5MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
REMB1DDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
REMB3KDIKNDBright301 (121)°4000ft - 10000ft1.0min timed220
REMB3MWLUFIXleft248 (68)°3000ft - 7000ft1.0min timed220
*) magnetic outbound (inbound) holding course
