Airports for X-Plane

Sogndal - Sogndal Haukasen

Airport details

CountryNorway
StateSogn og Fjordane
RegionEN
AirspacePolaris Ctr
MunicipalitySogndal
Elevation1630ft (497m)
TimezoneGMT +1
Coordinates61.15611, 7.13778
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeENSG
IATA codeSOG
FAA coden/a

Communication

Sogndal Haukasen AFIS119.300

Approach frequencies

LOCRW06108.518.00mi
ILS-cat-IRW24108.118.00mi
4° GSRW24108.118.00mi

Runway info

Runway 06 / 24
 length1109m (3638ft)
 bearing74° / 254°
 width30m (98ft)
 surfaceasphalt
 displ threshold59m (194ft) / 131m (430ft)

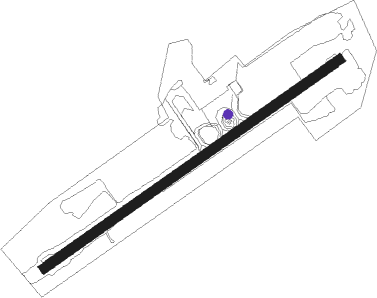

Airport layout - taxiway location B


Taxiway locations

 B
Parking locations

 GA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
SOGSOGNDAL VOR/DME0.7105°114.20
KPGKAUPANGER NDB2.574°303
VNGVANGSNES NDB14.3272°404
STGSTEGEN NDB47.7312°369

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW06
 DOPU1E18mi121°
 LUNU1E36mi253°
 EVNA1E26mi325°
RW24
 DOPU1F18mi121°
 LUNU1F36mi253°
 EVNA1F26mi325°

STAR starting pointsdistanceinbound heading
RW06
 INTU1L39.082°
 EVNA1L26.1145°
 EMLE1L16.7267°
RW24
 INTU2M39.082°
 EVNA1M26.1145°
 EMLE2M16.7267°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW24-YBEDGO (234°)BEDGO 6900ft
BANEN (5mi, 124°) 6300ft
RW24-YDEVUK (264°)DEVUK 7100ft
BANEN (5mi, 305°) 6300ft
 RNAVBANEN 6300ft
TUPOG (3mi, 252°) 5600ft
SG403 (7mi, 251°) 2745ft
SG404 (7mi, 232°)
VNG (14mi, 281°)
VNG (turn) 6500ft
RW24-ZBEDGO (234°)BEDGO 6900ft
ERENO (5mi, 124°) 6300ft
RW24-ZDEVUK (264°)DEVUK 7100ft
ERENO (5mi, 305°) 6300ft
 RNAVERENO 6300ft
SG406 (3mi, 252°) 5600ft
SG407 (9mi, 251°) 1682ft
SG408 (3mi, 251°)
VNG (12mi, 277°)
VNG (turn) 6500ft
RWNVABAXEP (82°)BAXEP 6500ft
OGUTI (4mi, 115°) 6500ft
RWNVAERLIX (54°)ERLIX 6500ft
OGUTI (6mi, 312°) 6500ft
 RNAVOGUTI 6500ft
SG410 (3mi, 75°) 6000ft
SG411 (8mi, 75°) 2290ft
SG412 (9mi, 76°)
ERLIX (21mi, 245°) 6500ft
