Airports for X-Plane

Gdańsk - Gdansk Lech Walesa

Airport details

CountryPoland
StatePomeranian Voivodeship
RegionEP
AirspaceWarsaw Ctr
MunicipalityGdansk
Elevation482ft (147m)
TimezoneGMT +1
Coordinates54.37750, 18.46611
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEPGD
IATA codeGDN
FAA coden/a

Communication

Gdansk Lech Walesa Gdansk ATIS129.625
Gdansk Lech Walesa Gdansk Tower118.100
Gdansk Lech Walesa Gdansk Approach130.875

Approach frequencies

ILS-cat-IIIRW29110.318.00mi
3° GSRW29110.318.00mi

Runway info

Runway 11 / 29
 length2791m (9157ft)
 bearing104° / 284°
 width45m (148ft)
 surfaceasphalt

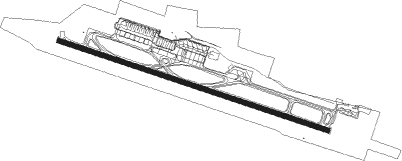

Airport layout


Taxiway locations

 A4  E  F  G
Parking locations

 1  10  11  12  13  2  20  20A
 21  22  23  24  25  26  27  28
 28A  3  31  31'  32  32'  33  33'
 34  34'  35  35'  36  36'  37  4
 40  40'  41  41'  42  42'  43  43'
 44  44'  45  45'  5  50  50A  51
 6  60  61  62  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
GZDGDANSK VOR/DME1.5284°116.10
NWOOKSYWIE (GDYNIA) NDB10.831°494
NEPRUSZCZ GDANSKI NDB11.4119°300
NWOKSYWIE (GDYNIA) NDB11.522°290
TOWOKSYWIE (GDYNIA) TACAN12.311°113.50
NETPRUSZCZ GDANSKI NDB12.7116°370
NOOKSYWIE (GDYNIA) NDB13.17°290
NOWOKSYWIE (GDYNIA) NDB14.3358°494
MLCEWICE NDB22275°311
MCEWICE NDB23.5274°423
TCWCEWICE TACAN24.6273°113.95
KMIDME26105°116.80
TMBMALBORK TACAN31.6118°117.10
NBMALBORK NDB32.3116°345
WICDME32.9291°108
GRUGRUDZIADZ VOR/DME52.6160°114.60

Departure and arrival routes

Transition altitude6500ft
SID end pointsdistanceoutbound heading
RW11
 NIKM2B26mi105°
 IRLU2B38mi167°
 DEXI2B37mi261°
 VIZA1B33mi288°
 VAPO2B34mi303°
RW29
 NIKM1H26mi105°
 IRLU2H38mi167°
 DEXI2H37mi261°
 VIZA1H33mi288°
 VAPO1H34mi303°

STAR starting pointsdistanceinbound heading
RW11
 RATO3R32.255°
 KOSE3R35.975°
 OGDA3R30.2132°
 NIKM3R26.0285°
 OSLO3R38.1335°
 IRLU3R38.0347°
RW29
 RATO3T32.255°
 KOSE3T35.975°
 OGDA3T30.2132°
 NIKM3T26.0285°
 OSLO3T38.1335°
 IRLU3T38.0347°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11GD803 (104°)GD803 5000ft
UVRIK (5mi, 104°) 3500ft
GD802 (4mi, 104°) 2500ft
 RNAVGD802 2500ft
GD801 (1mi, 104°) 2500ft
EPGD (6mi, 104°) 501ft
GD852 (16mi, 104°) 3000ft
RW29GD903 (284°)GD903 5000ft
IPLAM (5mi, 284°) 4000ft
GD402 (4mi, 284°) 3000ft
 RNAVGD402 3000ft
GD441 (1mi, 284°) 3000ft
EPGD (9mi, 284°) 538ft
GD443 (15mi, 284°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
IRLU3RGD841VHFleft148 (328)°1.0min timed230
IRLU3TGD903VHFleft199 (19)°1.0min timed230
IRLU3TGD933VHFleft176 (356)°1.0min timed230
KOSE3RGD811VHFright205 (25)°1.0min timed230
KOSE3TGD903VHFleft199 (19)°1.0min timed230
KOSE3TGD912VHFright254 (74)°1.0min timed230
NIKM3RNIKMIVHFright45 (225)°1.0min timed230
NIKM3TGD903VHFleft199 (19)°1.0min timed230
NIKM3TNIKMIVHFright45 (225)°1.0min timed230
OGDA3RGD823VHFleft318 (138)°1.0min timed230
OGDA3TGD903VHFleft199 (19)°1.0min timed230
OGDA3TGD926VHFleft306 (126)°1.0min timed230
OSLO3RGD841VHFleft148 (328)°1.0min timed230
OSLO3TGD903VHFleft199 (19)°1.0min timed230
OSLO3TGD933VHFleft176 (356)°1.0min timed230
RATO3RGD811VHFright205 (25)°1.0min timed230
RATO3TGD903VHFleft199 (19)°1.0min timed230
RATO3TGD912VHFright254 (74)°1.0min timed230
*) magnetic outbound (inbound) holding course
