Airports for X-Plane

Babimost - Zielona Gora Babimost

Airport details

CountryPoland
StateLubusz Voivodeship
RegionEP
AirspaceWarsaw Ctr
Municipalitygmina Babimost
Elevation192ft (59m)
TimezoneGMT +1
Coordinates52.13861, 15.79861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEPZG
IATA codeIEG
FAA coden/a

Communication

Zielona Gora Babimost ZIELONA GORA TOWER118.750
Zielona Gora Babimost POZNAN ApproachROACH129.025

Approach frequencies

ILS-cat-IRW24111.318.00mi
3° GSRW24111.318.00mi

Runway info

Runway 06 / 24
 length2493m (8179ft)
 bearing74° / 254°
 width60m (197ft)
 surfaceconcrete

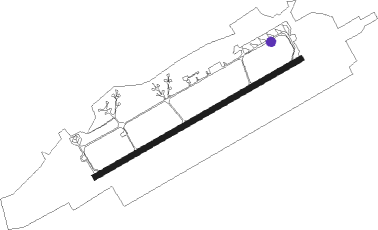

Airport layout - taxiway location 5


Taxiway locations

 3  4  5  6  7  8  A  E
Parking locations

 1  2  3  4  5  6  7  8
 9  9'

Nearby beacons

codeidentifierdistbearingfrequency
ZLGZIELONA GORA VOR/DME0.142°110.65
CMPCZEMPIN VOR/DME33.990°114.50
DREDME40.73°115.30

Departure and arrival routes

Transition altitude6500ft
STAR starting pointsdistanceinbound heading
ALL
 BARE1U, BARE3V11.7120°
 OBOL1U, OBOL2V15.5262°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06ZG421 (144°)ZG421 2500ft
ZG461 (8mi, 254°) 2000ft
ZG462 (5mi, 142°) 1800ft
 RNAVZG462 1800ft
ZG463 (4mi, 74°) 1200ft
EPZG (4mi, 74°) 244ft
ZG464 (6mi, 74°)
ZG421 (7mi, 281°) 2500ft
RW24ZG421 (144°)ZG421 2500ft
ZG422 (10mi, 74°) 2000ft
ZG423 (5mi, 143°) 1800ft
 RNAVZG423 1800ft
ZG424 (5mi, 254°) 1800ft
EPZG (6mi, 254°) 238ft
ZG426 (6mi, 254°)
ZG421 (8mi, 36°) 2500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BARE3VZLGNDBleft65 (245)°2500ft - 6000ft1.0min timed230
OBOL2VZLGNDBleft65 (245)°2500ft - 6000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
