Airports for X-Plane

Umeå - Umea

Airport details

CountrySweden
StateVästerbottens län
RegionES
AirspaceSweden Ctr
MunicipalityUmeå
Elevation22ft (7m)
TimezoneGMT +1
Coordinates63.79564, 20.27997
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESNU
IATA codeUME
FAA coden/a

Communication

Umea Club RDO118.075
Umea Tower119.800

Approach frequencies

ILS-cat-IRW14109.918.00mi
ILS-cat-IRW32110.718.00mi
3° GSRW14109.918.00mi
3° GSRW32110.718.00mi
Nearby Points of Interest:
Tegsgården
-
Residenset i Umeå
-
Ringstrandska villan
-
Scharinska villa
-
Moritzska gården
-
Aschanska Villa
-
Gamla Riksbankshuset, Umeå
-
Umeå rådhus
-
Tullkammaren
-
Seminariet, Umeå
-
Von Ahnska magasinet
-
Old House of Bank
-
Umeå City
-
Lieutenant Grahn's farm
-
Gamla slöjdskolan
-
Bagare Thillmans gård
-
Gamla lasarettet, Umeå
-
Umestan business park
-
Klabböle kraftverk
-
Umeå socken
-
Bredskärssund lower light
-
Norrforsen
-
Sävars socken
-
Hörnefors kyrka
-
Hörnefors socken

Runway info

Runway 14 / 32
 length2298m (7539ft)
 bearing117° / 297°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 61m (200ft)
 blast zone68m (223ft) / 57m (187ft)

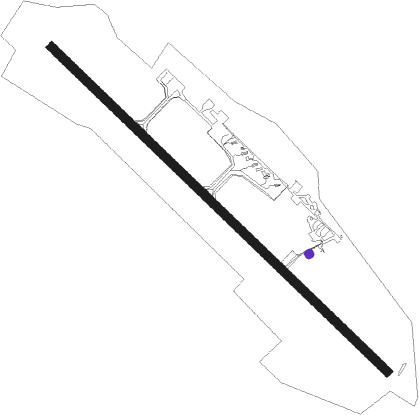

Airport layout - taxiway location D


Taxiway locations

 B  C  D
Parking locations

 Cargo  GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
UMEUMEA VOR/DME0.4143°114.10
WUUMEA NDB5.6118°329
VNAVANJA NDB11.6275°364
SKASKELLEFTEA VOR/DME54.144°113.40

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW14
 SOPL2K29mi46°
 GADE2K16mi117°
 DEDI6B, DEDI2K33mi162°
 TIND2K28mi260°
RW32
 SOPL2L29mi46°
 DEDI2L33mi162°
 TIND2C, TIND2L28mi260°

STAR starting pointsdistanceinbound heading
RW14
 LENS2E, LENS3S33.029°
 TIND3S27.680°
 KETE3S34.2246°
RW32
 LENS3T, LENS2F33.029°
 KETE3T34.2246°
 GADE3T16.4297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14OSDOK (116°)OSDOK 2900ft
NU850 (5mi, 116°) 2500ft
 RNAVNU850 2500ft
NU910 (4mi, 116°) 2500ft
ESNU (8mi, 116°) 75ft
(3936mi, 198°) 2500ft
(turn)
