Airports for X-Plane

Karlstad

Airport details

CountrySweden
StateVärmlanda län
RegionES
AirspaceSweden Ctr
MunicipalityKarlstads kommun
Elevation351ft (107m)
TimezoneGMT +1
Coordinates59.44472, 13.33750
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESOK
IATA codeKSD
FAA coden/a

Communication

Karlstad Tower119.450
Karlstad Dep119.450

Approach frequencies

ILS-cat-IRW21110.718.00mi
ILS-cat-IRW03109.3518.00mi
3° GSRW21110.718.00mi
3° GSRW03109.3518.00mi

Runway info

Runway 03L / 21R
 length660m (2165ft)
 bearing43° / 223°
 width52m (171ft)
 surfacegrass
Runway 03 / 21
 length2512m (8241ft)
 bearing43° / 223°
 width45m (148ft)
 surfaceasphalt

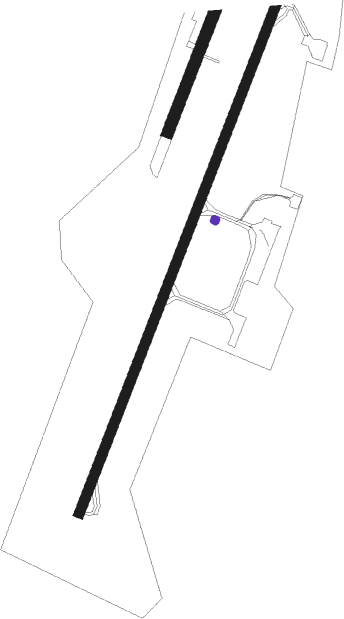

Airport layout - taxiway location N


Taxiway locations

 E  N  S
Parking locations

 Apron  Flying  South  Stand

Nearby beacons

codeidentifierdistbearingfrequency
KSDKARLSTAD VOR/DME0.2249°117.80
SKSKARLSTAD NDB4.5223°330
NKSKARLSTAD NDB5.843°341
ABHAGFORS NDB31.226°393
TYTORSBY NDB40.3335°384
HTHAGFORS NDB40.519°345
THTORSBY NDB50.8332°402
NSSKOVDE NDB58.9144°384
LGSATENAS NDB62.5212°309

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW03
 TESD4B32mi73°
 SIPS5B33mi216°
RW21
 TESD4C32mi73°
 SIPS5C33mi216°

STAR starting pointsdistanceinbound heading
RW03
 SIPS1K, SIPS5E33.336°
 TESD1K, TESD5E32.2253°
RW21
 SIPS1L, SIPS5F33.336°
 TESD5F, TESD1L32.2253°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03OK711 (8°)OK711 2500ft
SOVAS (5mi, 284°) 2500ft
RW03OK712 (43°)OK712 5000ft
SOVAS (4mi, 43°) 2500ft
RW03OK713 (65°)OK713 2500ft
SOVAS (5mi, 104°) 2500ft
 RNAVSOVAS 2500ft
OK710 (5mi, 43°) 2500ft
ESOK (7mi, 43°) 383ft
OK535 (6mi, 43°)
OK714 (10mi, 223°) 2500ft
OK714 (turn) 2500ft
RW21OK521 (188°)OK521 3300ft
NATVI (5mi, 104°) 2500ft
RW21OK522 (224°)OK522 3300ft
NATVI (3mi, 224°) 2500ft
RW21OK523 (245°)OK523 2500ft
NATVI (5mi, 284°) 2500ft
 RNAVNATVI 2500ft
OK520 (5mi, 224°) 2500ft
ESOK (7mi, 223°) 403ft
OK714 (5mi, 223°)
OK535 (10mi, 43°) 2500ft
OK535 (turn) 2500ft
