Airports for X-Plane

Borlange / Falun - Borlange

Airport details

CountrySweden
StateDalarnas län
RegionES
AirspaceSweden Ctr
MunicipalityBorlänge kommun
Elevation501ft (153m)
TimezoneGMT +1
Coordinates60.43012, 15.50556
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESSD
IATA codeBLE
FAA coden/a

Communication

Borlange Clearance128.800
Borlange Ground127.300
Borlange Tower127.300

Approach frequencies

ILS-cat-IRW32109.518.00mi
3° GSRW32109.518.00mi

Runway info

Runway 14 / 32
 length2315m (7595ft)
 bearing114° / 294°
 width45m (148ft)
 surfaceasphalt
Runway 12 / 30
 length720m (2362ft)
 bearing106° / 286°
 width50m (163ft)
 surfacegrass

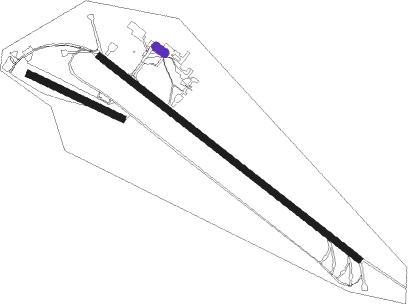

Airport layout - parking location Gate


Taxiway locations

 A  B
Parking locations

 Gate  Heli  Ramp  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
BORBORLANGE VOR/DME0.6122°117.60
LMBORLANGE NDB3.3117°397
BLBORLANGE NDB3.7292°421
SMMORA NDB38.9296°377

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW14
 NEWK2B21mi229°

STAR starting pointsdistanceinbound heading
RW32
 XOTB1F33.138°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14SD852 (100°)SD852 3700ft
SD854 (5mi, 61°) 3700ft
RW14SD853 (134°)SD853 3700ft
SD854 (5mi, 242°) 3700ft
 RNAVSD854 3700ft
SD850 (5mi, 114°) 3000ft
ESSD (8mi, 113°) 554ft
SD550 (5mi, 116°)
SD855 (9mi, 294°) 3100ft
SD855 (turn) 3100ft
RW32SD553 (316°)SD553 3700ft
SD551 (5mi, 62°) 3000ft
RW32SD554 (295°)SD554 3700ft
SD551 (4mi, 295°) 3000ft
RW32SD555 (281°)SD555 3700ft
SD551 (5mi, 242°) 3000ft
 RNAVSD551 3000ft
SD552 (4mi, 295°) 3000ft
ESSD (9mi, 295°) 543ft
SD851 (8mi, 293°)
SD556 (11mi, 114°) 3000ft
SD556 (turn) 3000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
