Visby
Airport details
| Country | Sweden |
| State | Gotlands län |
| Region | ES |
| Airspace | Sweden Ctr |
| Municipality | Gotland Municipality |
| Elevation | 164ft (50m) |
| Timezone | GMT +1 |
| Coordinates | 57.66278, 18.34611 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | ESSV |
| IATA code | VBY |
| FAA code | n/a |
Communication
| Visby Tower | 120.305 |
| Visby CON | 126.155 |
Approach frequencies
| ILS-cat-I | RW21 | 109.15 | 18.00mi |
| 3° GS | RW21 | 109.15 | 18.00mi |

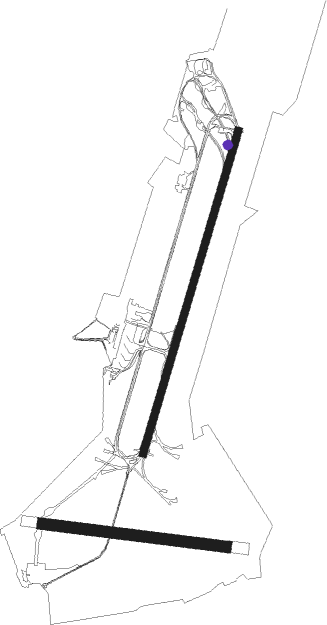

Runway info
Runway 03 / 21  | ||
| length | 2006m (6581ft) | |
| bearing | 36° / 216° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| Runway 10 / 28 | ||
| length | 1101m (3612ft) | |
| bearing | 96° / 276° | |
| width | 65m (213ft) | |
| surface | grass | |
| blast zone | 132m (433ft) / 138m (453ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VSB | VISBY VOR/DME | 0.1 | 167° | 115.10 |
| BGE | DME | 24.6 | 75° | 116.60 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW03 | |||
| KINT2K | 20mi | 245° | |
| ROGM2K | 34mi | 327° | |
| RW21 | |||
| KINT2C | 20mi | 245° | |
| HANS5C | 23mi | 295° | |
| ROGM2L | 34mi | 327° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW03 | |||
| KINT6E | 19.5 | 65° | |
| HANS6E | 22.7 | 115° | |
| ROGM2S | 33.7 | 147° | |
| GOTA2S | 35.0 | 191° | |
| RW21 | |||
| KINT3T | 19.5 | 65° | |
| HANS5F | 22.7 | 115° | |
| ROGM2T | 33.7 | 147° | |
| GOTA2T | 35.0 | 191° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | BAGLO (35°) | BAGLO 2200ft TUVIX (4mi, 35°) 2200ft |
| RW03 | DEMUS (355°) | DEMUS 2200ft TUVIX (5mi, 282°) 2200ft |
| RW03 | SOPAK (61°) | SOPAK 2200ft TUVIX (5mi, 102°) 2200ft |
| RNAV | TUVIX 2200ft SV736 (5mi, 35°) 2200ft ESSV (7mi, 35°) 190ft SV477 (5mi, 36°) SOPAK (17mi, 236°) SOPAK (turn) 2200ft | |
| RW21 | AGDIS (216°) | AGDIS 2200ft VEPAX (5mi, 216°) 1800ft |
| RW21 | EKMUN (243°) | EKMUN 2200ft VEPAX (5mi, 282°) 1800ft |
| RW21 | SV870 (172°) | SV870 2200ft VEPAX (5mi, 102°) 1800ft |
| RNAV | VEPAX 1800ft SV520 (5mi, 216°) 1800ft ESSV (6mi, 216°) 187ft SV735 (7mi, 215°) EKMUN (18mi, 55°) VEPAX (5mi, 282°) 1800ft VEPAX (turn) 1800ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| GOTA2S | SOPAK | VHF | right | 15 (195)° | > 2200ft | 1.0min timed | 210 |
| GOTA2T | VEPAX | VHF | right | 15 (195)° | > 1800ft | 1.0min timed | 230 |
| KINT3T | VEPAX | VHF | right | 15 (195)° | > 1800ft | 1.0min timed | 230 |
| ROGM2S | SOPAK | VHF | right | 15 (195)° | > 2200ft | 1.0min timed | 210 |
| ROGM2T | VEPAX | VHF | right | 15 (195)° | > 1800ft | 1.0min timed | 230 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
