West Palm Beach - North Palm Beach Co
Airport details
| Country | United States of America |
| State | Florida |
| Region | K7 |
| Airspace | Miami Oceanic Ctr |
| Municipality | Palm Beach County |
| Elevation | 20ft (6m) |
| Timezone | GMT -5 |
| Coordinates | 26.84696, -80.22195 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | F45 |
| IATA code | n/a |
| FAA code | F45 |
Communication
| North Palm Beach Co WX AWOS-3 | 119.975 |
| North Palm Beach Co CTAF/UNICOM | 123.075 |
| North Palm Beach Co PALM BEACH ApproachROACH | 128.300 |
| North Palm Beach Co PALM BEACH DepartureARTURE | 128.300 |
Approach frequencies
| ILS-cat-I | RW09R | 110.75 | 18.00mi |
| 3° GS | RW09R | 110.75 | 18.00mi |
Nearby Points of Interest:
Trapper Nelson Zoo Historic District
-Kelsey City City Hall
-Jupiter Inlet Historic and Archeological Site
-Northboro Park Historic District
-Old Northwood Historic District
-Pine Ridge Hospital
-Northwest Historic District
-Mickens House
-Old Palm Beach Junior College Building
-Clematis Street Historic Commercial District
-Grant Van Valkenburg House
-Comeau Building
-Alfred J. Comeau House
-Hatch's Department Store
-American National Bank Building
-Palm Beach Mercantile Company
-Ferndix Building
-Professional Building
-Guaranty Building
-Grandview Heights Historic District
-Royal Poinciana Way Historic District
-William Gray Warden House
-United States Post Office
-Paramount Theatre
-Clifton Rice House

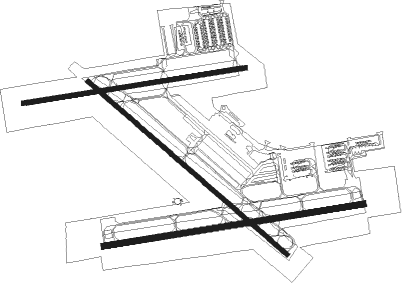

Runway info
Runway 9R / 27L  | ||
| length | 1308m (4291ft) | |
| bearing | 86° / 266° | |
| width | 30m (100ft) | |
| surface | asphalt | |
| Runway 14 / 32 | ||
| length | 1312m (4304ft) | |
| bearing | 132° / 312° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| Runway 9L / 27R | ||
| length | 1120m (3675ft) | |
| bearing | 86° / 266° | |
| width | 23m (75ft) | |
| surface | grass | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| UTX | UNITED NDB | 7.1 | 299° | 405 |
| PBI | PALM BEACH VORTAC | 12.3 | 141° | 115.70 |
| PHK | PAHOKEE VOR/DME | 25.4 | 262° | 115.40 |
| FPR | FORT PIERCE NDB | 39.2 | 347° | 275 |
| FX | PRAIZ (FT LAUDERDALE) NDB | 39.9 | 187° | 221 |
| FLL | FORT LAUDERDALE VOR/DME | 46.5 | 176° | 114.40 |
| TRV | TREASURE (VERO BEACH) VORTAC | 51.9 | 342° | 117.30 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW09R | |||
| SHRVY1 | 42.2 | 86° | |
| FEBAD1 | 28.0 | 95° | |
| TTYLR1 | 40.5 | 97° | |
| CLMNT1 | 30.2 | 227° | |
| RW14 | |||
| SHRVY1 | 42.2 | 86° | |
| FEBAD1 | 28.0 | 95° | |
| TTYLR1 | 40.5 | 97° | |
| CLMNT1 | 30.2 | 227° | |
| RW27L | |||
| SHRVY1 | 42.2 | 86° | |
| FEBAD1 | 28.0 | 95° | |
| TTYLR1 | 40.5 | 97° | |
| CLMNT1 | 30.2 | 227° | |
| RW32 | |||
| SHRVY1 | 42.2 | 86° | |
| FEBAD1 | 28.0 | 95° | |
| TTYLR1 | 40.5 | 97° | |
| CLMNT1 | 30.2 | 227° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09R | YIGBO (85°) | YIGBO 2500ft |
| RNAV | YIGBO 2500ft AZCID (8mi, 86°) 1600ft XEJZI (3mi, 86°) 500ft F45 (2mi, 78°) 64ft (4882mi, 109°) 1700ft YIGBO (4894mi, 288°) 2500ft YIGBO (turn) | |
| RW14 | PHK (82°) | PHK WYNER (16mi, 59°) 1500ft SPOUN (5mi, 60°) 1500ft |
| RW14 | YATUR (132°) | YATUR WUSIX (13mi, 131°) 1800ft SPOUN (5mi, 131°) 1500ft |
| RNAV | SPOUN 1500ft ZETAP (6mi, 132°) 1500ft UYORA (3mi, 132°) 640ft F45 (2mi, 130°) 72ft (4882mi, 109°) 324ft YADUD (4878mi, 288°) WOPDU (9mi, 64°) 2300ft WOPDU (turn) | |
| RW27L | WOPDU (267°) | WOPDU 2300ft |
| RNAV | WOPDU 2300ft ULNOY (6mi, 266°) 1500ft ZOGVO (2mi, 266°) 720ft F45 (3mi, 271°) 61ft (4882mi, 109°) 341ft YIGBO (4894mi, 288°) 2500ft YIGBO (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| CLMNT1 | AYBID | VHF | right | 30 (210)° | DME 10.0mi | ICAO rules | |
| CLMNT1 | CLMNT | VHF | left | 30 (210)° | DME 10.0mi | ICAO rules | |
| CLMNT1 | SLUES | VHF | left | 30 (210)° | DME 10.0mi | ICAO rules | |
| SHRVY1 | GAWKS | VHF | left | 287 (107)° | DME 15.0mi | ICAO rules | |
| SHRVY1 | HORUT | VHF | right | 349 (169)° | DME 10.0mi | ICAO rules | |
| SHRVY1 | MOLIE | VHF | right | 349 (169)° | DME 10.0mi | ICAO rules | |
| SHRVY1 | RACNO | VHF | right | 316 (136)° | DME 10.0mi | ICAO rules | |
| SHRVY1 | ROKSY | VHF | left | 273 (93)° | DME 10.0mi | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
