Airports for X-Plane

West Palm Beach - North Palm Beach Co

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityPalm Beach County
Elevation20ft (6m)
TimezoneGMT -5
Coordinates26.84696, -80.22195
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeF45
IATA coden/a
FAA codeF45

Communication

North Palm Beach Co WX AWOS-3119.975
North Palm Beach Co CTAF/UNICOM123.075
North Palm Beach Co PALM BEACH ApproachROACH128.300
North Palm Beach Co PALM BEACH DepartureARTURE128.300

Approach frequencies

ILS-cat-IRW09R110.7518.00mi
3° GSRW09R110.7518.00mi

Runway info

Runway 9R / 27L
 length1308m (4291ft)
 bearing86° / 266°
 width30m (100ft)
 surfaceasphalt
Runway 14 / 32
 length1312m (4304ft)
 bearing132° / 312°
 width23m (75ft)
 surfaceasphalt
Runway 9L / 27R
 length1120m (3675ft)
 bearing86° / 266°
 width23m (75ft)
 surfacegrass

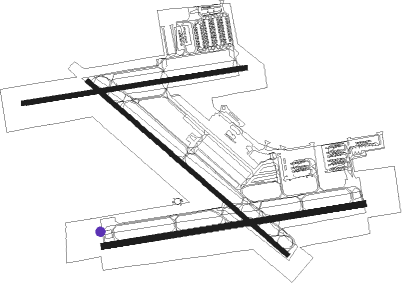

Airport layout - taxiway location L


Taxiway locations

 13  26L  31  C  D  E  F  F1
 G1  J  K  L  M  N  O  P
 Q  R  S
Parking locations

 Heli  Signature  Tie-Down

Nearby beacons

codeidentifierdistbearingfrequency
UTXUNITED NDB7.1299°405
PBIPALM BEACH VORTAC12.3141°115.70
PHKPAHOKEE VOR/DME25.4262°115.40
FPRFORT PIERCE NDB39.2347°275
FXPRAIZ (FT LAUDERDALE) NDB39.9187°221
FLLFORT LAUDERDALE VOR/DME46.5176°114.40
TRVTREASURE (VERO BEACH) VORTAC51.9342°117.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
RW09R
 SHRVY142.286°
 FEBAD128.095°
 TTYLR140.597°
 CLMNT130.2227°
RW14
 SHRVY142.286°
 FEBAD128.095°
 TTYLR140.597°
 CLMNT130.2227°
RW27L
 SHRVY142.286°
 FEBAD128.095°
 TTYLR140.597°
 CLMNT130.2227°
RW32
 SHRVY142.286°
 FEBAD128.095°
 TTYLR140.597°
 CLMNT130.2227°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09RYIGBO (85°)YIGBO 2500ft
 RNAVYIGBO 2500ft
AZCID (8mi, 86°) 1600ft
XEJZI (3mi, 86°) 500ft
F45 (2mi, 78°) 64ft
(4882mi, 109°) 1700ft
YIGBO (4894mi, 288°) 2500ft
YIGBO (turn)
RW14PHK (82°)PHK
WYNER (16mi, 59°) 1500ft
SPOUN (5mi, 60°) 1500ft
RW14YATUR (132°)YATUR
WUSIX (13mi, 131°) 1800ft
SPOUN (5mi, 131°) 1500ft
 RNAVSPOUN 1500ft
ZETAP (6mi, 132°) 1500ft
UYORA (3mi, 132°) 640ft
F45 (2mi, 130°) 72ft
(4882mi, 109°) 324ft
YADUD (4878mi, 288°)
WOPDU (9mi, 64°) 2300ft
WOPDU (turn)
RW27LWOPDU (267°)WOPDU 2300ft
 RNAVWOPDU 2300ft
ULNOY (6mi, 266°) 1500ft
ZOGVO (2mi, 266°) 720ft
F45 (3mi, 271°) 61ft
(4882mi, 109°) 341ft
YIGBO (4894mi, 288°) 2500ft
YIGBO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CLMNT1AYBIDVHFright30 (210)°DME 10.0miICAO rules
CLMNT1CLMNTVHFleft30 (210)°DME 10.0miICAO rules
CLMNT1SLUESVHFleft30 (210)°DME 10.0miICAO rules
SHRVY1GAWKSVHFleft287 (107)°DME 15.0miICAO rules
SHRVY1HORUTVHFright349 (169)°DME 10.0miICAO rules
SHRVY1MOLIEVHFright349 (169)°DME 10.0miICAO rules
SHRVY1RACNOVHFright316 (136)°DME 10.0miICAO rules
SHRVY1ROKSYVHFleft273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
