Airports for X-Plane

Cape Town - Cape Town Intl

Airport details

CountrySouth Africa
StateWestern Cape
RegionFA
AirspaceCape Town Ctr
MunicipalityCity of Cape Town
Elevation146ft (45m)
TimezoneGMT +2
Coordinates-33.97652, 18.59783
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFACT
IATA codeCPT
FAA coden/a

Communication

Cape Town Intl ATIS127.000
Cape Town Intl Ground Control121.900
Cape Town Intl Tower118.100
Cape Town Intl ApproachROACH119.700
Cape Town Intl DepartureARTURE119.700

Approach frequencies

ILS-cat-IIRW01110.318.00mi
ILS-cat-IIRW19109.118.00mi
3.2° GSRW19109.118.00mi
3° GSRW01110.318.00mi
Nearby Points of Interest:
Rondebosch Common
-
Groote Schuur Hospital
-
Cape Town City Hall
-
Rust en Vreugd
-
Tuynhuys
-
National Library of South Africa
-
Martin Melck House
-
Huguenot Memorial Building
-
Table Mountain
-
Cape Floristic Region
-
Boschendal

Runway info

Runway 01 / 19
 length3210m (10531ft)
 bearing342° / 162°
 width61m (200ft)
 surfaceasphalt
 blast zone59m (194ft) / 60m (197ft)
Runway 16 / 34
 length1703m (5587ft)
 bearing130° / 310°
 width46m (151ft)
 surfaceasphalt

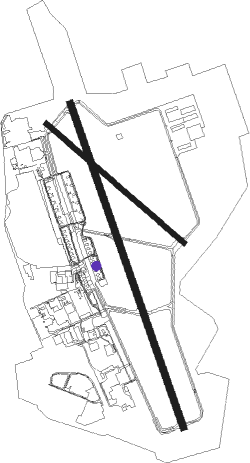

Airport layout - parking location B6


Taxiway locations

 A1  A2  B1  B2  B3  C1  D2  D3
 D4  D5  E1  G2  H  L  M  T
 Z
Parking locations

 A10  A11  A12  A13  A14  A15  A16  A17
 A3  A4  A5  A6  A7  A8  A9  ACSA
 B1  B10  B11  B12  B13  B14  B15  B16
 B17  B18  B19  B2  B20  B21  B22  B23
 B24  B25  B26  B27  B28  B29  B3  B30
 B4  B5  B6  B7  B8  B9  C1  C2
 C3  C4  C5  Execujet  GA  SAA  SAAF  Thunder

Nearby beacons

codeidentifierdistbearingfrequency
CTVCAPE TOWN VOR/DME0.546°115.70
CBCAPE TOWN NDB6.1346°462
RIVROBBEN ISLAND VOR/DME15.7307°117.60
SVVSOMERSVELD VOR44351°113
CDVCALEDON VOR44.599°114.90
WCWORCESTER NDB44.969°335
CSVCERES VOR/DME60.449°114.20
LWVLANGEBAANWEG VOR/DME63.5336°117
LWLANGEBAANWEG NDB63.8336°345

Departure and arrival routes

Transition altitude7500ft
SID end pointsdistanceoutbound heading
RW01
 KODE1A51mi11°
 TETA1C45mi69°
 OKTE1A50mi104°
 IMSO1A29mi274°
RW19
 KODE1B51mi11°
 TETA1A, TETA1B45mi69°
 OKTE1B, OKTE1C50mi104°
 IMSO1B29mi274°

STAR starting pointsdistanceinbound heading
RW01
 ASPI1A24.375°
 EVUK1A50.1163°
 ERDA1A44.8226°
 GETE1A50.2275°
RW19
 ASPI1B24.375°
 EVUK1B50.1163°
 ERDA1B44.8226°
 GETE1B50.2275°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01-YOKLEM (229°)OKLEM 4500ft
CT524 (6mi, 215°)
CT522 (14mi, 200°)
 RNAVCT522
CT520 (2mi, 221°) 3000ft
CT500 (5mi, 287°) 1160ft
FACT (4mi, 336°) 205ft
CT402 (3mi, 350°)
CT406 (7mi, 311°)
RIV (6mi, 285°) 6100ft
RIV (turn) 6100ft
RW01-ZRIV (127°)RIV 6100ft
CT534 (12mi, 159°) 6100ft
CT532 (5mi, 159°) 4700ft
CT530 (5mi, 122°) 3400ft
 RNAVCT530 3400ft
CT528 (2mi, 82°) 3000ft
CT500 (5mi, 31°) 1160ft
FACT (4mi, 336°) 205ft
CT402 (3mi, 350°)
CT406 (7mi, 311°)
RIV (6mi, 285°) 6100ft
RIV (turn) 6100ft
RW01EKBEV (16°)EKBEV 6100ft
CT1T1 (7mi, 78°) 3700ft
RW01IBGEL (341°)IBGEL 6100ft
CT1T1 (7mi, 342°) 3700ft
RW01UTIRO (309°)UTIRO 6500ft
CT1T1 (7mi, 258°) 3700ft
 RNAVCT1T1 3700ft
CT1F1 (6mi, 342°) 1800ft
CT1SD (2mi, 342°) 1030ft
FACT (3mi, 335°) 205ft
FACT (turn) 560ft
CT1M1 (3mi, 351°)
RIV (14mi, 300°)
CT1M2 (11mi, 199°) 6100ft
EKBEV (18mi, 135°) 6100ft
EKBEV (turn) 6100ft
RW19-ZAPKUV (273°)APKUV 9000ft
CT418 (9mi, 295°) 9000ft
CT416 (8mi, 321°) 7500ft
CT414 (8mi, 280°)
CT412 (4mi, 243°)
RW19-ZOKLEM (229°)OKLEM 4500ft
CT422 (2mi, 236°)
CT414 (3mi, 243°)
CT412 (4mi, 243°)
 RNAVCT412
CT410 (3mi, 243°) 3000ft
CT408 (4mi, 243°) 1820ft
CT402 (2mi, 206°) 1000ft
FACT (3mi, 170°) 212ft
CT426 (4mi, 156°)
CT428 (7mi, 260°)
CT430 (7mi, 350°)
CT432 (3mi, 335°)
RIV (7mi, 320°) 6100ft
RIV (turn) 6100ft
RW19NESIK (191°)NESIK 6000ft
CT2T1 (6mi, 258°) 4500ft
RW19OKLAS (164°)OKLAS 6000ft
CT2T1 (6mi, 163°) 4500ft
RW19UTREV (138°)UTREV 6100ft
CT2T1 (6mi, 78°) 4500ft
 RNAVCT2T1 4500ft
CT2F1 (6mi, 162°) 2700ft
CT2SD (3mi, 162°) 1550ft
FACT (5mi, 167°) 212ft
FACT (turn) 560ft
CT2M1 (14mi, 161°) 4330ft
CT2M2 (11mi, 258°)
UTREV (29mi, 355°) 6100ft
UTREV (turn) 6100ft
RW34-ZOKLEM (229°)OKLEM 4500ft
CT524 (6mi, 215°)
CT606 (10mi, 200°)
 RNAVCT606
CT604 (turn) 3000ft
CT602 (5mi, 264°) 1150ft
FACT (3mi, 300°) 201ft
CT612 (2mi, 326°)
CT614 (2mi, 334°)
CT616 (turn)
CT618 (5mi, 318°)
RIV (7mi, 283°) 6100ft
RIV (turn) 6100ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASPI1AASPIKVHFleft275 (95)°15000ft - 46000ft1.5min timedICAO rules
ASPI1BASPIKVHFleft275 (95)°15000ft - 46000ft1.5min timedICAO rules
ERDA1AERDASVHFright65 (245)°15000ft - 46000ft1.5min timedICAO rules
ERDA1BERDASVHFright65 (245)°15000ft - 46000ft1.5min timedICAO rules
EVUK1ARIVNDBright315 (135)°15000ft - 46000ft1.5min timedICAO rules
GETE1AGETENVHFright120 (300)°15000ft - 46000ft1.5min timedICAO rules
GETE1BGETENVHFright120 (300)°15000ft - 46000ft1.5min timedICAO rules
RIV4CRIVNDBright315 (135)°15000ft - 46000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
