Airports for X-Plane

Johannesburg - O. R. Tambo Intl

Airport details

CountrySouth Africa
StateGauteng
RegionFA
AirspaceJohannesburg Ctr
MunicipalityCity of Ekurhuleni Metropolitan Municipa
Elevation5558ft (1694m)
TimezoneGMT +2
Coordinates-26.11059, 28.24236
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFAOR
IATA coden/a
FAA coden/a

Communication

O. R. Tambo Intl ATIS126.200
O. R. Tambo Intl Clearance DEL121.900
O. R. Tambo Intl Ground Control121.700
O. R. Tambo Intl Tower East118.600
O. R. Tambo Intl Approach123.700
O. R. Tambo Intl Approach124.500
O. R. Tambo Intl Departure121.400

Approach frequencies

ILS-cat-IIRW21L109.918.00mi
ILS-cat-IIRW21R110.918.00mi
ILS-cat-IIRW03R109.118.00mi
ILS-cat-IIRW03L110.318.00mi
3° GSRW21L109.918.00mi
3° GSRW21R110.918.00mi
3° GSRW03R109.118.00mi
3° GSRW03L110.318.00mi

Runway info

Runway 03L / 21R
 length4437m (14557ft)
 bearing17° / 197°
 width61m (200ft)
 surfaceasphalt
 displ threshold0m (0ft) / 448m (1470ft)
 blast zone118m (387ft) / 62m (203ft)
Runway 03R / 21L
 length3416m (11207ft)
 bearing17° / 197°
 width61m (200ft)
 surfaceasphalt
 displ threshold8m (26ft) / 0m (0ft)
 blast zone57m (187ft) / 58m (190ft)

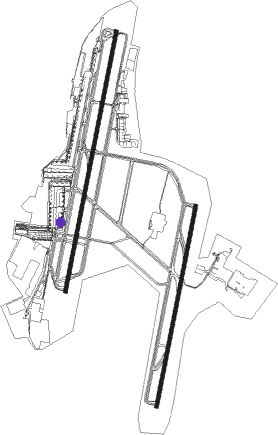

Airport layout - parking location B11


Taxiway locations

 A  B  C  D  E  H  I  J
 L  N  Q  RR  RS  T  V3  Y
Parking locations

 A1  A10  A11  A12  A13  A1R  A2  A4
 A5  A6  A7  A8  A9  Airlink  B1  B10
 B11  B12  B13  B2  B3  B5  B7  B8
 B9  C1  C10  C11  C12  C13  C14  C15
 C16  C17  C18  C19  C2  C20  C21  C22
 C23  C24  C3  C4  C5  C6  C7  C8
 C9  Cargo  D10  D25  D28  D34  D48  D5A
 Denel  E1  E13  E3  E5  E9  F1  Federal
 FlySafair  G1  G3  G5  G6  G7  Hangar  Heli
 Safair  Solenta  South

Nearby beacons

codeidentifierdistbearingfrequency
JSVJOHANNESBURG VOR/DME2.8194°115.20
GCGRAND CENTRAL NDB8.9319°372
RAVRAND (JOHANNESBURG) VOR/DME9.3213°117.70
RDRAND (JOHANNESBURG) NDB14.7217°307
WKVWATERKLOOF VOR/DME16.6355°116.90
RARAND NDB18.8176°337
LIVLANSERIA VOR/DME20.2296°117.40
LALANSERIA NDB22.5284°270
MEVBRONKHORSTSPRUIT VOR/DME25.745°114.30
DPVWONDERBOOM VOR/DME27.3357°112.20
WBWONDERBOOM (PRETORIA) NDB27.47°257
WRWONDERBOOM (PRETORIA) NDB27.4360°230
CZVZONDERWATER VOR/DME30.236°114.30
VVVEREENIGING NDB31.4212°460
HGVHEIDELBERG VOR35.2176°116.70
GAVGRASMERE VOR38.9234°115.50
STVSTANDERTON VOR48.6133°116
WIVWITBANK VOR54.174°113.30
RGRUSTENBURG NDB58.7296°452

Departure and arrival routes

Transition altitude8000ft
SID end pointsdistanceoutbound heading
RW03 (ALL)
 EXOB1A49mi86°
 OVAL1A47mi151°
 GAV5B39mi234°
 RAGU3A41mi243°
 VASU3A38mi327°
 NESA1A37mi349°
RW03L
 EGME1C, EGME2A48mi57°
 APDA1B, APDA3A51mi119°
RW21 (ALL)
 EXOB3B49mi86°
 OVAL1B47mi151°
 HGV5D35mi176°
 RAGU3B41mi243°
 VASU3B38mi327°
RW21R
 EGME1D, EGME2B48mi57°
 APDA1D, APDA2B51mi119°
 GERO1C82mi155°
 GAV6C39mi234°
 LIV1C38mi327°

STAR starting pointsdistanceinbound heading
RW03 (ALL)
 NIBE2A, NIBE1B52.739°
 AVAG1C, AVAG2A49.0116°
 OKPI4A47.4218°
 WIV4A54.1254°
 STV1C, STV6A48.6313°
 AVIL1B, AVIL1A58.3331°
RW21 (ALL)
 NIBE2C, NIBE1D52.739°
 AVAG2B, AVAG1D49.0116°
 OKPI4B47.4218°
 WIV3C54.1254°
 STV5B, STV1D48.6313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03RETLIG (356°)ETLIG
JS2T1 (10mi, 283°)
RW03RSUPON (15°)SUPON
JS2T1 (5mi, 17°)
RW03RVEKOP (34°)VEKOP
JS2T1 (10mi, 103°)
 RNAVJS2T1
JS2F1 (23mi, 17°) 8000ft
JS2MP (8mi, 17°) 5570ft
JS2M1 (11mi, 17°)
JS2M2 (11mi, 104°)
JS017 (30mi, 198°)
ETLIG (11mi, 195°)
RW21LETGAV (234°)ETGAV
JS3T1 (8mi, 284°)
RW21LNIGOS (201°)NIGOS
JS3T1 (5mi, 197°)
RW21LUVLOG (166°)UVLOG
JS3T1 (8mi, 104°)
 RNAVJS3T1
JS3F1 (6mi, 197°) 8000ft
JS3MP (8mi, 197°) 5547ft
JS3M1 (10mi, 197°) 8000ft
JS3M2 (13mi, 104°)
ETGAV (24mi, 3°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVAG1CAVAGOVHFleft320 (140)°11000ft - 28000ftDME 13.0miICAO rules
AVAG1DAVAGOVHFleft320 (140)°11000ft - 28000ftDME 13.0miICAO rules
AVAG2AAVAGOVHFleft320 (140)°11000ft - 28000ftDME 13.0miICAO rules
AVAG2BAVAGOVHFleft320 (140)°11000ft - 28000ftDME 13.0miICAO rules
OKPI4AOKPITVHFleft51 (231)°15000ft - 28000ft1.5min timedICAO rules
OKPI4BOKPITVHFleft51 (231)°15000ft - 28000ft1.5min timedICAO rules
WIV3CWIVNDBleft81 (261)°15000ft - 28000ft1.5min timedICAO rules
WIV4AWIVNDBleft81 (261)°15000ft - 28000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
