Airports for X-Plane

Brazzaville - Maya Maya

Airport details

CountryCongo
StatePool Department
RegionFC
AirspaceBrazzaville Ctr
MunicipalityBrazzaville
Elevation1046ft (319m)
TimezoneGMT +1
Coordinates-4.25050, 15.25150
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFCBB
IATA codeBZV
FAA coden/a

Communication

Maya Maya Tower118.700
Maya Maya Approach121.100
Maya Maya Departure118.700

Approach frequencies

ILS-cat-IRW05111.718.00mi
3° GSRW05111.718.00mi

Runway info

Runway 05 / 23
 length3311m (10863ft)
 bearing50° / 230°
 width45m (148ft)
 surfaceasphalt
 blast zone57m (187ft) / 59m (194ft)

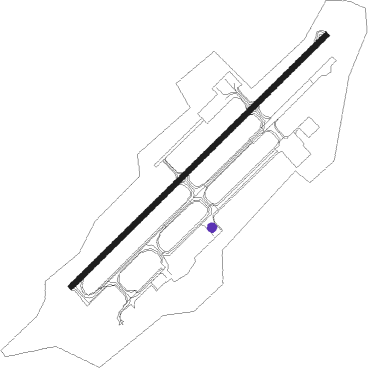

Airport layout - parking location GA3


Taxiway locations

 A  B  C  E  F  G  M1  M2
 T
Parking locations

 Cargo1  Cargo3  GA1  GA2  GA3  Gate  Gate2  Gate3
 Gate4  Gate5  Gate6  Gate7

Nearby beacons

codeidentifierdistbearingfrequency
BZBRAZZAVILLE VOR/DME0.2258°113.10
KSAKINSHASA VOR/DME13.5132°115
OKN'DJILI INTL (KINSHASA) NDB16.6109°340

Departure and arrival routes

Transition altitude4500ft
Transition level5000ft
SID end pointsdistanceoutbound heading
RW05
 KSA4B14mi132°

STAR starting pointsdistanceinbound heading
ALL
 RAPU3V83.317°
 SEMO2V101.780°
 POGL2V77.6129°
 ODRA2V77.0145°
 NAMO2V146.9172°
 MENA2V76.5185°
 LIKE2V76.6201°
 KSA3V13.5312°
RW05
 RAPU1L83.317°
 SEMO1T101.780°
 POGL1P77.6129°
 ODRA1P77.0145°
 NAMO1P146.9172°
 MENA1P76.5185°
 LIKE1P76.6201°
 KIRG2V84.6252°
 IKRO2V87.9269°
 KSA1L13.5312°
RW23
 SEMO1U101.780°
 POGL1U77.6129°
 ODRA1U77.0145°
 NAMO1M146.9172°
 MENA1M, MENA1U76.5185°
 LIKE1M, LIKE1U76.6201°
 KIRG1M84.6252°
 IKRO1A87.9269°
 KSA1A13.5312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05DIPVA (73°)DIPVA 4000ft
TANIS (5mi, 140°) 4000ft
RW05NAPUX (27°)NAPUX 4000ft
TANIS (5mi, 320°) 4000ft
 RNAVTANIS 4000ft
BB501 (5mi, 50°) 3000ft
FCBB (7mi, 50°) 1077ft
BB502 (4mi, 50°)
DIPVA (17mi, 248°) 4000ft
DIPVA (turn) 4000ft
RW23BILEV (206°)BILEV 4000ft
GUGUS (5mi, 140°) 4000ft
RW23RASUK (254°)RASUK 4000ft
GUGUS (5mi, 320°) 4000ft
 RNAVGUGUS 4000ft
BB503 (5mi, 230°) 3000ft
FCBB (7mi, 230°) 1101ft
BB504 (4mi, 230°)
BILEV (17mi, 32°) 4000ft
BILEV (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LIKE1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
LIKE1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
MENA1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
MENA1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
NAMO1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
ODRA1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
ODRA1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
POGL1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
POGL1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
RAKO1PPONUSVHFleft262 (82)°4500ft - 12000ftDME 5.0mi230
RAKO1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
SEMO1UUBALAVHFright357 (177)°4500ft - 12000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
