Airports for X-Plane

Douala - Douala Intl.

Airport details

CountryCameroon
StateLittoral
RegionFK
AirspaceBrazzaville Ctr
MunicipalityDouala II
Elevation33ft (10m)
TimezoneGMT +1
Coordinates4.01882, 9.70918
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFKKD
IATA codeDLA
FAA coden/a

Communication

Douala Intl. Douala Tower119.700
Douala Intl. Douala Approach125.100
Douala Intl. Douala Departure125.100

Approach frequencies

ILS-cat-IRW30110.318.00mi
3° GSRW30110.318.00mi
Nearby Points of Interest:
Port autonome de Douala
-
Palace of Justice of Douala
-
Central post office in Douala
-
Bessengue train station
-
Douala bridge
-
Port négrier de Bimbia

Runway info

Runway 12 / 30
 length2853m (9360ft)
 bearing117° / 297°
 width40m (131ft)
 surfaceasphalt
 blast zone78m (256ft) / 50m (164ft)

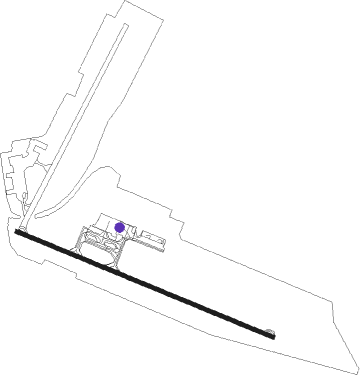

Airport layout - parking location B2


Taxiway locations

 B  E
Parking locations

 A3  A4  A5  B1  B2  B3  C1  C2
 C3  C4  C5  C6  C7  Mil  New  Presidential
 Storage

Nearby beacons

codeidentifierdistbearingfrequency
DLADOUALA VOR/DME2.5126°112.90
DEEDEA NDB29.1118°362
PAMALABO NDB51.4248°342
MBOMALABO VOR/DME61.1256°114.50

Departure and arrival routes

Transition altitude2200ft
SID end pointsdistanceoutbound heading
RW12
 EDEB1E, EDEB1N112mi99°
 MBO1W61mi256°

STAR starting pointsdistanceinbound heading
ALL
 MBO2V61.176°
 TI1V21.5101°
 KOKA1V29.5163°
 BIGO1V115.8213°
 EDEB1V27.4281°
 ETNO1V110.5326°
 BT1V127.0357°
RW12
 BILO1M40.036°
 ERPI1M39.175°
 MBO2M61.176°
 TI1M21.5101°
 KOKA1A, KOKA1M29.5163°
 BIGO1M115.8213°
 ONIL1A29.9216°
 EDEB1M112.0279°
 IRAN1M32.5325°
 ETNO1M110.5326°
 NATE1M32.1343°
 SIBI1M31.8355°
 BT1M127.0357°
RW30
 BILO1L40.036°
 ERPI1L39.175°
 MBO2D61.176°
 TI1D21.5101°
 KOKA1R, KOKA1D29.5163°
 BIGO1D115.8213°
 ONIL1R29.9216°
 DE1D112.0279°
 IRAN1K, IRAN1L32.5325°
 ETNO1D, ETN1DB110.5326°
 NATE1L, NATE1K32.1343°
 SIBI1K, SIBI1L31.8355°
 BT1D127.0357°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12ARBOX (140°)ARBOX
KD501 (5mi, 207°)
RW12MINRO (90°)MINRO
KD501 (5mi, 27°)
 RNAVKD501
KD502 (5mi, 117°) 2000ft
FKKD (6mi, 113°) 84ft
FKKD (turn) 440ft
KD503 (5mi, 121°)
SERUR (15mi, 214°)
RW30KEREM (298°)KEREM
KD504 (5mi, 297°)
RW30LIPEV (320°)LIPEV
KD504 (5mi, 27°)
RW30RINAP (277°)RINAP
KD504 (5mi, 207°)
 RNAVKD504
KD506 (5mi, 297°) 2000ft
FKKD (8mi, 300°) 64ft
FKKD (turn) 440ft
KD507 (3mi, 290°)
NURES (14mi, 199°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BIGO1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
BIGO1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
BIGO1VDLANDBright298 (118)°2200ft - 8000ft1.0min timed230
BT1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
BT1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
DE1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
EDEB1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
ETN1DBDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
ETNO1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
ETNO1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
KOKA1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
KOKA1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
MBO2DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
MBO2MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
TI1DDISDOVHFleft118 (298)°2200ft - 8000ftDME 5.0mi230
TI1MMOKALVHFright298 (118)°2200ft - 8000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
