Livingstone - Harry Mwanga Nkumbula
Airport details
| Country | Zambia |
| State | Southern Province |
| Region | FL |
| Airspace | Lusaka Ctr |
| Municipality | Livingstone |
| Elevation | 3301ft (1006m) |
| Timezone | GMT +2 |
| Coordinates | -17.82136, 25.81708 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | FLHN |
| IATA code | LVI |
| FAA code | n/a |
Communication
| Harry Mwanga Nkumbula Tower | 118.100 |
| Harry Mwanga Nkumbula Approach | 124.300 |

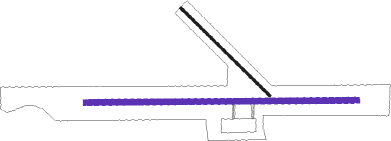

Runway info
| Runway 10 / 28 | ||
| length | 2997m (9833ft) | |
| bearing | 94° / 274° | |
| width | 60m (197ft) | |
| surface | asphalt | |
| blast zone | 68m (223ft) / 0m (0ft) | |
Runway 15 / 33  | ||
| length | 1377m (4518ft) | |
| bearing | 138° / 318° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| displ threshold | 74m (243ft) / 0m (0ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VLI | HARRY NKUMBULA VOR/DME | 0.5 | 19° | 112.50 |
| LZ | HARRY NKUMBULA NDB | 1.2 | 274° | 308 |
| FO | VICTORIA FALLS NDB | 15.3 | 193° | 256 |
| VFA | VICTORIA FALLS VOR/DME | 16.1 | 181° | 116.70 |
| KAV | KASANE VOR/DME | 37 | 269° | 113.30 |
| KAS | KASANE NDB | 37.7 | 270° | 287 |
| MT | MATETSI NDB | 41.5 | 172° | 260 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW10 | |||
| APMI1A | 92mi | 47° | |
| AXOS1A | 110mi | 128° | |
| EKBE1A | 30mi | 229° | |
| APMA1A | 50mi | 313° | |
| RW28 | |||
| APMI1B | 92mi | 47° | |
| AXOS1B | 110mi | 128° | |
| EKBE1B | 30mi | 229° | |
| APMA1B | 50mi | 313° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW10 | |||
| FA1A | 15.2 | 12° | |
| EXOB1A | 29.5 | 49° | |
| AVOM1A | 50.5 | 227° | |
| RW28 | |||
| FA1B | 15.2 | 12° | |
| EXOB1B | 29.5 | 49° | |
| AMBI1B | 85.6 | 104° | |
| AVOM1B | 50.5 | 227° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW10 | APKIM (120°) | APKIM 6300ft AVOKI (5mi, 184°) 6300ft |
| RW10 | ATUSO (94°) | ATUSO 6300ft AVOKI (5mi, 94°) 6300ft |
| RW10 | EGSUS (68°) | EGSUS 6300ft AVOKI (5mi, 4°) 6300ft |
| RNAV | AVOKI 6300ft AXALI (5mi, 94°) 4800ft FLHN (5mi, 94°) 3305ft AXATI (5mi, 90°) 4800ft APKIM (16mi, 291°) 5000ft APKIM (turn) | |
| RW28 | APKER (250°) | APKER 6300ft AVORO (5mi, 195°) 6300ft |
| RW28 | APKOM (274°) | APKOM 6300ft AVORO (5mi, 274°) 6300ft |
| RW28 | AVIDU (298°) | AVIDU 6300ft AVORO (5mi, 354°) 6300ft |
| RNAV | AVORO 6300ft AXAMA (5mi, 274°) 4800ft FLHN (5mi, 274°) 3287ft (1863mi, 305°) 4000ft APKER (1870mi, 124°) 5000ft APKER (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
