Livingstone - Harry Mwanga Nkumbula

Airport details

Country	Zambia
State	Southern Province
Region	FL
Airspace	Lusaka Ctr
Municipality	Livingstone
Elevation	3301ft (1006m)
Timezone	GMT +2
Coordinates	-17.82136, 25.81708
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	FLHN
IATA code	LVI
FAA code	n/a

Communication

Harry Mwanga Nkumbula Tower	118.100
Harry Mwanga Nkumbula Approach	124.300

Runway info

Runway 10 / 28
	length	2997m (9833ft)
	bearing	94° / 274°
	width	60m (197ft)
	surface	asphalt
	blast zone	68m (223ft) / 0m (0ft)
Runway 15 / 33
	length	1377m (4518ft)
	bearing	138° / 318°
	width	30m (98ft)
	surface	asphalt
	displ threshold	74m (243ft) / 0m (0ft)

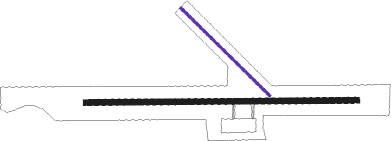

Airport layout - runway 15 / 33

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
VLI	HARRY NKUMBULA VOR/DME	0.5	19°	112.50
LZ	HARRY NKUMBULA NDB	1.2	274°	308
FO	VICTORIA FALLS NDB	15.3	193°	256
VFA	VICTORIA FALLS VOR/DME	16.1	181°	116.70
KAV	KASANE VOR/DME	37	269°	113.30
KAS	KASANE NDB	37.7	270°	287
MT	MATETSI NDB	41.5	172°	260

Departure and arrival routes

Transition altitude

5000ft

SID end points		distance	outbound heading
RW10
	APMI1A	92mi	47°
	AXOS1A	110mi	128°
	EKBE1A	30mi	229°
	APMA1A	50mi	313°
RW28
	APMI1B	92mi	47°
	AXOS1B	110mi	128°
	EKBE1B	30mi	229°
	APMA1B	50mi	313°

STAR starting points		distance	inbound heading
RW10
	FA1A	15.2	12°
	EXOB1A	29.5	49°
	AVOM1A	50.5	227°
RW28
	FA1B	15.2	12°
	EXOB1B	29.5	49°
	AMBI1B	85.6	104°
	AVOM1B	50.5	227°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10	APKIM (120°)	APKIM 6300ft AVOKI (5mi, 184°) 6300ft
RW10	ATUSO (94°)	ATUSO 6300ft AVOKI (5mi, 94°) 6300ft
RW10	EGSUS (68°)	EGSUS 6300ft AVOKI (5mi, 4°) 6300ft
	RNAV	AVOKI 6300ft AXALI (5mi, 94°) 4800ft FLHN (5mi, 94°) 3305ft AXATI (5mi, 90°) 4800ft APKIM (16mi, 291°) 5000ft APKIM (turn)
RW28	APKER (250°)	APKER 6300ft AVORO (5mi, 195°) 6300ft
RW28	APKOM (274°)	APKOM 6300ft AVORO (5mi, 274°) 6300ft
RW28	AVIDU (298°)	AVIDU 6300ft AVORO (5mi, 354°) 6300ft
	RNAV	AVORO 6300ft AXAMA (5mi, 274°) 4800ft FLHN (5mi, 274°) 3287ft (1863mi, 305°) 4000ft APKER (1870mi, 124°) 5000ft APKER (turn)
