Airports for X-Plane

Mahajanga - Philibert Tsiranana

Airport details

CountryMadagascar
StateBoeny
RegionFM
AirspaceAntananarivo Ctr
MunicipalityMahajanga
Elevation85ft (26m)
TimezoneGMT +3
Coordinates-15.66658, 46.35108
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFMNM
IATA codeMJN
FAA coden/a

Communication

Philibert Tsiranana MAHAJANGA Tower119.100

Runway info

Runway 14 / 32
 length2206m (7238ft)
 bearing131° / 311°
 width45m (148ft)
 surfaceasphalt
 blast zone30m (98ft) / 30m (98ft)

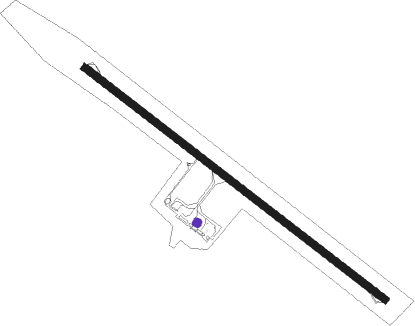

Airport layout - parking location 3


Parking locations

 1  2  3  4  5  A  B  C

Nearby beacons

codeidentifierdistbearingfrequency
MGMAHAJANGA VOR/DME0.8311°112.50
MAMAHAJANGA NDB1.4131°285

Departure and arrival routes

Transition altitude2600ft
STAR starting pointsdistanceinbound heading
ALL
 MAIN1V195.644°
 IXES1V60.9141°
 DZP1V182.4159°
 SOAV1V124.7176°
 VSN1V181.1220°
 UVGA1V49.5344°
RW14
 MEKI1A, MAIN1P195.644°
 IKSO1P, IXES1P60.9141°
 DZP1P, DEGE1P182.4159°
 SABR1P, SOAV1P124.7176°
 VSN1P, NAKU1D181.1220°
 UBAR1A, UVGA1P49.5344°
RW32
 MEKI1G, MAIN1Z, MAIN1B195.644°
 IKSO1K, IXES1B, IXES1Z60.9141°
 DZP1Z, DZP1B, DEGE1K182.4159°
 SOAV1Z, SOAV1B, SABR1K124.7176°
 NAKU1K, VSN1B, VSN1Z181.1220°
 UBAR1B, UVGA1B, UVGA1Z49.5344°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14ANTAN (111°)ANTAN 2600ft
PAZON (5mi, 43°) 2600ft
RW14DUGLO (151°)DUGLO 2600ft
PAZON (5mi, 223°) 2600ft
RW14PAZON (131°)PAZON 2600ft
 RNAVPAZON 2600ft
NM501 (5mi, 131°) 2600ft
FMNM (8mi, 131°) 85ft
NM502 (4mi, 131°)
DUGLO (19mi, 326°) 2600ft
RW32BOROM (311°)BOROM 2600ft
RW32GEPIS (334°)GEPIS 2600ft
BOROM (5mi, 43°) 2600ft
RW32KEDOT (289°)KEDOT 2600ft
BOROM (5mi, 223°) 2600ft
 RNAVBOROM 2600ft
NM503 (4mi, 311°) 2600ft
FMNM (8mi, 311°) 137ft
NM504 (4mi, 311°)
KEDOT (17mi, 114°) 2600ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AT1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
AT1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
DEGE1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
DZP1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
DZP1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
IKSO1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
IXES1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
IXES1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
MAIN1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
MAIN1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
MT1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
MT1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
SA1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
SA1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
SABR1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
SOAV1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
SOAV1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
TANA1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
UBAR1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
UVGA1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
UVGA1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
VSN1BBOROMVHFright143 (323)°2600ft - 7000ft1.0min timed230
VSN1PPAZONVHFleft323 (143)°2600ft - 7000ft1.0min timed230
*) magnetic outbound (inbound) holding course
