Airports for X-Plane

Libreville - Leon Mba

Airport details

CountryGabon
StateEstuaire Province
RegionFO
AirspaceBrazzaville Ctr
MunicipalityLibreville
Elevation39ft (12m)
TimezoneGMT +1
Coordinates0.45071, 9.41536
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFOOL
IATA codeLBV
FAA coden/a

Communication

Leon Mba Tower118.700
Leon Mba Approach126.500
Leon Mba Departure126.500

Approach frequencies

ILS-cat-IRW16109.518.00mi
3° GSRW16109.518.00mi

Runway info

Runway 16 / 34
 length3013m (9885ft)
 bearing154° / 334°
 width45m (148ft)
 surfaceasphalt
 blast zone62m (203ft) / 57m (187ft)

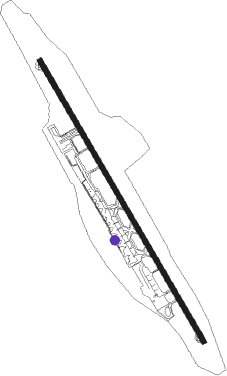

Airport layout - parking location B5


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K
Parking locations

 A1  A2  A3  B1  B2  B3  B4  B5
 B6  B7  B8

Nearby beacons

codeidentifierdistbearingfrequency
LVLIBREVILLE VOR/DME1.9335°112.10
LNLIBREVILLE NDB5.6335°305

Departure and arrival routes

Transition altitude3100ft
SID end pointsdistanceoutbound heading
RW16
 BTA3S90mi15°
 ARAS3S96mi33°
 IKRO1S136mi69°
 NEBE1S157mi89°
 PONO1S149mi129°
 TAPI1S149mi155°
 BUND1S149mi158°
 VORE1S118mi220°
 TURE1S112mi229°
 ILDA1S112mi236°
 AGSI1S95mi248°
 KOPU3S80mi269°
 GULE2S86mi291°
 DESO2S94mi301°
 BIPI1S228mi316°
RW34
 BATA2N90mi15°
 ARAS2N96mi33°
 GAKA2N78mi128°
 EBTO2N78mi155°
 MISV2N78mi158°
 TEMK2N41mi211°
 KOPU2N80mi269°
 GULE1N86mi291°
 DESO1N94mi301°
 ARKO2N122mi316°

STAR starting pointsdistanceinbound heading
RW16
 SEPA1V41.231°
 SEPA1D24.832°
 VORE1R, GAKO1V118.340°
 GAKO1D24.843°
 RALE1V, TURE1R111.549°
 RALE1D24.953°
 IKRU1V, ILDA1R, IKRU1D111.656°
 AGSI1R, POGM1V95.168°
 POGM1D25.071°
 KOLA1V, KOPU1R80.089°
 KOLA1D25.192°
 GULE1R, ONAN1B, ONAN1D, ONAN1V85.6111°
 DESO1B93.7121°
 LUBR1D, LUBR1B, LUBR1V72.0122°
 MERI1D, MERI1V, MERI1B61.9136°
 BIPI1B227.5136°
 AGTE1B, AGTE1A, AGTE1V70.3195°
 BTA1B90.3195°
 ARAS1L, VABE1A, VABE1B, VABE1V96.1213°
 BIKE1A, BIKE1V70.1248°
 IKRO1L136.2249°
 UBOL1V, UBOL1A70.8268°
 NEBE1L156.7269°
 DITK1V24.6307°
 DITK1A71.7308°
 PONO1L148.5309°
 TAPI1L148.7335°
 EBRA1D24.6338°
 BUND1L148.8338°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LILAT (175°)LILAT 2100ft
BINAS (5mi, 244°) 2000ft
RW16RATOS (133°)RATOS 2000ft
BINAS (5mi, 64°) 2000ft
 RNAVBINAS 2000ft
OL501 (6mi, 154°) 2000ft
FOOL (7mi, 154°) 78ft
(566mi, 267°) 600ft
RATOS (557mi, 86°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGTE1AARDANVHFleft55 (235)°2100ft - 12000ftDME 5.0mi230
AGTE1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
BIKE1AARDANVHFleft55 (235)°2100ft - 12000ftDME 5.0mi230
BIKE1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
DITK1AARDANVHFleft55 (235)°2100ft - 12000ftDME 5.0mi230
DITK1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
EBRA1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
EBRA1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
GAKO1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
GAKO1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
IKRU1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
IKRU1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
KOLA1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
KOLA1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
LUBR1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
LUBR1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
MERI1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
MERI1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
ONAN1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
ONAN1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
POGM1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
POGM1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
RALE1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
RALE1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
SEPA1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
SEPA1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
TASO1DDEGILVHFright270 (90)°2100ft - 12000ftDME 5.0mi230
TASO1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
UBOL1AARDANVHFleft55 (235)°2100ft - 12000ftDME 5.0mi230
UBOL1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
VABE1AARDANVHFleft55 (235)°2100ft - 12000ftDME 5.0mi230
VABE1VLVNDBleft336 (156)°3000ft - 6000ft1.0min timed230
*) magnetic outbound (inbound) holding course
