Windhoek - Windhoek Hosea Kutako Intl

Airport details

Country	Namibia
State	Khomas
Region	FY
Airspace	Windhoek Ctr
Elevation	5641ft (1719m)
Timezone	GMT +1
Coordinates	-22.47989, 17.47095
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	FYWH
IATA code	WDH
FAA code	n/a

Communication

Windhoek Hosea Kutako Intl ATIS	126.200
Windhoek Hosea Kutako Intl Alpha Oscar (Ground Control)	125.900
Windhoek Hosea Kutako Intl Windhoek (Tower)	118.100
Windhoek Hosea Kutako Intl Windhoek (Approach)	120.500

Approach frequencies

ILS-cat-I	RW26	110.3	18.00mi
3° GS	RW26	110.3	18.00mi

Nearby Points of Interest:

Old German School Building

Look-Out Post

Ten-man House

War Memorial

Elisabeth House

Runway info

Runway 08 / 26
	length	4573m (15003ft)
	bearing	65° / 245°
	width	45m (148ft)
	surface	asphalt
	blast zone	28m (92ft) / 28m (92ft)
Runway 16 / 34
	length	1526m (5007ft)
	bearing	139° / 319°
	width	30m (98ft)
	surface	asphalt
	blast zone	5m (16ft) / 13m (43ft)

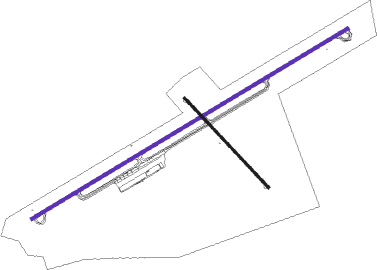

Airport layout - runway 08 / 26

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
WHV	WINDHOEK VOR/DME	0.1	352°	114.50

Departure and arrival routes

Transition altitude

10000ft

SID end points		distance	outbound heading
RW08
	EGMA1A	50mi	127°
	UTUL1A	47mi	171°
RW26
	EGMA1B	50mi	127°
	UTUL1B	47mi	171°

STAR starting points		distance	inbound heading
RW08
	ATUP1A	45.5	26°
	AXOD1A	49.5	285°
RW26
	ATUP1B	45.5	26°
	AXOD1B	49.5	285°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08	APNUL (65°)	APNUL WH08I (5mi, 65°) 9000ft
RW08	OLLIE (49°)	OLLIE WH08I (5mi, 353°) 9000ft
RW08	OOVER (81°)	OOVER WH08I (5mi, 132°) 9000ft
	RNAV	WH08I 9000ft WH08F (5mi, 65°) 8110ft WH08S (5mi, 65°) 6490ft FYWH (4mi, 65°) 5692ft WHM01 (turn) OOVER (17mi, 261°) 9500ft OOVER (turn) 9500ft
RW26	FRITZ (245°)	FRITZ 8000ft
	RNAV	FRITZ 8000ft WH26F (3mi, 245°) 8000ft FYWH (9mi, 245°) 5550ft FRITZ (12mi, 65°) 8000ft FRITZ (turn)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ATUP1A	ATUPI	VHF	left	217 (37)°	20000ft - 46000ft	1.0min timed	315
ATUP1B	ATUPI	VHF	left	217 (37)°	20000ft - 46000ft	1.0min timed	315
AXOD1A	AXODO	VHF	right	119 (299)°	20000ft - 46000ft	1.0min timed	315
AXOD1B	AXODO	VHF	right	119 (299)°	20000ft - 46000ft	1.0min timed	315
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
