Airports for X-Plane

Kinshasa - Ndjili Intl

Airport details

CountryCongo
StateKinshasa Province
RegionFZ
AirspaceKinshasa Ctr
MunicipalityKinshasa
Elevation1023ft (312m)
TimezoneGMT +1
Coordinates-4.38559, 15.44469
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFZAA
IATA codeFIH
FAA coden/a

Communication

Ndjili Intl ATIS120.500
Ndjili Intl Ground Control121.900
Ndjili Intl Tower118.100
Ndjili Intl Approach119.700
Ndjili Intl Departure119.700

Approach frequencies

ILS-cat-IRW24110.318.00mi
3° GSRW24110.318.00mi

Runway info

Runway 06 / 24
 length4004m (13136ft)
 bearing57° / 237°
 width60m (197ft)
 surfaceasphalt
 blast zone50m (164ft) / 61m (200ft)

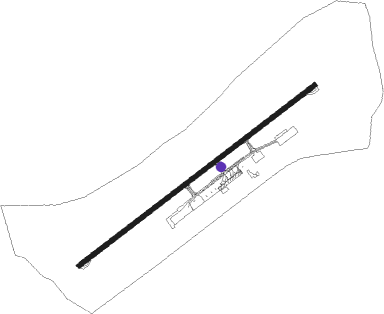

Airport layout - taxiway location B


Taxiway locations

 A  B  C
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
KSAKINSHASA VOR/DME1.8237°115
OKN'DJILI INTL (KINSHASA) NDB557°340
BZBRAZZAVILLE VOR/DME14.3304°113.10

Departure and arrival routes

Transition altitude5500ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW06
 IPOL4B76mi32°
 KSA82B77mi49°
 BZ3B10mi58°
 UDRI2B77mi64°
 DILG1B45mi68°
 ULVA2B77mi83°
 ORVI2B77mi102°
 EGVI2B78mi112°
 ABGU2B78mi124°
 EMKO1B45mi133°
 RUVI2B78mi140°
 OGNI2B79mi151°
 GEDP1B45mi207°
 XIVM2B80mi207°
 LIDG2B80mi234°
RW24
 IPOL4A76mi32°
 KSA82A77mi49°
 UDRI2A77mi64°
 DILG1A45mi68°
 ULVA2A77mi83°
 ORVI2A77mi102°
 EGVI2A78mi112°
 ABGU2A78mi124°
 EMKO1A45mi133°
 RUVI2A78mi140°
 OGNI2A79mi151°
 XIVM2A80mi207°
 GEDP1A45mi207°
 LIDG2A80mi234°
 BZ4A14mi304°

STAR starting pointsdistanceinbound heading
ALL
 ULVA1B76.9263°
 ORVI1B77.2282°
 EGVI1B77.5292°
 ABGU1B77.9304°
 RUVI1B78.4320°
 OGNI1B78.8331°
RW06
 BELG1B45.054°
 TUSO1B45.1219°
 EMPE1B44.9280°
RW24
 BELG1A45.054°
 IPOL1A76.4212°
 TUSO1A45.1219°
 UDRI1A76.8244°
 ULVA2A76.9263°
 EMPE1A44.9280°
 ORVI2A77.2282°
 EGVI2A77.5292°
 ABGU2A77.9304°
 RUVI2A78.4320°
 OGNI2A78.8331°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06ATKOT (35°)ATKOT 5000ft
A06C1 (5mi, 337°) 4200ft
RW06OMIBA (57°)OMIBA 5000ft
A06C1 (5mi, 57°) 4200ft
 RNAVA06C1 4200ft
A06F1 (5mi, 57°) 2600ft
DITLI (2mi, 57°) 2000ft
FZAA (4mi, 57°) 1049ft
XOTSO (4mi, 57°)
BAKAB (16mi, 166°) 5000ft
BAKAB (turn) 5000ft
RW24OTGID (213°)OTGID 5000ft
A24C1 (5mi, 157°) 4000ft
RW24TENVU (237°)TENVU 5000ft
A24C1 (5mi, 237°) 4000ft
RW24URISO (261°)URISO 5000ft
A24C1 (5mi, 317°) 4000ft
 RNAVA24C1 4000ft
A24F1 (4mi, 237°) 2800ft
FZAA (6mi, 237°) 1047ft
DITLI (4mi, 237°)
BAKAB (15mi, 134°) 5000ft
BAKAB (turn)
