Airports for X-Plane

Fuerteventura Island - Fuerteventura

Airport details

CountrySpain
StateCanary Islands
RegionGC
AirspaceCanaries Ctr
MunicipalityPuerto del Rosario
Elevation20ft (6m)
TimezoneGMT +0
Coordinates28.44163, -13.86840
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGCFV
IATA codeFUE
FAA coden/a

Communication

Fuerteventura ATIS118.650
Fuerteventura Tower119.200
Fuerteventura Tower118.500
Fuerteventura Approach129.300

Approach frequencies

ILS-cat-IRW19111.318.00mi
ILS-cat-IRW01109.518.00mi
3.5° GSRW19111.318.00mi
3° GSRW01109.518.00mi
Nearby Points of Interest:
Castillo de Caleta de Fuste
-
Edificio Segarra

Runway info

Runway 01 / 19
 length3420m (11220ft)
 bearing2° / 182°
 width50m (165ft)
 surfaceasphalt
 displ threshold1001m (3284ft) / 466m (1529ft)
 blast zone65m (213ft) / 56m (184ft)

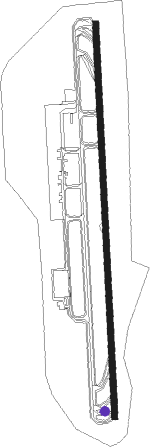

Airport layout - taxiway location E9


Taxiway locations

 A4  A5  E1  E10  E3  E4  E5  E6
 E7  E9  T1  T2  T3  T4  T5  T6
Parking locations

 Cargo  GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
FTVFUERTEVENTURA VOR/DME0.6160°114.10
FUEDME3.5178°108
FVFUERTEVENTURA NDB3.5178°397
TLZLANZAROTE TACAN33.227°114.70
LTELANZAROTE AEROPUERTO VOR/DME33.528°114.40
LZRLANZAROTE VOR/DME47.426°115.20

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW01
 VAST9Q, VAST5Z125mi8°
 LUNO4Q45mi9°
 KORA9Q, KORA6Z103mi45°
 LORP4Q44mi254°
 LARY5Q57mi294°
 MAPE4Q31mi336°
 SAMA5Z, SAMA9Q150mi347°
RW19
 VAST8R125mi8°
 LUNO3R45mi9°
 KORA7R, KORA4Y103mi45°
 LORP3R44mi254°
 LARY3R57mi294°
 MAPE3R31mi336°
 SAMA7R150mi347°

STAR starting pointsdistanceinbound heading
ALL
 RUSI4B62.0246°
RW01
 KOPU3S38.365°
 GDV5S85.377°
 TERT7S116.6215°
 RUSI4S62.0246°
RW19
 KOPU1W38.365°
 GDV3W85.377°
 TERT8W116.6215°
 RUSI5W62.0246°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01SOTAD (358°)SOTAD 5000ft
DEMEX (14mi, 4°) 2700ft
LIRBU (2mi, 314°) 2700ft
 RNAVLIRBU 2700ft
FV07S (5mi, 2°) 2500ft
GCFV (7mi, 360°) 87ft
FV627 (4mi, 5°)
TENDA (12mi, 85°) 4000ft
TENDA (turn) 4000ft
RW19BAMKU (294°)BAMKU 6000ft
ROXES (8mi, 1°) 3000ft
NOBLI (8mi, 1°) 3000ft
RATAT (4mi, 300°) 3000ft
TUVIL (4mi, 265°) 3000ft
 RNAVTUVIL 3000ft
FV737 (5mi, 182°) 2300ft
FV04N (4mi, 182°) 1500ft
GCFV (5mi, 185°) 133ft
FV738 (10mi, 180°)
FV739 (8mi, 290°)
FV740 (10mi, 301°)
KEMEV (18mi, 42°) 4000ft
KEMEV (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GDV3WKEMEVVHFright233 (53)°> 4000ft1.0min timedICAO rules
GDV5SSIRPUVHFright223 (43)°> 5000ft1.0min timedICAO rules
KOPU1WKEMEVVHFright233 (53)°> 4000ft1.0min timedICAO rules
KOPU3SSIRPUVHFright223 (43)°> 5000ft1.0min timedICAO rules
RUSI4BDURCOVHFleft67 (247)°9000ft - 13000ft1.0min timed230
RUSI4BTENDAVHFleft66 (246)°> 5000ftDME 4.7miICAO rules
RUSI4SDURCOVHFleft67 (247)°9000ft - 13000ft1.0min timed230
RUSI4SSOTADVHFleft134 (314)°> 5000ft1.0min timed220
RUSI5WBAMKUVHFright117 (297)°> 6000ft1.0min timed220
RUSI5WDURCOVHFleft67 (247)°9000ft - 13000ft1.0min timed230
TERT7SSOTADVHFleft134 (314)°> 5000ft1.0min timed220
TERT8WBAMKUVHFright117 (297)°> 6000ft1.0min timed220
*) magnetic outbound (inbound) holding course
