Airports for X-Plane

Oujda - Angads

Airport details

CountryMorocco
StateOujda Province
RegionGM
AirspaceCasablanca Ctr
Municipalitycaïdat d'Angad قيادة أهل أنكاد
Elevation1535ft (468m)
TimezoneGMT +0
Coordinates34.78611, -1.92556
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeGMFO
IATA codeOUD
FAA coden/a

Communication

Angads ATIS121.600
Angads OUJDA Approach136.600
Angads OUJDA Tower118.200

Approach frequencies

ILS-cat-IRW13108.118.00mi
ILS-cat-IRW06110.118.00mi
3.4° GSRW13108.118.00mi
3.2° GSRW06110.118.00mi
Nearby Points of Interest:
Taforalt Cave
-
Ras Lma lighthouse

Runway info

Runway 13 / 31
 length3000m (9843ft)
 bearing126° / 306°
 width45m (148ft)
 surfaceasphalt
 blast zone72m (236ft) / 69m (226ft)
Runway 06 / 24
 length2998m (9836ft)
 bearing62° / 242°
 width45m (148ft)
 surfaceasphalt
 blast zone0m (0ft) / 63m (207ft)

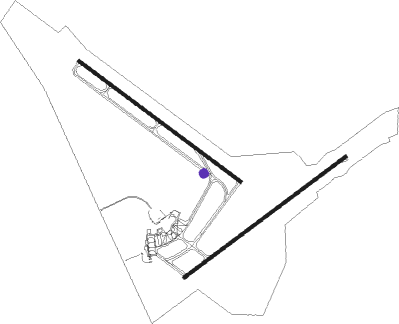

Airport layout - taxiway location T3


Taxiway locations

 A  A1  B1  N  R2  S1  S2  T1
 T3  T4  V
Parking locations

 Term

Nearby beacons

codeidentifierdistbearingfrequency
OJDOUJDA VOR/DME1.4243°117.50
VDOOUJDA VOR/DME2.4310°115.65
TLMTLEMCEN VOR/DME27.364°116.50
HMBHAMMAM BOU HADJAR NDB58.459°432

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW06
 EVOX1C42mi222°
 ROMO1C35mi255°
 VABS1C34mi280°
 DIGE1C30mi307°
RW13
 EVOX3C42mi222°
 ROMO3C35mi255°
 VABS3C34mi280°
 DIGE3C30mi307°
RW31
 EVOX4R42mi222°
 ROMO4R35mi255°
 VABS4R34mi280°
 DIGE4R30mi307°

STAR starting pointsdistanceinbound heading
RW06
 EVOX5C41.642°
 ROMO5A, ROMO5C35.075°
 VABS5C33.9100°
 DIGE5C30.3127°
RW13
 EVOX7C41.642°
 ROMO7C35.075°
 VABS7C33.9100°
 DIGE7C30.3127°
RW31
 EVOX8R41.642°
 ROMO8A, ROMO8R35.075°
 VABS8R33.9100°
 DIGE8R30.3127°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW31ABKAN (43°)ABKAN 7500ft
D240F (10mi, 64°) 6500ft
FO452 (6mi, 64°) 5500ft
D041C (3mi, 46°) 5200ft
FO454 (4mi, 46°) 3800ft
FO456 (3mi, 46°) 3300ft
RW31ADRER (99°)ADRER 7000ft
FO161 (12mi, 154°) 7000ft
FO452 (12mi, 105°) 5500ft
D041C (3mi, 46°) 5200ft
FO454 (4mi, 46°) 3800ft
FO456 (3mi, 46°) 3300ft
RW31OJD (63°)OJD 6000ft
IXOBA (9mi, 242°) 5500ft
FO452 (10mi, 126°) 5500ft
D041C (3mi, 46°) 5200ft
FO454 (4mi, 46°) 3800ft
FO456 (3mi, 46°) 3300ft
RW31ROMOR (75°)ROMOR 8500ft
FO161 (20mi, 84°) 7000ft
FO452 (12mi, 105°) 5500ft
D041C (3mi, 46°) 5200ft
FO454 (4mi, 46°) 3800ft
FO456 (3mi, 46°) 3300ft
 RNAVFO456 3300ft
FO458 (3mi, 306°) 2800ft
GMFO (3mi, 302°) 1543ft
FO510 (4mi, 308°) 2600ft
FO512 (9mi, 241°) 4000ft
NEMVA (11mi, 248°) 5600ft
NEMVA (turn) 5600ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DIGE5CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
DIGE7CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
DIGE8RADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
EVOX5CABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
EVOX7CABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
EVOX7CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
EVOX8RABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
ORSU5CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
ORSU7CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
ORSU8RABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
ROMO5CABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
ROMO7CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
ROMO8RABKANVHFright217 (37)°7500ft - 9000ft1.0min timed210
VABS5CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
VABS7CADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
VABS8RADRERVHFright284 (104)°7000ft - 9000ft1.0min timed210
*) magnetic outbound (inbound) holding course
