Airports for X-Plane

Casablanca - Casablanca Mohammed V Intl

Airport details

CountryMorocco
StateCasablanca Province
RegionGM
AirspaceCasablanca Ctr
MunicipalityNouaceur
Elevation655ft (200m)
TimezoneGMT +0
Coordinates33.35873, -7.57192
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGMMN
IATA codeCMN
FAA coden/a

Communication

Casablanca Mohammed V Intl ATIS126.300
Casablanca Mohammed V Intl Ground Control130.600
Casablanca Mohammed V Intl Tower118.500
Casablanca Mohammed V Intl Approach119.900

Approach frequencies

ILS-cat-IIIRW35L110.718.00mi
ILS-cat-IIIRW35R109.918.00mi
ILS-cat-IRW17R108.318.00mi
3° GSRW17R108.318.00mi
3° GSRW35L110.718.00mi
2.7° GSRW35R109.918.00mi
Nearby Points of Interest:
Arab League Park of Casablanca
-
Casablanca Cathedral
-
Casablanca

Runway info

Runway 17L / 35R
 length3724m (12218ft)
 bearing161° / 341°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 17R / 35L
 length3721m (12208ft)
 bearing161° / 341°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 68m (223ft)

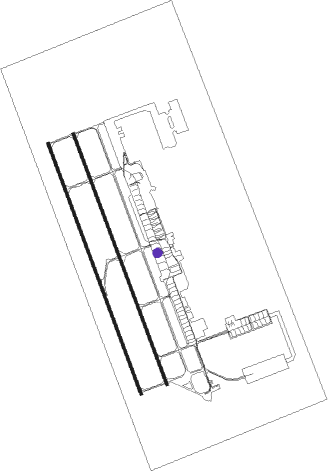

Airport layout - parking location J11


Taxiway locations

 M  M1  M2  N1  N2  P1  Q1  R1
 S2  T1  T5  Y
Parking locations

 B1  B10  B11  B12  B13  B14  B2  B3
 B4  B5  B6  B7  B8  B9  C23  C24
 C25  C26  D1  D10  D11  D12  D13  D14
 D15  D2  D3  D4  D5  D6  D7  D8
 D9  E1  E10  E11  E12  E2  E3  E4
 E5  E6  E7  E8  E9  F1  F2  F3
 F4  F5  F6  F7  F8  F9  G1  G2
 G3  G4  G5  G6  J11  J12  J13  J14
 K1  K2

Nearby beacons

codeidentifierdistbearingfrequency
CBLCASABLANCA VOR/DME4331°115.10
NUANOUASSEUR (CASABLANCA) NDB4.6332°255
NSRBARRECHID (CASABLANCA) NDB5.1169°282
SAKANFA NDB11327°413
CBADME11.1327°116.90
SLKSIDI KHEDIM (CASABLANCA) VOR/DME14.9165°112.50
BNSBENSLIMANE VOR/DME24.952°117.45
CAEBENSLIMANE NDB27.661°275
CSDDAOURAT NDB35.5229°345
RBTRABAT VOR/DME58.550°116.50
SBIRABAT NDB66.848°332
CNLKENITRA NDB73.246°380

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW17L
 TOLS2D80mi24°
 ESAL2D46mi30°
 SADI2D66mi73°
 LACA2D39mi107°
 MOGB2D46mi164°
 MABO2D43mi175°
 FACA2D42mi199°
 FOBA2D47mi220°
 NIKZ2D48mi223°
 VONC2D56mi235°
 RAVO2D46mi280°
 ODAX2D51mi313°
 LAKA2D50mi349°
RW17R
 TOLS4D80mi24°
 ESAL4D46mi30°
 SADI4D66mi73°
 LACA4D39mi107°
 MOGB4D46mi164°
 MABO4D43mi175°
 FACA4D42mi199°
 FOBA4D47mi220°
 NIKZ4D48mi223°
 VONC4D56mi235°
 RAVO4D46mi280°
 ODAX4D51mi313°
 LAKA4D50mi349°
RW35L
 TOLS3D80mi24°
 ESAL3D46mi30°
 SADI3D66mi73°
 LACA3D39mi107°
 FOBA3D47mi220°
 NIKZ3D48mi223°
 VONC3D56mi235°
 RAVO3D46mi280°
 ODAX3D51mi313°
 LAKA3D50mi349°
RW35R
 TOLS1D80mi24°
 ESAL1D46mi30°
 SADI1D66mi73°
 LACA1D39mi107°
 FOBA1D47mi220°
 NIKZ1D48mi223°
 VONC1D56mi235°
 RAVO1D46mi280°
 ODAX1D51mi313°
 LAKA1D50mi349°

STAR starting pointsdistanceinbound heading
RW17L
 FOBA2A46.740°
 NIKZ2A48.143°
 VONC2A55.555°
 RAVO2A, RAVO6A46.2100°
 LAKA2A50.4169°
 TUSO2A92.1227°
 SADI2A65.9253°
 LACA2A38.6287°
 MOGB2A45.5344°
 MABO2A43.3355°
RW17R
 FOBA4A46.740°
 NIKZ4A48.143°
 VONC4A55.555°
 RAVO4A, RAVO8A46.2100°
 LAKA4A50.4169°
 TUSO4A92.1227°
 SADI4A65.9253°
 LACA4A38.6287°
 MOGB4A45.5344°
 MABO4A43.3355°
RW35L
 FOBA3A46.740°
 NIKZ3A48.143°
 CSD3A35.549°
 RAVO3A46.2100°
 LAKA3A50.4169°
 TUSO3A92.1227°
 BNS3A24.9232°
 SADI3A65.9253°
 LACA3A38.6287°
 MOGB3A45.5344°
 MABO3A43.3355°
RW35R
 FOBA1A46.740°
 NIKZ1A48.143°
 RAVO1A46.2100°
 LAKA1A50.4169°
 TUSO1A92.1227°
 BNS1A24.9232°
 SADI1A65.9253°
 LACA1A38.6287°
 MOGB1A45.5344°
 MABO1A43.3355°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BNS1AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
BNS3AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
CSD3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
FOBA1ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
FOBA2ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
FOBA3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
FOBA4ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
LACA1AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
LACA2ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
LACA3AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
LACA4ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
LAKA1ANASROVHFright357 (177)°6000ft - 13000ftDME 5.0mi220
LAKA2ANASROVHFright357 (177)°6000ft - 13000ftDME 5.0mi220
LAKA3ANASROVHFright357 (177)°6000ft - 13000ftDME 5.0mi220
LAKA4ANASROVHFright357 (177)°6000ft - 13000ftDME 5.0mi220
MABO1ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
MABO2ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
MABO3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
MABO4ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
MOGB1ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
MOGB2ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
MOGB3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
MOGB4ASLKNDBleft165 (345)°6000ft - 13000ft1.0min timed220
NIKZ1ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
NIKZ2ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
NIKZ3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
NIKZ4ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
RAVO1ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
RAVO2ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
RAVO3ADEVNOVHFleft250 (70)°4000ft - 13000ftDME 5.0mi220
RAVO4ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
RAVO6ASAKFIXright294 (114)°3000ft - 13000ft1.0min timed220
RAVO8ASAKFIXright294 (114)°3000ft - 13000ft1.0min timed220
SADI1AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
SADI2ACAEFIXleft81 (261)°7000ft - 13000ft1.0min timed220
SADI3AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
SADI4ACAEFIXleft81 (261)°7000ft - 13000ft1.0min timed220
TUSO1AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
TUSO2ACAEFIXleft81 (261)°7000ft - 13000ft1.0min timed220
TUSO3AKOTAGVHFleft81 (261)°4000ft - 13000ftDME 5.0mi220
TUSO4ACAEFIXleft81 (261)°7000ft - 13000ft1.0min timed220
VONC2ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
VONC4ABIRVOVHFright288 (108)°4000ft - 13000ftDME 5.0mi220
*) magnetic outbound (inbound) holding course
