Airports for X-Plane

Conakry

Airport details

CountryGuinea
StateConakry Special Zone
RegionGU
AirspaceRoberts Ctr
MunicipalityConakry
Elevation69ft (21m)
TimezoneGMT +0
Coordinates9.58244, -13.60867
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGUCY
IATA codeCKY
FAA coden/a

Communication

Conakry Ground Control129.100
Conakry Tower118.700
Conakry Approach119.700

Approach frequencies

ILS-cat-IRW06110.318.00mi
3° GSRW06110.318.00mi

Runway info

Runway 06 / 24
 length3296m (10814ft)
 bearing50° / 230°
 width48m (157ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

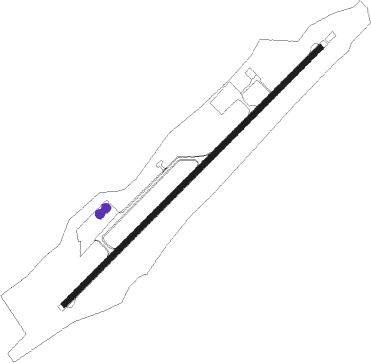

Airport layout - parking location Gate


Parking locations

 GA  Gate  Heli

Nearby beacons

codeidentifierdistbearingfrequency
CYCONAKRY NDB0.859°395
GIAGBESSIA (CONAKRY) VOR/DME1217°114.90
LGILUNGI (FREETOWN) NDB62.9157°339
LGILUNGI (FREETOWN) VOR/DME63157°115.50

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW06
 DIRN1C135mi12°
 DESO2N42mi16°
 ILGO1C, ILGO2N73mi63°
 SI2N283mi68°
 EDBA1C, EDBA2N95mi80°
 BUKL1N39mi114°
 AKNA1C, AGSI2N62mi136°
 BIRE2N34mi156°
 BIRE1C63mi157°
 AXIR2N40mi321°
 MEMO1C130mi345°
 BOSO1C, IRAL2N186mi359°
RW24
 DIRN1D135mi12°
 DESO2S42mi16°
 ILGO1D, ILGO2S73mi63°
 SI2S283mi68°
 EDBA2S, EDBA1D95mi80°
 BIRE1D162mi114°
 BUKL2S39mi114°
 AGSI2S62mi136°
 BIRE2S34mi156°
 KIRT1D87mi320°
 AXIR2S40mi321°
 POGR1D130mi345°
 IRAL2S, TOBO1D186mi359°

STAR starting pointsdistanceinbound heading
RW06
 KIRT1A86.5140°
 POGR1A129.5165°
 DEGO1A83.5181°
 ILGO1A73.0243°
 EDBA1A94.8260°
 BIRE1A33.7336°
RW24
 KIRT1B86.5140°
 POGR1B129.5165°
 RALU1B89.7181°
 ILGO1B73.0243°
 EDBA1B94.8260°
 MOPI1B30.3318°
 BIRE1B62.9337°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06AGVIS (25°)AGVIS 2000ft
BINUM (6mi, 319°) 2000ft
RW06BINUM (49°)BINUM 2000ft
RW06DITVU (74°)DITVU 2000ft
BINUM (6mi, 139°) 2000ft
 RNAVBINUM 2000ft
CY501 (6mi, 50°) 2000ft
GUCY (7mi, 49°) 117ft
CY502 (4mi, 52°)
AGVIS (18mi, 210°) 2000ft
RW24DEKUV (201°)DEKUV 4600ft
KONAL (6mi, 139°) 2500ft
RW24GAGUD (260°)GAGUD 4600ft
KONAL (6mi, 319°) 2500ft
 RNAVKONAL 2500ft
CY503 (5mi, 230°) 1700ft
GUCY (6mi, 231°) 103ft
CY504 (4mi, 228°)
GAGUD (16mi, 71°) 4600ft
