Country | Cabo Verde |
State | Barlavento Islands |
Region | GV |
Airspace | Sal Oceanic Ctr |
Municipality | Boa Vista |
Elevation | 66ft (20m) |
Timezone | GMT -1 |
Coordinates | 16.13722, -22.88861 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | GVBA |
IATA code | BVC |
FAA code | n/a |
Rabil ATC TOWER | 118.900 |

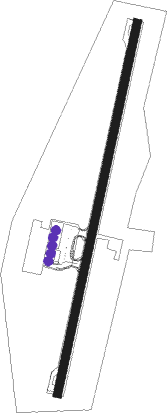

Runway 03 / 21 | ||
length | 2102m (6896ft) | |
bearing | 17° / 197° | |
width | 46m (150ft) | |
surface | asphalt |
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
BVT | BOA VISTA NDB | 0.1 | 169° | 341 |
SAL | SAL NDB | 34 | 354° | 274 |
CVS | SAL VOR/DME | 36.1 | 354° | 115.30 |
Transition altitude | 7000ft |
SID end points | distance | outbound heading | |
---|---|---|---|
RW03 | |||
PISP1C, PISP1J | 111mi | 20° | |
PINP1J, PINP1C | 106mi | 32° | |
POLM1J | 72mi | 84° | |
RAMO1J | 67mi | 104° | |
SONV1J | 91mi | 148° | |
BA661J | 46mi | 155° | |
SNT1C, SNT1J | 80mi | 206° | |
BA641J | 73mi | 244° | |
DENE1J | 167mi | 256° | |
EDIP1J | 195mi | 270° | |
SISA1J | 84mi | 279° | |
NCL1C | 84mi | 287° | |
SVT1C | 132mi | 288° | |
NINA1J | 89mi | 297° | |
EVKA1J | 206mi | 298° | |
KESI1J | 168mi | 315° | |
LINI1J | 162mi | 317° | |
MOPA1J | 137mi | 330° | |
BA671J | 66mi | 330° | |
NEMD1J | 123mi | 342° | |
CVS1J | 36mi | 354° | |
RW21 | |||
PISP1D, PISP1L | 111mi | 20° | |
PINP1L, PINP1D | 106mi | 32° | |
POLM1L | 72mi | 84° | |
RAMO1L | 67mi | 104° | |
SONV1L | 91mi | 148° | |
SNT1D | 80mi | 206° | |
BA701L | 42mi | 206° | |
BA641L | 73mi | 244° | |
DENE1L | 167mi | 256° | |
EDIP1L | 195mi | 270° | |
SISA1L | 84mi | 279° | |
NCL1D | 84mi | 287° | |
SVT1D | 132mi | 288° | |
NINA1L | 89mi | 297° | |
EVKA1L | 206mi | 298° | |
KESI1L | 168mi | 315° | |
LINI1L | 162mi | 317° | |
MOPA1L | 137mi | 330° | |
NEMD1L | 123mi | 342° | |
CVS1L | 36mi | 354° |
STAR starting points | distance | inbound heading | |
---|---|---|---|
ALL | |||
SNT1R | 79.7 | 26° | |
SISA1R | 84.4 | 99° | |
NCL1R | 84.3 | 107° | |
NINA1R | 89.4 | 117° | |
PISP1R | 111.4 | 200° | |
PINP1R | 106.1 | 212° | |
RW03 | |||
SNT1P | 79.7 | 26° | |
SISA1P | 84.4 | 99° | |
NINA1P | 89.4 | 117° | |
PISP1P | 111.4 | 200° | |
PINP1P | 106.1 | 212° | |
POLM1P | 72.3 | 264° | |
RAMO1P | 66.7 | 284° | |
RW21 | |||
SNT1Q | 79.7 | 26° | |
SISA1Q | 84.4 | 99° | |
NINA1Q | 89.4 | 117° | |
PISP1Q | 111.4 | 200° | |
PINP1Q | 106.1 | 212° | |
POLM1Q | 72.3 | 264° | |
RAMO1Q | 66.7 | 284° |
runway | airway (heading) | route (dist, bearing) |
---|---|---|
RW03 | BA501 (17°) | BA501 2500ft BA13S (6mi, 17°) 2500ft |
RW03 | BA502 (42°) | BA502 2500ft BA13S (6mi, 106°) 2500ft |
RW03 | BA503 (352°) | BA503 2500ft BA13S (6mi, 286°) 2500ft |
RNAV | BA13S 2500ft BA08S (5mi, 17°) 2500ft GVBA (8mi, 17°) 107ft BA520 (4mi, 17°) BA502 (19mi, 216°) BA502 (turn) 2500ft | |
RW21 | BA504 (197°) | BA504 2500ft BA10N (6mi, 197°) 1700ft |
RW21 | BA505 (227°) | BA505 2500ft BA10N (6mi, 286°) 1700ft |
RW21 | BA506 (166°) | BA506 2500ft BA10N (6mi, 106°) 1700ft |
RNAV | BA10N 1700ft BA05N (5mi, 197°) 1700ft GVBA (5mi, 197°) 141ft (1667mi, 125°) 640ft BA530 (1673mi, 305°) BA506 (13mi, 22°) 2500ft BA506 (turn) 2500ft |
