Airports for X-Plane

Axum

Airport details

CountryEthiopia
StateTigray
RegionHA
AirspaceAddis Abeba Ctr
MunicipalityCentral Tigray
Elevation6958ft (2121m)
TimezoneGMT +3
Coordinates14.13707, 38.77605
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHAAX
IATA codeAXU
FAA coden/a

Communication

Axum Ground Control121.900
Axum Tower118.700

Runway info

Runway 16 / 34
 length2367m (7766ft)
 bearing161° / 341°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 104m (341ft)

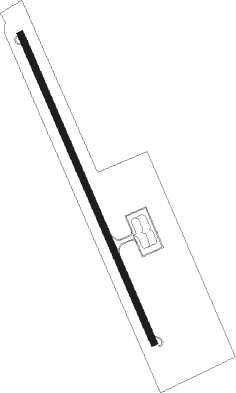

Airport layout


Parking locations

 1  2

Nearby beacons

codeidentifierdistbearingfrequency
AXAXUM NDB0.52°440
MKMEKELE NDB58.3132°256
QHAMEKELE VOR/DME59.1132°116.60

Departure and arrival routes

Transition altitude14000ft
STAR starting pointsdistanceinbound heading
RW34
 EKBA2A, EKBA2B39.531°
 GETU2A, GETU2B39.541°
 TIDEG239.9278°
 APKA2A, APKA2B39.6311°
 AXENA239.3357°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW34AX001 (341°)AX001 14000ft
AX004 (8mi, 341°) 11000ft
RW34AX002 (315°)AX002 14000ft
AX004 (8mi, 271°) 11000ft
RW34AX003 (12°)AX003 14000ft
AX004 (10mi, 52°) 11000ft
 RNAVAX004 11000ft
AX005 (5mi, 341°) 9580ft
AX006 (5mi, 341°) 7903ft
AX007 (6mi, 341°)
(2456mi, 250°)
AX008 (2449mi, 70°)
AX001 (15mi, 133°) 14000ft
AX001 (turn) 14000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
APKA2AAX001VHFright158 (338)°> 14000ft1.0min timedICAO rules
APKA2BAX002VHFright88 (268)°> 14000ft1.0min timedICAO rules
AXENA2AX001VHFright158 (338)°> 14000ft1.0min timedICAO rules
EKBA2AAX003VHFright228 (48)°> 14000ft1.0min timedICAO rules
EKBA2BAX001VHFright158 (338)°> 14000ft1.0min timedICAO rules
GETU2AAX003VHFright228 (48)°> 14000ft1.0min timedICAO rules
GETU2BAX001VHFright158 (338)°> 14000ft1.0min timedICAO rules
TIDEG2AX002VHFright88 (268)°> 14000ft1.0min timedICAO rules
TIDEG2TIDEGVHFright74 (254)°> 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
