Airports for X-Plane

Assiut - Assiut Intl

Airport details

CountryEgypt
StateAsyut
RegionHE
AirspaceCairo Ctr
Elevation770ft (235m)
TimezoneGMT +2
Coordinates27.04639, 31.01194
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHEAT
IATA codeATZ
FAA coden/a

Communication

Assiut Intl Tower118.100

Approach frequencies

ILS-cat-IRW31111.318.00mi
3° GSRW31111.318.00mi

Runway info

Runway 13 / 31
 length3022m (9915ft)
 bearing127° / 307°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

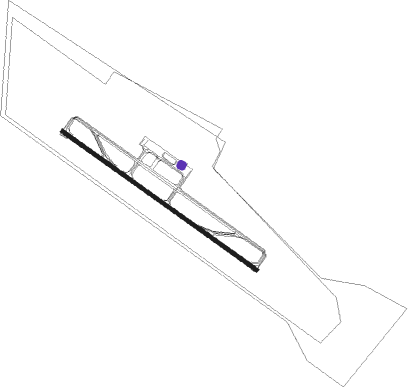

Airport layout - parking location 6


Taxiway locations

 A  B  C  D  E  F  H
Parking locations

 1  2  3  4  5  6  7

Nearby beacons

codeidentifierdistbearingfrequency
ASTASYUT VOR/DME1.4127°117.70
SHGSUHAG VOR/DME56.3134°115.30

Departure and arrival routes

Transition altitude4000ft
Transition level5500ft
SID end pointsdistanceoutbound heading
RW13
 KAXA1B24mi9°
 ASPE1B26mi80°
 KINI1B26mi125°
 BOTI1B24mi322°
RW31
 KAXA1A24mi9°
 ASPE1A26mi80°
 KINI1A26mi125°
 BOTI1A24mi322°

STAR starting pointsdistanceinbound heading
RW13
 BOTI1D23.6142°
 KAXA1D24.3189°
 ASPE1D25.8260°
 KINI1D26.4305°
RW31
 BOTI1C23.6142°
 KAXA1C24.3189°
 ASPE1C25.8260°
 KINI1C26.4305°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13AST (307°)AST
AT412 (6mi, 251°)
AT442 (11mi, 309°) 3000ft
AT435 (5mi, 62°) 2500ft
 RNAVAT435 2500ft
AT436 (5mi, 127°) 2500ft
AT437 (5mi, 127°) 787ft
(2417mi, 229°) 1800ft
RW31AST (307°)AST
AT411 (6mi, 198°)
AT431 (8mi, 120°) 3500ft
AT432 (5mi, 22°) 2800ft
 RNAVAT432 2800ft
AT433 (4mi, 307°) 2500ft
AT434 (5mi, 307°) 822ft
(2417mi, 229°) 1800ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASPE1CASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
ASPE1DASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
BOTI1CASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
BOTI1DASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
KAXA1CASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
KAXA1DASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
KINI1CASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
KINI1DASTNDBright319 (139)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
