Airports for X-Plane

Cairo - Cairo Intl

Airport details

CountryEgypt
StateCairo
RegionHE
AirspaceCairo Ctr
Elevation377ft (115m)
TimezoneGMT +2
Coordinates30.12956, 31.40281
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHECA
IATA codeCAI
FAA coden/a

Communication

Cairo Intl ATIS122.600
Cairo Intl Ground Control SOUTH121.900
Cairo Intl Ground Control NORTH126.375
Cairo Intl Tower118.100
Cairo Intl Approach119.050
Cairo Intl Approach120.700
Cairo Intl Approach119.550

Approach frequencies

ILS-cat-IIRW05R108.918.00mi
ILS-cat-IIRW05L110.918.00mi
ILS-cat-IIRW05C109.918.00mi
ILS-cat-IIRW23R110.318.00mi
ILS-cat-IIRW23L108.718.00mi
ILS-cat-IIRW23C109.518.00mi
3° GSRW05R108.918.00mi
3° GSRW23C109.518.00mi
3° GSRW23L108.718.00mi
3° GSRW05L110.918.00mi
3° GSRW23R110.318.00mi
3° GSRW05C109.918.00mi
Nearby Points of Interest:
Gamal Eddin Youssef Istadar Mosque
-
Mosque-Madrassa of Sultan Barquq
-
Madrassa of Al-Nasir Muhammad
-
Sultan Qaytbay Complex
-
Wikala of Al-Ghuri
-
Amir Khayrbak Funerary Complex
-
Mosque of Qanibay al-Muhammadi
-
Mosque and Khanqah of Shaykhu
-
Fustat
-
Giza pyramid complex
-
Memphis and its Necropolis – the Pyramid Fields from Giza to Dahshur

Runway info

Runway 05R / 23L
 length4005m (13140ft)
 bearing53° / 233°
 width60m (197ft)
 surfaceasphalt
 blast zone65m (213ft) / 66m (217ft)
Runway 05C / 23C
 length4001m (13127ft)
 bearing53° / 233°
 width60m (197ft)
 surfaceasphalt
 blast zone72m (236ft) / 64m (210ft)
Runway 05L / 23R
 length3295m (10810ft)
 bearing53° / 233°
 width60m (197ft)
 surfaceasphalt
 blast zone58m (190ft) / 62m (203ft)

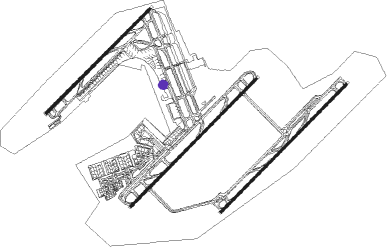

Airport layout - parking location PS5


Taxiway locations

 A  A1  A2  A3  A4  A5  B  C
 C1  D  E  EXIT1  EXIT2  EXIT3  EXIT4  F
 F1  G  G1  G2  H  J  J1  J2
 J3  L  R  R1  S  S2  T  T1
 T2  T3  T4  T5  U  W1  W2  W3
 Y
Parking locations

 AA1  AA2  AA3  AA4  Bay  Cargo  E205  E206
 E207  E208  E209  E210  E211  E212  H4-1  H4-10
 H4-11  H4-12  H4-13  H4-2  H4-3  H4-4  H4-5  H4-6
 H4-7  H4-8  H4-9  PS1  PS2  PS3  PS4  PS5
 PS6  PS7  PS8  PS9  T1  T2

Nearby beacons

codeidentifierdistbearingfrequency
CAICAIRO VOR/DME1.743°112.50
CVOCAIRO VOR/DME2.3201°115.20
ALICAIRO NDB2.4335°310
MXRALMAZA TACAN3.2231°116.30
AALMAZA NDB4218°490
MKTMOQUATTAM NDB8.4236°317
OCTOCTOBER NDB35.3241°340

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05CCA442 (16°)CA442 4500ft
CA416 (14mi, 344°) 3500ft
 RNAVCA416 3500ft
CA417 (5mi, 53°) 2500ft
CA418 (6mi, 53°) 651ft
CA419 (3mi, 53°)
CA442 (24mi, 200°) 4500ft
CA442 (turn)
RW05LCA442 (16°)CA442 4500ft
CA434 (16mi, 344°) 3500ft
 RNAVCA434 3500ft
CA436 (4mi, 53°) 2500ft
CA437 (7mi, 53°) 242ft
CA412 (3mi, 54°)
CA442 (26mi, 198°) 4500ft
CA442 (turn)
RW05RCA442 (16°)CA442 4500ft
CA452 (13mi, 344°) 3500ft
 RNAVCA452 3500ft
CA453 (7mi, 53°) 2500ft
HECA (7mi, 37°) 498ft
CA456 (4mi, 81°)
CA442 (26mi, 205°) 4500ft
CA442 (turn) 4500ft
RW23CCA422 (249°)CA422
CA423 (10mi, 254°) 3200ft
CA424 (5mi, 254°) 2500ft
RW23CCA428 (297°)CA428
CA423 (12mi, 3°) 3200ft
CA424 (5mi, 254°) 2500ft
 RNAVCA424 2500ft
CA426 (7mi, 233°) 427ft
CA418 (3mi, 233°)
CA428 (12mi, 107°)
CA428 (turn)
RW23LCA428 (297°)CA428
CA471 (8mi, 28°) 4500ft
CA473 (6mi, 315°) 3000ft
RW23LCA472 (239°)CA472 4500ft
CA473 (6mi, 233°) 3000ft
 RNAVCA473 3000ft
CA474 (5mi, 233°) 2100ft
HECA (7mi, 249°) 517ft
CA475 (8mi, 218°)
CA476 (5mi, 135°)
CA428 (12mi, 73°)
CA428 (turn)
RW23RCA422 (249°)CA422 4500ft
CA429 (9mi, 258°) 3200ft
CA431 (6mi, 259°) 2500ft
RW23RCA428 (297°)CA428
CA429 (13mi, 3°) 3200ft
CA431 (6mi, 259°) 2500ft
 RNAVCA431 2500ft
CA412 (6mi, 233°) 628ft
CA518 (8mi, 282°) 2000ft
CA519 (6mi, 24°) 2800ft
CA520 (8mi, 130°) 4000ft
CA428 (13mi, 130°)
CA428 (turn)
