Airports for X-Plane

Marsa Alam

Airport details

CountryEgypt
StateRed Sea
RegionHE
AirspaceCairo Ctr
Elevation250ft (76m)
TimezoneGMT +2
Coordinates25.55877, 34.58986
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHEMA
IATA codeRMF
FAA coden/a

Communication

Marsa Alam Marsa Alam Ground121.900
Marsa Alam Tower & Approach121.000
Marsa Alam Dep121.000

Runway info

Runway 15 / 33
 length3243m (10640ft)
 bearing147° / 327°
 width45m (148ft)
 surfaceasphalt
 blast zone120m (394ft) / 120m (394ft)

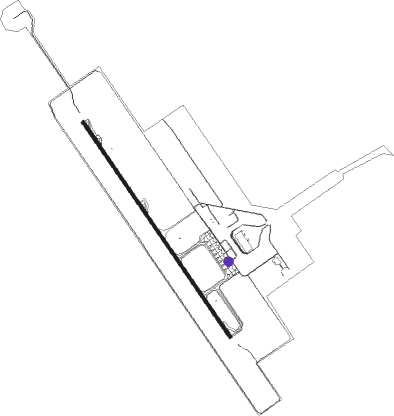

Airport layout - parking location 25


Taxiway locations

 A  B  C
Parking locations

 18  19  20  21  22  23  24  25
 26  27  H1  H2  H3

Nearby beacons

codeidentifierdistbearingfrequency
MAKMARSA ALAM VOR/DME1.9317°115.50

Departure and arrival routes

Transition altitude9500ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW15
 ALKU1B26mi260°
 SIBR1B27mi341°
RW33
 ALKU1A26mi260°
 SIBR1A27mi341°

STAR starting pointsdistanceinbound heading
RW15
 ALKU1D25.980°
 SIBR1D26.8161°
RW33
 ALKU1C, ALKU1E25.980°
 SIBR1E, SIBR1C26.8161°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15MA711 (127°)MA711 7000ft
MA712 (8mi, 102°) 3500ft
 RNAVMA712 3500ft
MA713 (5mi, 147°) 2000ft
HEMA (6mi, 144°) 297ft
MA714 (5mi, 151°) 1400ft
MA715 (6mi, 62°) 2300ft
MA711 (26mi, 299°) 6000ft
MA711 (turn) 7000ft
RW33MA611 (328°)MA611 6000ft
MA614 (7mi, 327°) 3000ft
RW33MA612 (287°)MA612 6000ft
MA614 (10mi, 242°) 3000ft
RW33MA613 (4°)MA613 6000ft
MA614 (7mi, 62°) 3000ft
 RNAVMA614 3000ft
MA615 (5mi, 327°) 2000ft
HEMA (6mi, 331°) 283ft
MA617 (5mi, 323°) 1300ft
MA618 (5mi, 62°) 2000ft
MA611 (24mi, 160°) 5000ft
MA611 (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALKU1CMA611VHFright146 (326)°> 6000ft1.0min timedICAO rules
ALKU1DMA711VHFleft280 (100)°> 7000ft1.0min timed190
SIBR1CMA611VHFright146 (326)°> 6000ft1.0min timedICAO rules
SIBR1DMA711VHFleft280 (100)°> 7000ft1.0min timed190
*) magnetic outbound (inbound) holding course
