Airports for X-Plane

Sharm El-sheikh - Sharm El Sheikh Intl

Airport details

CountryEgypt
StateSouth Sinai
RegionHE
AirspaceCairo Ctr
MunicipalitySharm El Sheikh
Elevation143ft (44m)
TimezoneGMT +2
Coordinates27.96940, 34.37521
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHESH
IATA codeSSH
FAA coden/a

Communication

Sharm El Sheikh Intl Ground Control121.900
Sharm El Sheikh Intl Tower118.900
Sharm El Sheikh Intl RADAR121.100
Sharm El Sheikh Intl RADAR122.600

Approach frequencies

ILS-cat-IRW04L109.518.00mi
3° GSRW04L109.518.00mi

Runway info

Runway 04L / 22R
 length3078m (10098ft)
 bearing46° / 226°
 width46m (149ft)
 surfaceasphalt
 blast zone70m (230ft) / 61m (200ft)
Runway 04R / 22L
 length3073m (10082ft)
 bearing46° / 226°
 width46m (149ft)
 surfaceasphalt
 blast zone64m (210ft) / 65m (213ft)

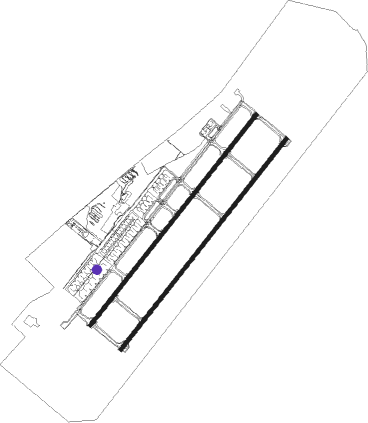

Airport layout - parking location 42


Taxiway locations

 A
Parking locations

 10  11  12  13  14  15  16  17
 18  19  2  20  21  22  23  24
 25  26  27  28  29  2A  3  30
 31  32  33  34  35  36  37  38
 39  3A  40  41  42  43  44  45
 46  6  7  8  9  Private

Nearby beacons

codeidentifierdistbearingfrequency
SHMSHARM EL SHEIKH VOR/DME2.653°114.20
NEMNEOM BAY VOR/DME48.792°112.60
HGDHURGHADA VOR/DME56.6216°116.50

Departure and arrival routes

Transition altitude9500ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW04L
 DELN1B34mi17°
 PASA1B40mi130°
 IMPI1B57mi216°
 IMLE1B67mi272°
 IVUT1B122mi307°
RW04R
 DELN1A34mi17°
 PASA1A40mi130°
 IMPI1A57mi216°
 IMLE1A67mi272°
 IVUT1A122mi307°
RW22L
 DELN1D34mi17°
 PASA1D40mi130°
 IMPI1D57mi216°
 IMLE1D67mi272°
 IVUT1D122mi307°
RW22R
 DELN1C34mi17°
 PASA1C40mi130°
 IMPI1C57mi216°
 IMLE1C67mi272°
 IVUT1C122mi307°

STAR starting pointsdistanceinbound heading
RW04L
 IMPI2F25.935°
 IMPI1F56.636°
 IMLE1F66.892°
 IVUT1F122.3127°
 DELN1F33.6197°
 PASA1F40.2310°
RW04R
 IMPI2E25.935°
 IMPI1E56.636°
 IMLE1E66.892°
 IVUT1E122.3127°
 DELN1E33.6197°
 PASA1E40.2310°
RW22L
 IMPI1H56.636°
 IMLE1H66.892°
 IVUT1H122.3127°
 DELN1H33.6197°
 PASA1H40.2310°
RW22R
 IMPI1G56.636°
 IMLE1G66.892°
 IVUT1G122.3127°
 DELN1G33.6197°
 PASA1G40.2310°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04LSH711 (19°)SH711 4000ft
SH718 (7mi, 330°) 2800ft
RW04LSH712 (44°)SH712 4000ft
SH718 (7mi, 44°) 2800ft
RW04LSH713 (82°)SH713 7800ft
SH718 (15mi, 110°) 2800ft
 RNAVSH718 2800ft
SH719 (5mi, 46°) 2500ft
HESH (7mi, 44°) 184ft
SH720 (8mi, 48°) 1600ft
SH717 (8mi, 133°) 2300ft
SH711 (22mi, 230°) 4000ft
SH711 (turn) 4000ft
RW04RSH711 (19°)SH711 4000ft
SH714 (7mi, 330°) 2800ft
RW04RSH712 (44°)SH712 4000ft
SH714 (7mi, 46°) 2800ft
RW04RSH713 (82°)SH713 7800ft
SH714 (15mi, 110°) 2800ft
 RNAVSH714 2800ft
SH715 (5mi, 46°) 2400ft
HESH (7mi, 41°) 164ft
SH716 (8mi, 50°) 1600ft
SH717 (8mi, 133°) 2300ft
SH711 (22mi, 230°) 4000ft
SH711 (turn) 4000ft
RW22LSH300 (138°)SH300 8000ft
SH301 (9mi, 46°) 4600ft
SH302 (8mi, 129°) 1600ft
RW22LSH303 (299°)SH303 4000ft
SH304 (6mi, 6°) 3000ft
SH305 (5mi, 6°) 1600ft
SH302 (4mi, 309°) 1600ft
 RNAVSH302 1600ft
SH306 (4mi, 226°) 1600ft
HESH (6mi, 231°) 167ft
SH307 (7mi, 221°) 1700ft
SH308 (10mi, 129°) 3000ft
SH303 (9mi, 46°) 4000ft
SH303 (turn)
RW22RSH300 (138°)SH300 8000ft
SH205 (9mi, 46°) 4600ft
SH206 (8mi, 129°) 1600ft
RW22RSH303 (299°)SH303 4000ft
SH202 (6mi, 5°) 3000ft
SH203 (5mi, 5°) 1600ft
SH206 (4mi, 309°) 1600ft
 RNAVSH206 1600ft
SH207 (4mi, 226°) 1600ft
HESH (6mi, 229°) 169ft
SH208 (7mi, 223°) 1700ft
SH209 (10mi, 130°) 3000ft
SH303 (9mi, 47°) 4000ft
SH303 (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DELN1ESH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
DELN1FSH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
DELN1GSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
DELN1HSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IMLE1GSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IMLE1HSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IMPI1ESH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
IMPI1FSH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
IMPI1GSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IMPI1HSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IVUT1GSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
IVUT1HSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
PASA1ESH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
PASA1FSH413VHFleft129 (309)°4000ft - 11000ft1.0min timedICAO rules
PASA1GSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
PASA1HSH425VHFright318 (138)°6000ft - 11000ft1.0min timed190
*) magnetic outbound (inbound) holding course
