Airports for X-Plane

Sabha - Sebha

Airport details

CountryLibya
StateSabha
RegionHL
AirspaceTripoli Ctr
Elevation1425ft (434m)
TimezoneGMT +2
Coordinates26.99148, 14.47225
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHLLS
IATA codeSEB
FAA coden/a

Communication

Sebha Tower119.100
Sebha Ground Control121.900

Approach frequencies

ILS-cat-IRW13110.318.00mi
3° GSRW13110.318.00mi

Runway info

Runway 06 / 24
 length1360m (4462ft)
 bearing64° / 244°
 width30m (98ft)
 surfaceasphalt
 blast zone65m (213ft) / 255m (837ft)
Runway 13 / 31
 length3598m (11804ft)
 bearing130° / 310°
 width45m (148ft)
 surfaceasphalt
 blast zone69m (226ft) / 255m (837ft)

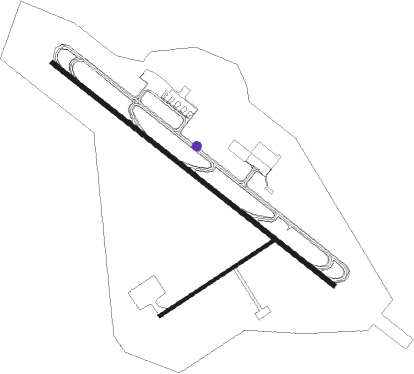

Airport layout - taxiway location D


Taxiway locations

 A  D  E  F  G  H  I
Parking locations

 1  2  3  4  5

Nearby beacons

codeidentifierdistbearingfrequency
SEBSEBHA VOR/DME0.7288°114.70

Departure and arrival routes

Transition altitude5000ft
Transition level7000ft
SID end pointsdistanceoutbound heading
RW13
 ALGA1C82mi34°
 FUGH1C112mi54°
 HORU1C95mi85°
 TMIS1C106mi107°
 ELGA1C144mi152°
 TAJA1C158mi178°
 SAHR1C151mi202°
 TAZI1C152mi248°
 BURH1C93mi283°
 AGAR1C32mi304°
 HAMR1C176mi327°
 BRAC1C31mi345°
RW31
 ALGA1F82mi34°
 FUGH1F112mi54°
 HORU1F95mi85°
 TMIS1F106mi107°
 ELGA1F144mi152°
 TAJA1F158mi178°
 SAHR1F151mi202°
 TAZI1F152mi248°
 BURH1F93mi283°
 AGAR1F32mi304°
 HAMR1F176mi327°
 BRAC1F31mi345°

STAR starting pointsdistanceinbound heading
RW13
 SAHR1B, SAHR1A150.522°
 TAZI1B, TAZI1A151.768°
 BURH1B, BURH1A92.7103°
 AGAR1A, AGAR1B31.5124°
 HAMR1B, HAMR1A175.5147°
 BRAC1B, BRAC1A31.3165°
 ALGA1B, ALGA1A82.2214°
 FUGH1B, FUGH1A111.5234°
 HORU1A, HORU1B95.2265°
 TMIS1B106.1287°
 ELGA1B143.9332°
 TAJA1B, TAJA1A157.7358°
RW31
 SAHR1D, SAHR1E150.522°
 TAZI1E, TAZI1D151.768°
 BURH1E, BURH1D92.7103°
 AGAR1E, AGAR1D31.5124°
 HAMR1E, HAMR1D175.5147°
 BRAC1E, BRAC1D31.3165°
 ALGA1D, ALGA1E82.2214°
 FUGH1D, FUGH1E111.5234°
 HORU1D, HORU1E95.2265°
 TMIS1D, TMIS1E, TMIS1A106.1287°
 ELGA1D, ELGA1E, ELGA1A143.9332°
 TAJA1E, TAJA1D157.7358°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGAR1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
ALGA1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
ALGA1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
BRAC1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
BRAC1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
BURH1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
ELGA1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
FUGH1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
FUGH1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
HAMR1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
HORU1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
HORU1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
SAHR1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
SAHR1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
TAJA1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
TAJA1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
TAZI1AZALAFVHFright313 (133)°> 3500ft1.0min timedICAO rules
TAZI1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
TMIS1DHYENAVHFleft128 (308)°> 3500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
