Airports for X-Plane

Merowe

Airport details

CountrySudan
StateNorthern State
RegionHS
AirspaceKhartoum Ctr
MunicipalityMerowe
Elevation896ft (273m)
TimezoneGMT +2
Coordinates18.44300, 31.84358
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHSMN
IATA codeMWE
FAA coden/a

Communication

Merowe Tower118.400

Approach frequencies

ILS-cat-IIRW02108.518.00mi
ILS-cat-IIRW20109.518.00mi
3° GSRW02108.518.00mi
3° GSRW20109.518.00mi

Runway info

Runway 02 / 20
 length4033m (13232ft)
 bearing24° / 204°
 width61m (200ft)
 surfaceasphalt
 blast zone125m (410ft) / 122m (400ft)

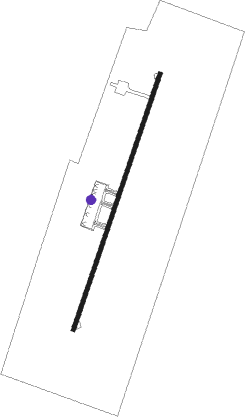

Airport layout - parking location GA


Parking locations

 1  2  3  GA

Nearby beacons

codeidentifierdistbearingfrequency
MRWMEROWE VOR/DME1.9204°116

Departure and arrival routes

SID end pointsdistanceoutbound heading
RW02
 GERA1N, GERA1A29mi82°
 ROTA1N, ROTA1A31mi154°
 KURT1N, KURT1A30mi295°
 SOLE1A, SOLE1N29mi320°
 ORKA1A, ORKA1N28mi355°
RW20
 GERA1S, GERA1B29mi82°
 ROTA1B, ROTA1S31mi154°
 KURT1B, KURT1S30mi295°
 SOLE1B, SOLE1S29mi320°
 ORKA1B, ORKA1S28mi355°

STAR starting pointsdistanceinbound heading
RW02
 KURT1A, KURT1N29.8115°
 SOLE1A, SOLE1N29.1140°
 ORKA1A, ORKA1N28.4175°
 GERA1A, GERA1N28.9262°
 ROTA1N, ROTA1A31.3334°
RW20
 KURT1B, KURT1S29.8115°
 SOLE1S, SOLE1B29.1140°
 ORKA1B, ORKA1S28.4175°
 GERA1S, GERA1B28.9262°
 ROTA1B, ROTA1S31.3334°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02MN406 (24°)MN406 3000ft
MN404 (5mi, 24°) 3000ft
 RNAVMN404 3000ft
MN402 (3mi, 24°) 3000ft
HSMN (8mi, 24°) 926ft
MN401 (2mi, 24°)
MN403 (11mi, 250°)
MN410 (10mi, 189°)
MN406 (5mi, 112°) 3000ft
MN406 (turn) 3000ft
RW20MN506 (177°)MN506 3000ft
MN504 (6mi, 112°) 3000ft
RW20MN508 (231°)MN508 3000ft
MN504 (6mi, 292°) 3000ft
 RNAVMN504 3000ft
MN502 (4mi, 204°) 3000ft
HSMN (8mi, 204°) 926ft
MRW (2mi, 204°)
MN500 (10mi, 346°)
MN506 (6mi, 24°) 3000ft
MN506 (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GERA1AMN406VHFleft200 (20)°3000ft - 8000ft1.0min timed220
GERA1NMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
GERA1SMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
KURT1AMN406VHFleft200 (20)°3000ft - 8000ft1.0min timed220
KURT1BMN506VHFleft290 (110)°3000ft - 14000ft1.0min timed235
KURT1NMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
KURT1SMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
ORKA1AMN406VHFleft200 (20)°3000ft - 8000ft1.0min timed220
ORKA1BMN506VHFleft290 (110)°3000ft - 14000ft1.0min timed235
ORKA1NMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
ORKA1SMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
ROTA1AMN406VHFleft200 (20)°3000ft - 8000ft1.0min timed220
ROTA1NMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
ROTA1SMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
SOLE1AMN406VHFleft200 (20)°3000ft - 8000ft1.0min timed220
SOLE1BMN506VHFleft290 (110)°3000ft - 14000ft1.0min timed235
SOLE1NMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
SOLE1SMRWNDBleft41 (221)°3000ft - 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
