Airports for X-Plane

Port Sudan - Port Sudan Intl

Airport details

CountrySudan
StateRed Sea State
RegionHS
AirspaceKhartoum Ctr
MunicipalityPort Sudan
Elevation133ft (41m)
TimezoneGMT +3
Coordinates19.43364, 37.23407
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHSPN
IATA codePZU
FAA coden/a

Communication

Port Sudan Intl Port Sudan Tower128.100
Port Sudan Intl Port Sudan Approach128.100

Approach frequencies

ILS-cat-IRW34110.318.00mi
3° GSRW34110.318.00mi
Nearby Points of Interest:
Suakin

Runway info

Runway 16 / 34
 length2512m (8241ft)
 bearing166° / 346°
 width45m (148ft)
 surfaceasphalt
 blast zone64m (210ft) / 60m (197ft)

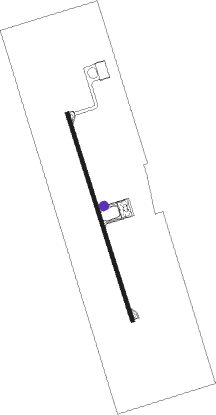

Airport layout - taxiway location A


Taxiway locations

 A  B
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
PSDPORT SUDAN VOR/DME1.9167°113.10

Departure and arrival routes

Transition altitude6000ft
Transition level8000ft
SID end pointsdistanceoutbound heading
RW16
 GEPI1S, GEPI1B44mi46°
 NABU1B, NABU1S46mi123°
 DAPE1S, DAPE1B47mi157°
 SENK1S, SENK1B46mi229°
 PURA1S, PURA1B45mi258°
 PEKA1S, PEKA1B43mi325°
RW34
 GEPI1A, GEPI1N44mi46°
 NABU1N, NABU1A46mi123°
 DAPE1N, DAPE1A47mi157°
 SENK1N, SENK1A46mi229°
 PURA1A, PURA1N45mi258°
 PEKA1N, PEKA1A43mi325°

STAR starting pointsdistanceinbound heading
ALL
 SENKA146.049°
 PURAG144.978°
 PEKAB143.2145°
 ALKET143.5203°
 NABUT146.4303°
 DAPEN147.1337°
RW16
 SENK1B46.049°
 PURA1B44.978°
 PEKA1B43.2145°
 ALKE1B43.5203°
 NABU1B46.4303°
 DAPE1B47.1337°
RW34
 SENK1A46.049°
 PURA1A44.978°
 PEKA1A43.2145°
 ALKE1A43.5203°
 NABU1A46.4303°
 DAPE1A47.1337°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16ORNAG (258°)ORNAG 3000ft
PN406 (21mi, 288°)
PN404 (5mi, 258°) 2000ft
 RNAVPN404 2000ft
PN402 (5mi, 167°) 2000ft
HSPN (6mi, 167°) 185ft
PN400 (3mi, 167°)
ORNAG (24mi, 70°) 3000ft
ORNAG (turn) 3000ft
RW34RADSI (347°)RADSI 3000ft
PN504 (6mi, 347°) 2500ft
 RNAVPN504 2500ft
PN502 (6mi, 347°) 2500ft
HSPN (8mi, 347°) 185ft
PN580 (2mi, 347°)
PN585 (9mi, 122°)
PN586 (6mi, 171°)
PN508 (10mi, 171°)
RADSI (5mi, 258°) 3000ft
RADSI (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALKE1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
DAPE1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
DAPEN1RADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
NABU1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
NABUT1RADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
PEKA1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
PURA1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
PURAG1RADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
SENK1ARADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
SENKA1RADSIVHFright164 (344)°3000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
