Airports for X-Plane

Albuquerque - Albuquerque Intl Sunport

Airport details

CountryUnited States of America
StateNew Mexico
RegionK2
AirspaceAlbuquerque Ctr
MunicipalityAlbuquerque
Elevation5354ft (1632m)
TimezoneGMT -7
Coordinates35.04937, -106.60899
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeKABQ
IATA codeABQ
FAA codeABQ

Communication

Albuquerque Intl Sunport ATIS118.000
Albuquerque Intl Sunport UNICOM122.950
Albuquerque Intl Sunport Clearance DEL119.200
Albuquerque Intl Sunport Ground Control121.900
Albuquerque Intl Sunport Tower (BACKUP)123.775
Albuquerque Intl Sunport Tower120.300
Albuquerque Intl Sunport Approach/Departure N127.400
Albuquerque Intl Sunport Approach/Departure S123.900
Albuquerque Intl Sunport ApproachROACH126.300
Albuquerque Intl Sunport DepartureARTURE124.400

Approach frequencies

ILS-cat-IRW03111.518.00mi
ILS-cat-IRW08111.918.00mi
3° GSRW03111.518.00mi
3° GSRW08111.918.00mi
Nearby Points of Interest:
Old Albuquerque Municipal Airport Building
-
Davis House
-
Ernie Pyle House/Library
-
Albuquerque Veterans Administration Medical Center
-
Jones Motor Company
-
Nob Hill Business Center
-
Werner-Gilchrist House
-
Pig & Calf Lunch
-
William J. Leverett House
-
Hendren Building
-
Sara Raynolds Hall
-
Art Annex
-
Hodgin Hall
-
Solar Building
-
Carlisle Gymnasium
-
Zimmerman Library
-
Estufa
-
Scholes Hall
-
President's House
-
Jonson Gallery and House
-
Charles W. Lewis Building
-
Hope Building
-
Huning Highlands Conoco Service Station
-
Santa Fe Railway Shops
-
Superintendent's House, Atlantic & Pacific Railroad

Runway info

Runway 8 / 26
 length4195m (13763ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 displ threshold305m (1001ft) / 0m (0ft)
 blast zone155m (509ft) / 255m (837ft)
Runway 3 / 21
 length3049m (10003ft)
 bearing50° / 230°
 width46m (150ft)
 surfaceconcrete
 blast zone123m (404ft) / 0m (0ft)
Runway 12 / 30
 length1828m (5997ft)
 bearing124° / 304°
 width46m (150ft)
 surfaceconcrete

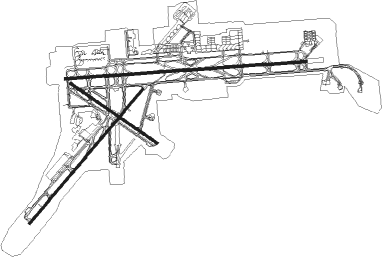

Airport layout


Taxiway locations

 A  A1  A10  A11  A2  A3  A4  A5
 A6  A7  A8  A9  B  B4  B5  B6
 C  C4  D  E  E1  E10  E11  E12
 E3  E4  E6  E7  E8  E9  F  F1
 F2  F3  F4  F5  F6  F7  G  G1
 G2  G3  H  J  K  M1  M2  M7
Parking locations

 A1  A10  A11  A12  A14  A2  A3  A4
 A5  A6  A7  A8  A9  Air  B1  B10
 B3  B4  B5  B6  B7  B8  B9  C1
 Cargo  Cutter  Del  E1  E2  E3  Eclipse  Fire
 GA  Military  North  South  Sunport

Nearby beacons

codeidentifierdistbearingfrequency
ABQALBUQUERQUE VORTAC10.1268°113.20
AEDUDLE (ALBUQUERQUE) NDB11.3328°351
BRGDME26.4209°114.75
OTOOTTO VOR33.188°114
SAFSANTA FE VORTAC39.748°110.60
ONMSOCORRO VORTAC43.9197°116.80
CNXCORONA VORTAC61.5126°115.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 LARGO3125mi268°
RW03
 GRZZZ489mi77°
 MNZNO3189mi98°
 RDRNR3125mi268°
 JEMEZ356mi340°
RW08
 GRZZZ489mi77°
 MNZNO3189mi98°
 RDRNR3125mi268°
 JEMEZ356mi340°
RW21
 FYSTA365mi74°
 DOOKK3189mi98°
 BOSQE3131mi256°
 ADYOS3125mi268°
 ATOMK357mi340°
RW26
 FYSTA365mi74°
 DOOKK3189mi98°
 BOSQE3131mi256°
 ADYOS3125mi268°
 ATOMK357mi340°

STAR starting pointsdistanceinbound heading
ALL
 LAVAN335.473°
 CURLY332.4127°
 FRIHO423.4174°
 MIERA224.9281°
RW03
 LZZRD431.71°
 BRRTO128.475°
 LOWBO328.0116°
 SNDIA415.7151°
 COLTR420.0283°
RW08
 LZZRD431.71°
 BRRTO128.475°
 LOWBO328.0116°
 SNDIA415.7151°
 COLTR420.0283°
RW21
 LZZRD431.71°
 BRRTO128.475°
 LOWBO328.0116°
 SNDIA415.7151°
 COLTR420.0283°
RW26
 LZZRD431.71°
 BRRTO128.475°
 LOWBO328.0116°
 SNDIA415.7151°
 COLTR420.0283°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YABQ (88°)ABQ
BIBQU (10mi, 176°) 8000ft
BIBQU (turn) 8000ft
RW03-YCOMRO (25°)COMRO
BIBQU (8mi, 333°) 8000ft
RW03-YLAVAN (73°)LAVAN
KAFMA (11mi, 86°) 11000ft
BIBQU (13mi, 86°) 8000ft
 RNAVBIBQU 8000ft
TECZA (6mi, 50°) 7400ft
KABQ (8mi, 48°) 5365ft
(6218mi, 108°) 5900ft
ABQ (6228mi, 288°) 8000ft
ABQ (turn)
RW03-ZBIBQU (49°)BIBQU 8000ft
MRMIK (6mi, 50°) 7200ft
GERNL (3mi, 50°) 6500ft
RW03-ZCMSTR (101°)CMSTR 9000ft
ABQ (5mi, 131°) 8500ft
BIENN (4mi, 140°) 8000ft
GERNL (4mi, 94°) 6500ft
RW03-ZCOMRO (25°)COMRO 10000ft
CEMAC (8mi, 14°) 7500ft
BILDE (4mi, 15°) 6900ft
GERNL (2mi, 33°) 6500ft
RW03-ZCRSTN (115°)CRSTN 9000ft
ABQ (6mi, 175°) 8500ft
BIENN (4mi, 140°) 8000ft
GERNL (4mi, 94°) 6500ft
RW03-ZTNTOE (329°)TNTOE 10000ft
PLNET (3mi, 230°) 9000ft
BILDE (5mi, 294°) 6900ft
GERNL (2mi, 33°) 6500ft
 RNAVGERNL 6500ft
KABQ (5mi, 46°) 5365ft
(6218mi, 108°) 6200ft
ABQ (6228mi, 288°) 8000ft
ABQ (turn)
RW08-YABQ (88°)ABQ
JILUG (5mi, 271°) 9000ft
JILUG (turn) 9000ft
RW08-YACOMA (79°)ACOMA
HEGMA (22mi, 69°) 9000ft
JILUG (5mi, 86°) 9000ft
RW08-YLORAT (98°)LORAT
HEGMA (14mi, 112°) 9000ft
JILUG (5mi, 86°) 9000ft
 RNAVJILUG 9000ft
COBKA (6mi, 90°) 8000ft
EPOCE (6mi, 90°) 6100ft
KABQ (3mi, 85°) 5369ft
(6218mi, 108°) 5740ft
JILUG (6233mi, 288°) 9000ft
JILUG (turn)
RW08-ZCMSTR (101°)CMSTR 9000ft
UNCIR (6mi, 124°) 8000ft
JILAB (3mi, 91°) 7200ft
GZELL (3mi, 90°) 6300ft
RW08-ZCOMRO (25°)COMRO 10000ft
FRANI (10mi, 3°) 8100ft
COKAR (4mi, 1°) 7400ft
GZELL (4mi, 51°) 6300ft
RW08-ZCRSTN (115°)CRSTN 9000ft
REYON (3mi, 150°) 8200ft
RKART (4mi, 127°) 7000ft
GZELL (3mi, 108°) 6300ft
RW08-ZTNTOE (329°)TNTOE 10000ft
ACMIE (6mi, 267°) 9000ft
COKAR (4mi, 308°) 7600ft
GZELL (4mi, 51°) 6300ft
 RNAVGZELL 6300ft
KABQ (3mi, 86°) 5369ft
(6218mi, 108°) 5900ft
ABQ (6228mi, 288°) 8000ft
ABQ (turn)
RW21-YCADAT (183°)CADAT 9000ft
CLIPS (5mi, 164°) 7600ft
KAGNE (3mi, 169°) 6600ft
RW21-YFOXRR (96°)FOXRR 10000ft
BGEYE (7mi, 66°) 8000ft
KEIFR (3mi, 91°) 7200ft
KAGNE (2mi, 141°) 6600ft
RW21-YNODME (146°)NODME 9000ft
KEIFR (6mi, 117°) 7200ft
KAGNE (2mi, 141°) 6600ft
 RNAVKAGNE 6600ft
TEENR (2mi, 201°)
KABQ (2mi, 242°) 5371ft
HUMKU (4mi, 225°)
WAPMA (6mi, 275°)
ABQ (3mi, 321°) 8000ft
ABQ (turn)
RW21-ZPILLA (342°)PILLA 10000ft
RMERO (4mi, 360°) 9000ft
MANZY (6mi, 3°) 8500ft
KARRI (2mi, 24°) 8000ft
WIMIM (3mi, 7°) 7200ft
RW21-ZTACOH (296°)TACOH 10000ft
ALVRZ (4mi, 267°) 9600ft
MANZY (4mi, 309°) 8500ft
KARRI (2mi, 24°) 8000ft
WIMIM (3mi, 7°) 7200ft
RW21-ZWILKE (327°)WILKE 9000ft
KARRI (3mi, 44°) 8000ft
WIMIM (3mi, 7°) 7200ft
 RNAVWIMIM 7200ft
COSKI (2mi, 301°) 6600ft
TEENR (2mi, 255°)
KABQ (2mi, 242°) 5371ft
HUMKU (4mi, 225°)
WAPMA (6mi, 275°)
ABQ (3mi, 321°) 8000ft
ABQ (turn)
RW26-YCADAT (183°)CADAT 9000ft
TRAMY (9mi, 148°) 6900ft
CRNUL (turn) 6700ft
RW26-YNODME (146°)NODME 9000ft
DEWEB (5mi, 116°) 8000ft
ZABCO (5mi, 116°) 7200ft
TRAMY (1mi, 131°) 6900ft
CRNUL (turn) 6700ft
 RNAVCRNUL 6700ft
ZUMEX (2mi, 233°)
KABQ (4mi, 274°) 5405ft
YANNU (5mi, 267°)
ABQ (6mi, 269°) 8000ft
ABQ (turn)
RW26-ZBRKBD (347°)BRKBD 9000ft
FABEX (5mi, 36°) 7400ft
CHNGA (2mi, 35°) 7000ft
RW26-ZBRNDO (23°)BRNDO 9000ft
AUXFL (3mi, 89°) 8500ft
FABEX (3mi, 64°) 7400ft
CHNGA (2mi, 35°) 7000ft
RW26-ZPILLA (342°)PILLA 10000ft
RMERO (4mi, 360°) 9000ft
SIMSS (5mi, 360°) 7700ft
FABEX (1mi, 18°) 7400ft
CHNGA (2mi, 35°) 7000ft
RW26-ZTACOH (296°)TACOH 10000ft
TEAJA (4mi, 253°) 9200ft
SIMSS (4mi, 300°) 7700ft
FABEX (1mi, 18°) 7400ft
CHNGA (2mi, 35°) 7000ft
 RNAVCHNGA 7000ft
LEETR (3mi, 325°) 6007ft
KABQ (4mi, 274°) 5405ft
YANNU (5mi, 267°)
ABQ (6mi, 269°) 8000ft
ABQ (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRRTO1BRRTOVHFleft242 (62)°DME 10.0miICAO rules
BRRTO1ELRRAVHFleft231 (51)°DME 10.0miICAO rules
COLTR4COLTRVHFright85 (265)°DME 10.0miICAO rules
FRIHO4FRIHOVHFright6 (186)°< 17999ftDME 6.0miICAO rules
LOWBO3BUKEEVHFleft257 (77)°DME 10.0miICAO rules
LOWBO3JOKLOVHFleft291 (111)°DME 10.0miICAO rules
LOWBO3LOWBOVHFleft292 (112)°DME 10.0miICAO rules
LOWBO3SSKYEVHFright334 (154)°DME 10.0miICAO rules
LZZRD4JETOSVHFright125 (305)°DME 10.0miICAO rules
LZZRD4LZZRDVHFright87 (267)°DME 10.0miICAO rules
SNDIA4ESPANVHFright9 (189)°DME 10.0miICAO rules
SNDIA4FITEEVHFright55 (235)°DME 10.0miICAO rules
SNDIA4VLCNOVHFright13 (193)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
