Airports for X-Plane

Fort Worth - Fort Worth Alliance

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceFt Worth Ctr
MunicipalityFort Worth
Elevation723ft (220m)
TimezoneGMT -6
Coordinates32.97752, -97.31335
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKAFW
IATA codeAFW
FAA codeAFW

Communication

Fort Worth Alliance ATIS126.925
Fort Worth Alliance Clearance DEL128.725
Fort Worth Alliance Ground Control132.650
Fort Worth Alliance ALLIANCE Tower120.825
Fort Worth Alliance ALLIANCE Tower135.150
Fort Worth Alliance ALLIANCE Tower257.899
Fort Worth Alliance RGNL Approach/Departure118.100

Approach frequencies

ILS-cat-IIIRW16L110.1518.00mi
ILS-cat-IRW34R110.1518.00mi
3° GSRW34R110.1518.00mi
3° GSRW16L110.1518.00mi
Nearby Points of Interest:
Thomas J. and Elizabeth Nash Farm
-
Cotton Belt Railroad Industrial Historic District
-
William J. Bryce House
-
Butler Place Historic District
-
Grand Avenue Historic District
-
Eighth Avenue Historic District
-
Ridglea Theatre
-
Stephen F. Austin Elementary School
-
Burk Burnett Building
-
Elizabeth Boulevard Historic District
-
Central Handley Historic District
-
Thomas Shiels House
-
Leuda-May Historic District
-
Paddock Viaduct
-
Heritage Park Plaza
-
Henderson Street Bridge
-
Tarrant County Courthouse
-
Fort Worth
-
Knights of Pythias Building
-
First National Bank Building
-
F. W. Woolworth Building
-
Kress Building
-
Markeen Apartments
-
Fort Worth Elks Lodge 124

Runway info

Runway 16L / 34R
 length3365m (11040ft)
 bearing169° / 349°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 61m (200ft)
Runway 16R / 34L
 length3368m (11050ft)
 bearing169° / 349°
 width46m (150ft)
 surfaceconcrete
 displ threshold0m (0ft) / 184m (604ft)
 blast zone122m (400ft) / 38m (125ft)

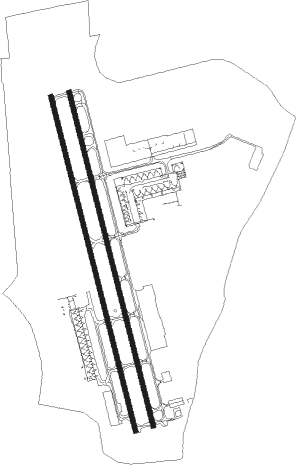

Airport layout


Taxiway locations

 A  A1  B  C  D  E  F  G
 H  J  M  P  P1  P2
Parking locations

 10A_prop  10B_prop  10C_prop  10D_prop  10E  12_Prop_East  13_Prop_East  14_Prop_East
 15_Jet_West  16_Jet_West  17_Jet_West  18  22  24  25  26
 27  28  29  30  31  32  33  35
 37  38  39A_prop  39B_prop  39C_prop  39D_prop  39E_prop  39F_prop
 7  8  9  A1  A10  A11  A12  A2
 A3  A4  A5  A6  A7  A8  A9  AFBO
 Alliance  ATAC  Bell  Bell_1  Bell_3  CEVA  GDC_1  GDC_2
 GDC_3  GDC_4  GDC_5  GDC_6  Gulfstream  Heli_1  Heli_2  Hillwood
 TCC

Nearby beacons

codeidentifierdistbearingfrequency
FTMUFIN (FORT WORTH) NDB5.9215°365
FUZRANGER (DALLAS-FORT WORTH VORTAC8.5123°115.70
NFWNAS JRB FORT WORTH (FT WO TACAN13.9211°108.70
TTTMAVERICK VOR/DME15.2112°113.10
DTPINCK (DENTON) NDB19.221°257
CVECOWBOY (DALLAS) VOR/DME21.2102°116.20
MQPMILLSAP (MINERAL WELLS) VORTAC37.6250°117.70
PQFMESQUITE NDB40.8102°248
UKWBOWIE VORTAC42.1318°117.15
JENGLEN ROSE TACAN56.8215°115
DNIDENISON (SHERMAN-DENISON) NDB60.337°341
CGQPOWELL (CORSICANA) NDB70.9136°344
CRSCORSICANA NDB73.5136°396
URH(DURANT) DME74.144°114.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 TEX186mi13°
 DALL8166mi81°
 KUSSO8199mi101°
 GARL1104mi108°
 JPOOL388mi171°
 SWABR8105mi258°
RW16R
 WORTH7291mi285°

STAR starting pointsdistanceinbound heading
ALL
 LIKES337.039°
 WESAT2, MOTZA127.3124°
 GREGS929.4162°
 SASIE6, TRUUK245.8237°
 DODJE6, REEKO355.6314°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16LMQP (70°)MQP
RAVYA (37mi, 48°) 4000ft
ARGUE (7mi, 84°) 3000ft
RW16LUKW (138°)UKW
RAVYA (27mi, 139°) 4000ft
ARGUE (7mi, 84°) 3000ft
 RNAVARGUE 3000ft
WIGZU (6mi, 168°) 2400ft
LVLEE (3mi, 168°) 1560ft
KAFW (4mi, 166°) 770ft
(5773mi, 109°) 1200ft
OBLON (5784mi, 289°) 3000ft
OBLON (turn)
RW16RMQP (70°)MQP
PULSE (36mi, 43°) 4000ft
KEENE (10mi, 90°) 3000ft
RW16RUKW (138°)UKW
FUNGO (24mi, 127°) 4000ft
KEENE (7mi, 127°) 3000ft
 RNAVKEENE 3000ft
ROMPS (6mi, 168°) 2400ft
DHOBI (3mi, 168°) 1440ft
KAFW (4mi, 165°) 776ft
(5773mi, 109°) 1200ft
OBLON (5784mi, 289°) 3000ft
OBLON (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DODJE6CAPTIVHFleft73 (253)°1.0min timedICAO rules
DODJE6CQYNDBleft95 (275)°< 60000ft1.0min timedICAO rules
DODJE6GGGNDBright114 (294)°< 17999ft1.0min timedICAO rules
DODJE6HERRIVHFleft101 (281)°1.0min timedICAO rules
DODJE6WEIRSVHFleft128 (308)°< 17999ft1.0min timedICAO rules
GREGS9ACKMEVHFright15 (195)°1.0min timedICAO rules
GREGS9HEATRVHFleft299 (119)°1.5min timedICAO rules
GREGS9KAJAYVHFright283 (103)°1.5min timedICAO rules
GREGS9MOOSEVHFleft15 (195)°1.0min timedICAO rules
GREGS9PLEBSVHFleft283 (103)°1.0min timedICAO rules
GREGS9SPSNDBleft348 (168)°1.0min timedICAO rules
GREGS9TURKIVHFright266 (86)°1.5min timedICAO rules
GREGS9UKWNDBleft283 (103)°1.0min timedICAO rules
GREGS9ZANTOVHFleft283 (103)°1.5min timedICAO rules
LIKES3BRRUSVHFright260 (80)°DME 10.0miICAO rules
LIKES3FOSSLVHFright205 (25)°DME 10.0miICAO rules
MOTZA1ACKMEVHFright15 (195)°1.0min timedICAO rules
MOTZA1HEATRVHFleft299 (119)°1.5min timedICAO rules
MOTZA1KAJAYVHFright283 (103)°1.5min timedICAO rules
MOTZA1MOOSEVHFleft15 (195)°1.0min timedICAO rules
MOTZA1PLEBSVHFleft283 (103)°1.0min timedICAO rules
MOTZA1SPSNDBleft348 (168)°1.0min timedICAO rules
MOTZA1TURKIVHFright266 (86)°1.5min timedICAO rules
MOTZA1UKWNDBleft283 (103)°1.0min timedICAO rules
MOTZA1ZANTOVHFleft283 (103)°1.5min timedICAO rules
REEKO3PURRSVHFleft136 (316)°DME 10.0miICAO rules
REEKO3VDUBBVHFleft83 (263)°DME 10.0miICAO rules
SASIE6BIRLEVHFright35 (215)°1.5min timedICAO rules
SASIE6BYPNDBright45 (225)°< 60000ft1.0min timedICAO rules
SASIE6GAATZVHFright35 (215)°1.0min timedICAO rules
SASIE6GLOVEVHFright64 (244)°18000ft - 45000ft1.5min timedICAO rules
SASIE6ROBEYVHFleft64 (244)°1.0min timedICAO rules
TRUUK2PRIZZVHFleft38 (218)°DME 10.0miICAO rules
WESAT2FAWNTVHFright360 (180)°DME 10.0miICAO rules
WESAT2FLOWNVHFleft285 (105)°DME 10.0miICAO rules
WESAT2GREKEVHFleft287 (107)°DME 10.0miICAO rules
WESAT2ROTTRVHFleft355 (175)°DME 10.0miICAO rules
WESAT2TURKIVHFright266 (86)°1.5min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
