Airports for X-Plane

Alton/st Louis - St. Louis Regl

Airport details

CountryUnited States of America
StateIllinois
RegionK5
AirspaceKansas City Ctr
MunicipalityBethalto
Elevation541ft (165m)
TimezoneGMT -6
Coordinates38.88992, -90.04600
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKALN
IATA codeALN
FAA codeALN

Communication

St. Louis Regl ATIS128.000
St. Louis Regl CTAF126.000
St. Louis Regl UNICOM122.950
St. Louis Regl Ground Control120.200
St. Louis Regl Tower126.000
St. Louis Regl Approach124.200
St. Louis Regl Departure124.200

Approach frequencies

ILS-cat-IRW29108.518.00mi
3° GSRW29108.518.00mi

Runway info

Runway 17 / 35
 length1983m (6506ft)
 bearing172° / 352°
 width30m (100ft)
 surfaceasphalt
Runway 11 / 29
 length2471m (8107ft)
 bearing109° / 289°
 width46m (150ft)
 surfaceasphalt

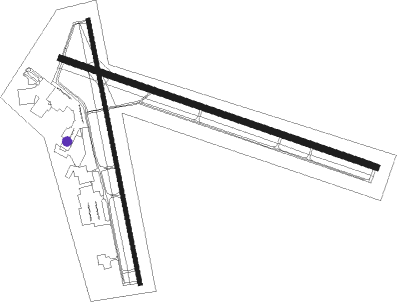

Airport layout - parking location GA5


Taxiway locations

 11  35  C  C1
Parking locations

 FBO  GA1  GA10  GA11  GA2  GA3  GA4  GA5
 GA6  GA7  GA8  GA9  GATE

Nearby beacons

codeidentifierdistbearingfrequency
CVMCIVIC MEMORIAL (ALTON) NDB0.5283°263
TOYTROY VORTAC10.8140°116
CSXDME16.8246°116.45
STLSAINT LOUIS VORTAC20.4266°117.40
CPACORE (CAHOKIA/ST LOUIS) NDB22.2182°350
SKESCOTT (BELLEVILLE) TACAN22.6151°112.20
FZEAVES (ST LOUIS) NDB26.7247°227
JDGOOEY (BELLEVILLE) NDB28.6143°385
GREGREENVILLE NDB31.695°233
SUSNOOP (ST LOUIS) NDB36.9251°326
VLAVANDALIA VOR/DME4377°114.30
FTZFORISTELL VORTAC44.8258°110.80
ENLCENTRALIA VORTAC50.2118°115
IJXDME53.9348°108.60
SPHUSKK (SPRINGFIELD) NDB54.618°382
CJCALDE (SPRINGFIELD) NDB58.227°240
SPISPINNER (SPRINGFIELD) VORTAC59.521°112.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 GATWY1180mi76°
 PLESS599mi133°
 LINDY890mi246°
 OZARK898mi276°

STAR starting pointsdistanceinbound heading
RW11
 DELMA450.353°
 FARMR317.7139°
RW17
 DELMA450.353°
RW29
 DELMA450.353°
 FARMR317.7139°
RW35
 DELMA450.353°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11FASHE (139°)FASHE
SQUAR (10mi, 192°) 2400ft
RW11HARDI (108°)HARDI
SQUAR (19mi, 107°) 2400ft
RW11SQUAR (109°)SQUAR 5000ft
SQUAR (turn) 2400ft
 RNAVSQUAR 2400ft
KEELS (7mi, 109°) 2300ft
HEDUV (4mi, 109°) 1140ft
KALN (2mi, 111°) 584ft
(5407mi, 113°) 794ft
QUNIE (5396mi, 293°) 2100ft
QUNIE (turn)
RW17FASHE (139°)FASHE
JETIK (9mi, 102°) 2200ft
RW17GIFTS (222°)GIFTS
JETIK (12mi, 262°) 2200ft
RW17JETIK (170°)JETIK 6000ft
JETIK (turn) 2200ft
 RNAVJETIK 2200ft
POSIC (7mi, 171°) 2200ft
YERUL (3mi, 171°) 1140ft
KALN (2mi, 164°) 576ft
(5407mi, 113°) 940ft
OGOVE (5407mi, 293°)
TOY (7mi, 116°) 3000ft
TOY (turn)
RW29JACOB (288°)JACOB
QUNIE (6mi, 289°) 2100ft
RW29TOY (320°)TOY
QUNIE (7mi, 59°) 2100ft
QUNIE (turn) 2100ft
 RNAVQUNIE 2100ft
OSERE (7mi, 289°) 2100ft
DIYEL (3mi, 289°) 1080ft
KALN (2mi, 286°) 581ft
(5407mi, 113°) 731ft
SQUAR (5419mi, 293°) 2400ft
SQUAR (turn)
RW35BREEZ (302°)BREEZ
GEKKE (22mi, 281°) 2200ft
RW35FEKRO (46°)FEKRO
BILNY (13mi, 95°) 2700ft
GEKKE (7mi, 26°) 2200ft
RW35GEKKE (353°)GEKKE 2200ft
 RNAVGEKKE 2200ft
OGOVE (7mi, 352°) 2200ft
KALN (6mi, 355°) 592ft
(5407mi, 113°) 945ft
JETIK (5409mi, 293°) 2200ft
JETIK (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
