Airports for X-Plane

Angola - Tri State Steuben Co

Airport details

CountryUnited States of America
StateIndiana
RegionK5
AirspaceChicago Ctr
MunicipalitySteuben County
Elevation995ft (303m)
TimezoneGMT -5
Coordinates41.63970, -85.08350
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKANQ
IATA codeANQ
FAA codeANQ

Communication

TRI STATE STEUBEN CO CTAF/UNICOM123.075
TRI STATE STEUBEN CO FORT WAYNE Approach/Departure132.150
TRI STATE STEUBEN CO FORT WAYNE Approach/Departure127.200

Runway info

Runway 5 / 23
 length1384m (4541ft)
 bearing55° / 235°
 width23m (75ft)
 surfaceasphalt
 displ threshold163m (535ft) / 0m (0ft)
 blast zone84m (276ft) / 0m (0ft)

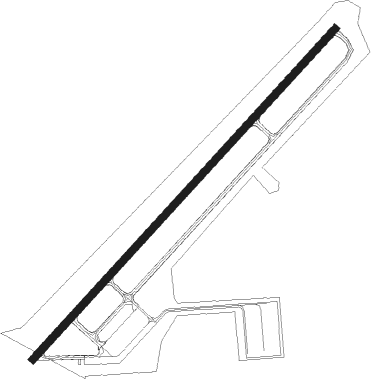

Airport layout


Parking locations

 Tie

Nearby beacons

codeidentifierdistbearingfrequency
IRSSTURGIS NDB18.8296°382
GWSHENK (AUBURN) NDB20.8157°227
LFDLITCHFIELD VOR/DME29.137°111.20
OLKWEBSTER LAKE VOR30226°110.40
AZAUSTN (KALAMAZOO) NDB35.6318°371
FWAFORT WAYNE VORTAC39.9189°117.80
AZOKALAMAZOO VOR/DME41.5322°109
GSHGOSHEN VORTAC42.9263°113.70
BTBATOL (BATTLE CREEK) NDB43.6352°272
JXNDME46.545°115.45

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05BRYTO (114°)BRYTO
HOBAD (10mi, 190°) 3000ft
FELAX (5mi, 129°) 3000ft
RW05FELAX (55°)FELAX 3000ft
RW05ILTON (325°)ILTON
WADLI (10mi, 257°) 3000ft
FELAX (5mi, 309°) 3000ft
RW05OLK (46°)OLK
FELAX (19mi, 41°) 3000ft
 RNAVFELAX 3000ft
AVROY (6mi, 55°) 2700ft
KANQ (5mi, 55°) 1023ft
(5185mi, 116°) 1395ft
WILAT (5177mi, 296°) 3000ft
WILAT (turn)
RW23BRYTO (114°)BRYTO
GILKE (16mi, 75°) 3000ft
WILAT (5mi, 129°) 3000ft
RW23ILTON (325°)ILTON
ESILE (15mi, 38°) 3000ft
WILAT (5mi, 309°) 3000ft
RW23LFD (217°)LFD
WILAT (19mi, 204°) 3000ft
RW23WILAT (235°)WILAT 10000ft
WILAT (turn) 3000ft
 RNAVWILAT 3000ft
JALIR (6mi, 235°) 2700ft
KANQ (6mi, 235°) 1045ft
(5185mi, 116°) 1395ft
FELAX (5192mi, 296°) 3000ft
FELAX (turn)
