Airports for X-Plane

Napa - Napa Co

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityNapa County
Elevation35ft (11m)
TimezoneGMT -8
Coordinates38.21320, -122.28069
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKAPC
IATA codeAPC
FAA codeAPC

Communication

Napa Co ATIS124.050
Napa Co UNICOM122.950
Napa Co CTAF118.700
Napa Co Ground Control121.700
Napa Co Tower118.700
Napa Co NORCAL Approach/Departure127.800

Approach frequencies

ILS-cat-IRW01L111.318.00mi
3° GSRW01L111.318.00mi
Nearby Points of Interest:
Eliza G. Yount House
-
Capt. N. H. Wulff House
-
William Andrews House
-
Napa County Courthouse Plaza
-
Goodman Library
-
Gordon Building
-
U.S. Post Office
-
Semorile Building
-
Bank of Napa
-
Napa Valley Opera House
-
Sam Kee Laundry Building
-
First Street Bridge
-
Vallejo Old City Historic District
-
Mare Island Naval Shipyard
-
Trefethen Vineyards
-
Sonoma Plaza
-
Old Masonic Hall
-
Suisun Masonic Lodge No. 55
-
Benicia Southern Pacific Railroad Passenger Depot
-
Benicia Arsenal
-
Nicholas Carriger Estate
-
USCGC Storis
-
Bernardo Fernandez House
-
Bank of Pinole
-
Tucker House

Runway info

Runway 1L / 19R
 length1813m (5948ft)
 bearing26° / 206°
 width46m (150ft)
 surfaceasphalt
 blast zone43m (141ft) / 0m (0ft)
Runway 6 / 24
 length1525m (5003ft)
 bearing79° / 259°
 width46m (150ft)
 surfaceconcrete
Runway 1R / 19L
 length766m (2513ft)
 bearing26° / 206°
 width23m (75ft)
 surfaceasphalt

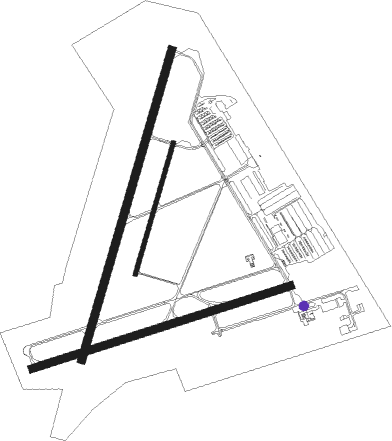

Airport layout - taxiway location J


Taxiway locations

 A  B  C  D  E  F  H  J
 J5  J6  K
Parking locations

 Helo  New

Nearby beacons

codeidentifierdistbearingfrequency
SGDSCAGGS ISLAND (NAPA) VORTAC4.8250°112.10
CCRCONCORD VOR/DME15126°117
SUUTRAVIS (FAIRFIELD) TACAN15.984°116.60
SAUSAUSALITO VOR/DME24.3214°116.20
PYEPOINT REYES VOR/DME28.8257°113.70
OAKOAKLAND VOR/DME29.3173°116.80
STSROSA DME30.6299°116.15
SFOSAN FRANCISCO VOR/DME35.9189°115.80
SACSACRAMENTO VORTAC3772°115.20
LVREIGA (LIVERMORE) NDB42.1131°374
NUQMOFFETT (MOUNTAIN VIEW) TACAN48164°117.60
OSIWOODSIDE VOR/DME49.2180°113.90
MCCMC CLELLAN (SACRAMENTO) VOR/DME49.463°109.20
ILAWILLIAMS VORTAC52.816°114.40
SJCSAN JOSE VOR/DME52.8158°114.10
MYVMARYSVILLE VOR/DME62.639°110.80
BABBEALE (MARYSVILLE) TACAN67.942°108.60
ENIMENDOCINO (UKIAH) VORTAC68.6310°112.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 LIZRD529mi257°
RW01L
 OZIEE4113mi1°
RW01R
 OZIEE4113mi1°
RW19 (ALL)
 LIZRD529mi257°
RW19L
 OZIEE4113mi1°
RW19R
 OZIEE4113mi1°
RW24
 OZIEE4113mi1°
 LIZRD529mi257°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LYHABAP (108°)HABAP
PEBGE (10mi, 150°) 4000ft
FESAV (8mi, 150°) 2600ft
FESAV (turn) 2600ft
RW01LYMICRA (55°)MICRA
ZIRUP (7mi, 75°) 4100ft
FESAV (7mi, 75°) 2600ft
RW01LYSABLO (340°)SABLO
FESAV (8mi, 283°) 2900ft
FESAV (turn) 2600ft
RW01LYSAU (34°)SAU
WEGNA (7mi, 41°) 3200ft
FESAV (6mi, 41°) 2600ft
 RNAVFESAV 2600ft
CIKPI (6mi, 26°) 1800ft
KAPC (6mi, 27°) 65ft
(6895mi, 107°) 436ft
CIVDA (6893mi, 287°)
POPES (13mi, 337°) 5000ft
POPES (turn) 5000ft
RW01LZHABAP (108°)HABAP
PEBGE (10mi, 150°) 4000ft
FESAV (8mi, 150°) 2600ft
FESAV (turn) 2600ft
RW01LZMICRA (55°)MICRA
ZIRUP (7mi, 75°) 4100ft
FESAV (7mi, 75°) 2600ft
RW01LZSABLO (340°)SABLO
FESAV (8mi, 283°) 2900ft
FESAV (turn) 2600ft
RW01LZSAU (34°)SAU
WEGNA (7mi, 41°) 3200ft
FESAV (6mi, 41°) 2600ft
 RNAVFESAV 2600ft
CIKPI (6mi, 26°) 1800ft
KAPC (6mi, 27°) 65ft
(6895mi, 107°) 217ft
CIVDA (6893mi, 287°)
POPES (13mi, 337°) 5000ft
POPES (turn) 5000ft
RW06PYE (77°)PYE
WHTLE (16mi, 78°) 2800ft
RW06ROZZA (119°)ROZZA
WHTLE (25mi, 142°) 2800ft
RW06SAU (34°)SAU
SIBME (8mi, 358°) 3800ft
WHTLE (10mi, 358°) 2800ft
 RNAVWHTLE 2800ft
CEBAN (7mi, 75°) 1700ft
ZAPIX (4mi, 79°) 339ft
(6897mi, 107°) 436ft
HABAP (6904mi, 287°) 4200ft
HABAP (turn) 4200ft
