Airports for X-Plane

Springdale - Springdale Muni

Airport details

CountryUnited States of America
StateArkansas
RegionK4
AirspaceMemphis Ctr
MunicipalitySpringdale
Elevation1353ft (412m)
TimezoneGMT -6
Coordinates36.17639, -94.11925
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKASG
IATA codeSPZ
FAA codeASG

Communication

Springdale Muni AWOS 3124.675
Springdale Muni UNICOM122.950
Springdale Muni CTAF118.200
Springdale Muni Ground Control121.600
Springdale Muni Tower118.200
Springdale Muni RAZORBACK Approach/Departure128.150

Approach frequencies

ILS-cat-IRW18110.918.00mi
3° GSRW18110.918.00mi

Runway info

Runway 18 / 36
 length1620m (5315ft)
 bearing189° / 9°
 width23m (75ft)
 surfaceasphalt
 displ threshold111m (364ft) / 0m (0ft)

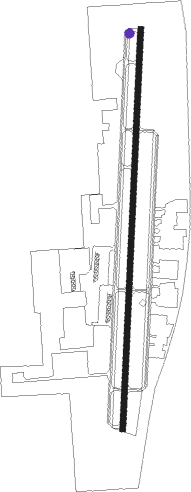

Airport layout - taxiway location A1


Taxiway locations

 36  A  A1  B
Parking locations

 GA  GA4  GA5  GA6  GATE1  GATE2

Nearby beacons

codeidentifierdistbearingfrequency
RZCRAZORBACK (FAYETTEVILLE) VORTAC4.2358°116.40
SLGSILOAM SPRINGS NDB17.9272°284
EOSNEOSHO VOR/DME42.8335°117.30
HROHARRISON VOR/DME44.781°112.50
FSMFORT SMITH VORTAC47.9191°110.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW18
 ASG518mi105°
RW36
 ASG518mi105°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18CITGA (209°)CITGA
FITAL (14mi, 225°) 3300ft
RW18PINNE (157°)PINNE
JATUM (9mi, 153°) 3300ft
FITAL (5mi, 96°) 3300ft
RW18RZC (178°)RZC
FITAL (7mi, 15°) 3300ft
FITAL (turn) 3300ft
RW18TEEUP (225°)TEEUP
WARIT (4mi, 253°) 3300ft
FITAL (5mi, 276°) 3300ft
 RNAVFITAL 3300ft
BEDVE (6mi, 189°) 3000ft
KASG (5mi, 189°) 1384ft
(5605mi, 111°) 1630ft
ZAVOR (5607mi, 291°) 3800ft
ZAVOR (turn)
RW36BARKK (15°)BARKK
ZAVOR (12mi, 21°) 3800ft
RW36CASKS (325°)CASKS
ESOVE (16mi, 315°) 4100ft
ZAVOR (5mi, 276°) 3800ft
RW36RZC (178°)RZC
ZAVOR (16mi, 186°) 3800ft
ZAVOR (turn) 3800ft
RW36SUMMO (59°)SUMMO
WELAD (9mi, 86°) 3800ft
ZAVOR (5mi, 96°) 3800ft
 RNAVZAVOR 3800ft
HAPOD (6mi, 9°) 3000ft
KASG (5mi, 9°) 1397ft
(5605mi, 111°) 1602ft
FITAL (5603mi, 291°) 3300ft
FITAL (turn)
