Airports for X-Plane

Bedford - Laurence G Hanscom Field

Airport details

CountryUnited States of America
StateMassachusetts
RegionK6
AirspaceBoston Ctr
MunicipalityBedford
Elevation129ft (39m)
TimezoneGMT -5
Coordinates42.46994, -71.28900
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBED
IATA codeBED
FAA codeBED

Communication

Laurence G Hanscom Field ATIS124.600
Laurence G Hanscom Field UNICOM122.950
Laurence G Hanscom Field CTAF118.500
Laurence G Hanscom Field Clearance DEL121.850
Laurence G Hanscom Field HANSCOM Ground Control121.700
Laurence G Hanscom Field HANSCOM Tower118.500
Laurence G Hanscom Field BOSTON Approach/Departure124.400

Approach frequencies

ILS-cat-IRW11111.1518.00mi
ILS-cat-IRW29111.1518.00mi
3° GSRW11111.1518.00mi
3° GSRW29111.1518.00mi

Runway info

Runway 11 / 29
 length2129m (6985ft)
 bearing95° / 275°
 width46m (151ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 5 / 23
 length1556m (5105ft)
 bearing46° / 226°
 width46m (151ft)
 surfaceasphalt
 blast zone178m (584ft) / 255m (837ft)

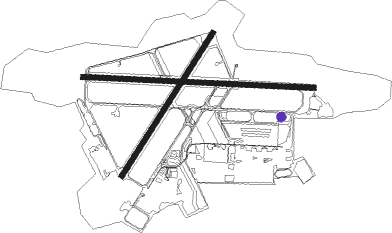

Airport layout - taxiway location B


Taxiway locations

 05  11  23  29  A  B  C  E
 F  G  J  M  N  R  S  T
Parking locations

 Business  GA  South  Terminal  West

Nearby beacons

codeidentifierdistbearingfrequency
BOSBOSTON VOR/DME14.8111°112.70
LWMDME18.336°112.50
OWSTOGE (NORWOOD) NDB22.2155°397
MHTMANCHESTER VOR/DME24.2349°114.40
MJFITZY (MANCHESTER) NDB25.9329°209
GDMGARDNER VOR/DME34.3276°110.60
PUTPUTNAM VOR/DME39.5227°117.40
COEPSOM (CONCORD) NDB39.6346°216
PSM(PORTSMOUTH) DME4237°116.50
PVDPROVIDENCE VOR/DME45.2191°115.60
CONCONCORD VOR/DME46.7339°112.90
ESGROLLINS (ROLLINSFORD) NDB49.432°260
SFSANFD (SANFORD) NDB55.628°349
FMHOTIS (FALMOUTH) TACAN59.6136°115.80
ORWNORWICH VOR/DME63.3218°110
ENEKENNEBUNK VOR/DME64.635°117.10

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05
 HNSCM321mi240°
RW11
 HNSCM321mi240°
RW23
 HNSCM321mi240°
RW29
 HNSCM321mi240°

STAR starting pointsdistanceinbound heading
ALL
 GRAYM639.764°
 ZELKA211.895°
RW11
 DREEM221.177°
RW23
 DREEM221.177°
RW29
 DREEM221.177°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11-YBRONC (96°)BRONC
LOBBY (5mi, 95°) 2300ft
ZELKA (3mi, 99°) 2000ft
JOPVU (6mi, 95°) 1800ft
RW11-YFOVEG (62°)FOVEG
WIDKA (5mi, 5°) 2000ft
URTOQ (3mi, 45°) 1800ft
JOPVU (2mi, 85°) 1800ft
RW11-YHIDRI (117°)HIDRI
ZELKA (6mi, 189°) 2000ft
JOPVU (6mi, 95°) 1800ft
RW11-YLWRNC (216°)LWRNC
OMIXY (8mi, 242°) 2000ft
ZARAB (5mi, 242°) 2000ft
ILEXE (6mi, 242°) 2000ft
JOPVU (5mi, 161°) 1800ft
RW11-YWANLA (82°)WANLA
CESOL (6mi, 74°) 1900ft
URTOQ (3mi, 74°) 1800ft
JOPVU (2mi, 85°) 1800ft
 RNAVJOPVU 1800ft
KBED (6mi, 96°) 182ft
(4583mi, 121°) 1000ft
ZIMOT (4580mi, 301°) 2000ft
ZIMOT (turn)
RW11-ZHIDRI (117°)HIDRI
ZELKA (6mi, 189°) 1900ft
RW11-ZZELKA (95°)ZELKA 1900ft
 RNAVZELKA 1900ft
JOPVU (6mi, 95°) 1800ft
SUVVO (3mi, 95°) 880ft
KBED (3mi, 96°) 182ft
(4583mi, 121°) 1000ft
ZIMOT (4580mi, 301°) 2000ft
ZIMOT (turn)
RW23DREEM (77°)DREEM
JABMU (10mi, 59°) 3100ft
EZKOW (20mi, 59°) 3000ft
JENDI (5mi, 119°) 2000ft
RW23JENDI (226°)JENDI 2000ft
RW23LOBBY (96°)LOBBY
EZKOW (20mi, 66°) 3000ft
JENDI (5mi, 119°) 2000ft
RW23LWRNC (216°)LWRNC
JENDI (7mi, 198°) 2000ft
 RNAVJENDI 2000ft
OYIVE (6mi, 226°) 1800ft
KBED (5mi, 225°) 181ft
(4583mi, 121°) 532ft
CACVA (4585mi, 301°)
WHYBE (9mi, 200°) 3000ft
WHYBE (turn)
RW29-YEXXRO (222°)EXXRO
UJEGE (5mi, 110°) 1800ft
HADEV (2mi, 136°) 1800ft
ZOSLA (4mi, 233°) 1800ft
JAYSE (2mi, 275°) 1800ft
RW29-YLWRNC (216°)LWRNC
YANRU (8mi, 169°) 2000ft
HADEV (7mi, 170°) 1800ft
ZOSLA (4mi, 233°) 1800ft
JAYSE (2mi, 275°) 1800ft
RW29-YMORIS (275°)MORIS
ZOSLA (4mi, 275°) 1800ft
JAYSE (2mi, 275°) 1800ft
 RNAVJAYSE 1800ft
KBED (6mi, 275°) 178ft
COMON (3mi, 276°)
SOSYO (3mi, 278°) 2000ft
SOSYO (turn)
RW29-ZSEGOE (253°)SEGOE
MORIS (7mi, 190°) 1800ft
 RNAVMORIS 1800ft
JAYSE (6mi, 275°) 1800ft
ROGGR (2mi, 275°) 1000ft
KBED (3mi, 275°) 178ft
(4583mi, 121°) 323ft
COMON (4586mi, 301°)
SOSYO (3mi, 278°) 2000ft
SOSYO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DREEM2DREEMVHFleft233 (53)°1.0min timedICAO rules
GRAYM6DREEMVHFleft233 (53)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
