Airports for X-Plane

Bar Harbor - Hancock Co Bar Harbor

Airport details

CountryUnited States of America
StateMaine
RegionK6
AirspaceBoston Ctr
MunicipalityTrenton
Elevation83ft (25m)
TimezoneGMT -5
Coordinates44.44977, -68.36156
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBHB
IATA codeBHB
FAA codeBHB

Communication

Hancock Co Bar Harbor AWOS 3118.350
Hancock Co Bar Harbor CTAF123.000
Hancock Co Bar Harbor CLEARANCE DELIVERY119.900
Hancock Co Bar Harbor UNICOM123.000
Hancock Co Bar Harbor BANGOR APCH/Departure133.600

Approach frequencies

ILS-cat-IRW22108.318.00mi
3° GSRW22108.318.00mi

Runway info

Runway 4 / 22
 length1586m (5203ft)
 bearing33° / 213°
 width30m (98ft)
 surfaceasphalt
Runway 17 / 35
 length993m (3258ft)
 bearing141° / 321°
 width23m (75ft)
 surfaceasphalt
 displ threshold195m (640ft) / 45m (148ft)

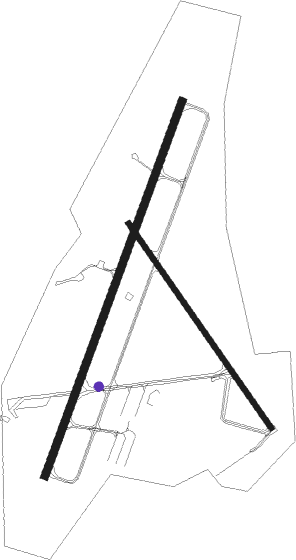

Airport layout - taxiway location A


Taxiway locations

 A  D  E  H
Parking locations

 Based  FBO  Private  Taxilane  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
BGRBANGOR VORTAC32.1307°114.80
SUHSPRUCEHEAD (OWLS HEAD) NDB39.9242°356
BUPBURNHAM (PITTSFIELD) NDB45.1284°348
PNNDME59.737°114.30

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04CUDVA (4°)CUDVA 3000ft
WHAME (5mi, 288°) 2900ft
RW04FOMLU (56°)FOMLU 2900ft
WHAME (5mi, 108°) 2900ft
RW04WHAME (33°)WHAME 2900ft
 RNAVWHAME 2900ft
TABUU (6mi, 32°) 2000ft
HALBO (3mi, 33°) 860ft
KBHB (3mi, 34°) 124ft
(4489mi, 123°) 333ft
BECRA (4487mi, 303°) 3000ft
BECRA (turn)
RW22BECRA (212°)BECRA 3000ft
RW22CARDA (184°)CARDA 3000ft
BECRA (5mi, 108°) 3000ft
RW22DIRNE (235°)DIRNE 3000ft
BECRA (5mi, 288°) 3000ft
 RNAVBECRA 3000ft
CDLAC (6mi, 213°) 2100ft
JESUL (4mi, 213°) 780ft
KBHB (3mi, 211°) 120ft
(4489mi, 123°) 283ft
WHAME (4491mi, 303°) 2900ft
WHAME (turn)
