Airports for X-Plane

Bismarck - Bismarck Municipal

Airport details

CountryUnited States of America
StateNorth Dakota
RegionK3
AirspaceMinneapolis Ctr
MunicipalityBismarck
Elevation1661ft (506m)
TimezoneGMT -6
Coordinates46.77272, -100.74575
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBIS
IATA codeBIS
FAA codeBIS

Communication

Bismarck Municipal ATIS119.350
Bismarck Municipal UNICOM122.950
Bismarck Municipal CTAF118.300
Bismarck Municipal GROUND121.900
Bismarck Municipal TOWER118.300
Bismarck Municipal ApproachROACH126.300
Bismarck Municipal DepartureARTURE126.300

Approach frequencies

ILS-cat-IRW31110.318.00mi
ILS-cat-IRW13111.518.00mi
3° GSRW31110.318.00mi
3° GSRW13111.518.00mi

Runway info

Runway 13 / 31
 length2678m (8786ft)
 bearing127° / 307°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 3 / 21
 length2010m (6594ft)
 bearing50° / 230°
 width30m (100ft)
 surfaceasphalt
 blast zone61m (200ft) / 62m (203ft)

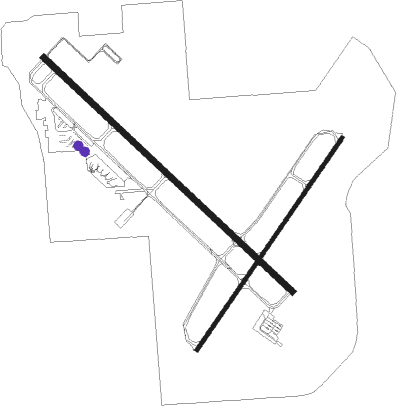

Airport layout - parking location Large


Taxiway locations

 B  C  C1  C2  C3  C4  C5  D
 D1  D2  D3
Parking locations

 ANG  Execuitive  FBO  GA  Gate  Large

Nearby beacons

codeidentifierdistbearingfrequency
BISBISMARCK VOR/DME3.398°116.50
HZEHAZEN NDB46.5302°414

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03BIS (278°)BIS
AXAXE (15mi, 240°) 4500ft
AXAXE (turn) 4500ft
RW03CENTR (120°)CENTR
AXAXE (26mi, 151°) 4500ft
AXAXE (turn) 4500ft
RW03OHROR (18°)OHROR
AXAXE (7mi, 315°) 4500ft
RW03SAILM (92°)SAILM
AXAXE (18mi, 119°) 4500ft
AXAXE (turn) 4500ft
 RNAVAXAXE 4500ft
JEBIR (6mi, 50°) 3700ft
UPERE (4mi, 50°) 2500ft
KBIS (3mi, 44°) 1709ft
(5846mi, 115°) 1861ft
HUFMU (5836mi, 295°) 4000ft
HUFMU (turn)
RW13BIS (278°)BIS
WIMTO (17mi, 300°) 3800ft
WIMTO (turn) 3800ft
RW13CENTR (120°)CENTR
WIMTO (8mi, 110°) 3800ft
RW13SAILM (92°)SAILM
WIMTO (15mi, 62°) 3800ft
RW13SANDD (257°)SANDD
WIMTO (36mi, 272°) 4100ft
WIMTO (turn) 3800ft
RW13WILTN (171°)WILTN
WIMTO (11mi, 233°) 3800ft
 RNAVWIMTO 3800ft
OMUGE (7mi, 127°) 3600ft
JABVU (4mi, 127°) 2380ft
KBIS (3mi, 126°) 1712ft
(5846mi, 115°) 1854ft
JUMGU (5839mi, 295°) 3700ft
JUMGU (turn)
RW21BIS (278°)BIS
HUFMU (11mi, 35°) 4000ft
HUFMU (turn) 4000ft
RW21SAILM (92°)SAILM
HUFMU (31mi, 79°) 4000ft
HUFMU (turn) 4000ft
RW21STIEL (266°)STIEL
HUFMU (21mi, 283°) 4000ft
 RNAVHUFMU 4000ft
EHTIP (6mi, 230°) 3600ft
WULAB (3mi, 230°) 2500ft
KBIS (3mi, 235°) 1709ft
(5846mi, 115°) 1861ft
AXAXE (5855mi, 295°) 4500ft
AXAXE (turn)
RW31BIS (278°)BIS
JUMGU (10mi, 139°) 3700ft
JUMGU (turn) 3700ft
RW31LINTN (338°)LINTN
JUMGU (16mi, 7°) 3700ft
RW31MOFIT (296°)MOFIT
JUMGU (11mi, 285°) 3700ft
RW31STIEL (266°)STIEL
JUMGU (23mi, 247°) 3700ft
 RNAVJUMGU 3700ft
ICONO (6mi, 307°) 3500ft
CUCAY (4mi, 307°) 2320ft
KBIS (3mi, 308°) 1693ft
(5846mi, 115°) 1845ft
WIMTO (5854mi, 295°) 3800ft
WIMTO (turn)
