Airports for X-Plane

Boston - Boston Logan Intl

Airport details

CountryUnited States of America
StateMassachusetts
RegionK6
AirspaceBoston Ctr
MunicipalityBoston
Elevation20ft (6m)
TimezoneGMT -5
Coordinates42.36295, -71.00639
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeKBOS
IATA codeBOS
FAA codeBOS

Communication

Boston Logan Intl Boston ATIS135.000
Boston Logan Intl Boston Unicom122.950
Boston Logan Intl Boston Delivery121.650
Boston Logan Intl Boston Ground Control121.900
Boston Logan Intl Boston Tower128.800
Boston Logan Intl Boston Approach South127.200
Boston Logan Intl Boston Approach West120.600
Boston Logan Intl Boston Approach North118.250
Boston Logan Intl Boston Departure133.000

Approach frequencies

ILS-cat-IIIRW33L110.718.00mi
ILS-cat-IIIRW04R110.318.00mi
ILS-cat-IRW22L110.318.00mi
ILS-cat-IRW27111.318.00mi
ILS-cat-IRW15R110.718.00mi
3° GSRW15R110.718.00mi
3° GSRW22L110.318.00mi
3° GSRW33L110.718.00mi
3° GSRW27111.318.00mi
3° GSRW04R110.318.00mi
Nearby Points of Interest:
Edward B. Newton School
-
Winthrop Center/Metcalf Square Historic District
-
United States lightship Nantucket
-
Theodore Lyman School
-
Deane Winthrop House
-
Fort Banks Mortar Battery
-
Roseway
-
Winthrop Shore Drive
-
Long Wharf and Customhouse Block
-
Bigelow School
-
Union Wharf
-
Highland School
-
Congress Street Fire Station
-
Harrison Loring House
-
Winthrop Parkway
-
Fulton-Commercial Streets District
-
Fort Point Channel Historic District
-
Custom House District
-
Russia Wharf Buildings
-
Mary T. Ronan School
-
Gridley Street Historic District
-
Richardson Block
-
Boston Navy Yard
-
Vermont Building
-
Blackstone Block Historic District

Runway info

Runway 15R / 33L
 length3072m (10079ft)
 bearing127° / 307°
 width46m (151ft)
 surfaceasphalt
 displ threshold270m (886ft) / 0m (0ft)
 blast zone59m (194ft) / 6m (20ft)
Runway 4L / 22R
 length2400m (7874ft)
 bearing26° / 206°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 251m (823ft)
 blast zone0m (0ft) / 59m (194ft)
Runway 4R / 22L
 length3053m (10016ft)
 bearing26° / 206°
 width46m (151ft)
 surfaceasphalt
 displ threshold353m (1158ft) / 367m (1204ft)
 blast zone0m (0ft) / 61m (200ft)
Runway 9 / 27
 length2129m (6985ft)
 bearing80° / 260°
 width46m (151ft)
 surfaceasphalt
 blast zone0m (0ft) / 49m (161ft)
Runway 15L / 33R
 length781m (2562ft)
 bearing127° / 307°
 width30m (98ft)
 surfaceasphalt
 blast zone0m (0ft) / 21m (69ft)
Runway 14 / 32
 length1522m (4993ft)
 bearing118° / 298°
 width31m (102ft)
 surfaceasphalt
 blast zone0m (0ft) / 244m (801ft)

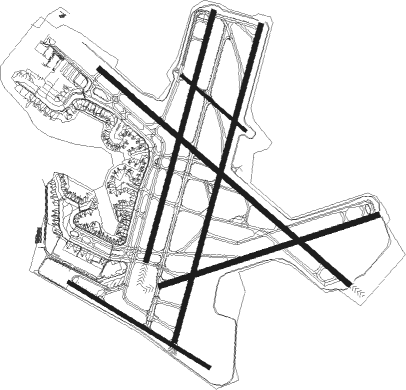

Airport layout


Taxiway locations

 A  B  C  C1  D  D1  D2  E
 E1  F  G  J  J1  K  L  M
 M1  N  N1  N2  N3  P  Q  R
 Y  Z
Parking locations

 10  11  12  14  14C  14D  14F  14G
 14I  14K  14L  9  A1  A10  A11  A13
 A14  A14A  A15  A16  A16A  A17  A18  A19
 A19A  A2  A20  A21  A22  A3  A4  A5
 A6  A6A  A7  A8  A8A  A9  B1  B10
 B11  B12  B14  B15  B16  B17  B18  B19
 B2  B20  B21  B22  B22B  B23  B23A  B24
 B25  B26  B27  B27W  B28  B29  B3  B30
 B31  B31A  B32  B33  B35  B35A  B36  B37
 B38  B39  B4  B5  B6  B7  B8  B8X
 B9  C10  C11  C12  C14  C15  C16  C17
 C18  C19  C20  C21  C22  C25  C26  C27
 C28  C29  C30  C31  C32  C33  C34  C36
 C40  C41  C42  C8  C9  E1  E10  E11
 E2  E3  E4  E5  E6  E7  E8  E9
 General  NC1  NC11  NC12  NC12A  NC13  NC13A  NC14
 NC15  NC16  NC17  NC19  NC2  NC20  NC21  NC22
 NC4  NC5  NC5A  NC6  NC8  NC9

Nearby beacons

codeidentifierdistbearingfrequency
BOSBOSTON VOR/DME0.8108°112.70
OWSTOGE (NORWOOD) NDB15.5207°397
LWMDME23347°112.50
MHTMANCHESTER VOR/DME34.3324°114.40
MJFITZY (MANCHESTER) NDB37.9314°209
PVCPROVINCETOWN NDB39111°389
PVDPROVIDENCE VOR/DME42.7214°115.60
PSM(PORTSMOUTH) DME4414°116.50
PUTPUTNAM VOR/DME44.6244°117.40
FMHOTIS (FALMOUTH) TACAN47.6145°115.80
LFVMARCONI (NORTH TRURO) VOR/DME47.8110°114.70
COEPSOM (CONCORD) NDB49.4329°216
ESGROLLINS (ROLLINSFORD) NDB5212°260
HYBOGEY (HYANNIS) NDB52.8129°342
CONCONCORD VOR/DME57.2326°112.90
SFSANFD (SANFORD) NDB58.810°349
MVYMARTHA'S VINEYARD VOR/DME60.6158°114.50
ORWNORWICH VOR/DME65.6231°110

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04 (ALL)
 LOGAN330mi261°
RW04R
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 REVSS536mi269°
 HYLND628mi327°
RW09
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 LOGAN330mi261°
 REVSS536mi269°
 HYLND628mi327°
RW14
 LOGAN330mi261°
RW15R
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 LOGAN330mi261°
 REVSS536mi269°
 HYLND628mi327°
RW22 (ALL)
 LOGAN330mi261°
RW22L
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 REVSS536mi269°
 HYLND628mi327°
RW22R
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 REVSS536mi269°
 HYLND628mi327°
RW27
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 WYLYY417mi231°
 PATSS635mi249°
 BLZZR535mi259°
 LOGAN330mi261°
 REVSS536mi269°
 HYLND628mi327°
RW33L
 LBSTA731mi42°
 CELTK641mi96°
 BRUWN657mi134°
 SSOXS634mi154°
 PATSS635mi249°
 BLZZR535mi259°
 LOGAN330mi261°
 REVSS536mi269°
 HYLND628mi327°

STAR starting pointsdistanceinbound heading
ALL
 ORW742.734°
 WOONS265.651°
 GDM447.8100°
RW04 (ALL)
 JFUND238.5105°
 OOSHN537.2253°
RW04L
 ROBUC336.826°
RW04R
 ROBUC336.826°
RW15R
 ROBUC336.826°
 JFUND238.5105°
 OOSHN537.2253°
RW22 (ALL)
 ROBUC336.826°
 JFUND238.5105°
 OOSHN537.2253°
RW27
 ROBUC336.826°
 JFUND238.5105°
 OOSHN537.2253°
RW32
 ROBUC336.826°
 JFUND238.5105°
 OOSHN537.2253°
RW33L
 ROBUC336.826°
 JFUND238.5105°
 OOSHN537.2253°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04RGOSHI (26°)GOSHI 6000ft
WINNI (5mi, 26°) 4000ft
 RNAVWINNI 4000ft
NABBO (5mi, 26°) 3000ft
MILTT (5mi, 26°) 1700ft
IRSEW (3mi, 26°) 700ft
KBOS (3mi, 25°) 69ft
(4569mi, 121°) 218ft
OMVOZ (4569mi, 301°)
WAXEN (12mi, 22°) 3000ft
WAXEN (turn)
RW15RAADMS (125°)AADMS 5000ft
ZOMIB (5mi, 121°) 4000ft
RW15RGDM (100°)GDM
ZOMIB (36mi, 91°) 4000ft
 RNAVZOMIB 4000ft
WIDUP (5mi, 127°) 3000ft
EMMEL (4mi, 127°) 1700ft
KBOS (6mi, 128°) 77ft
(4569mi, 121°) 217ft
HUBIR (4567mi, 301°)
CELTS (10mi, 129°) 3000ft
CELTS (turn)
RW27AYBEE (261°)AYBEE 6000ft
KLANE (7mi, 260°) 4000ft
LONER (4mi, 260°) 3000ft
 RNAVLONER 3000ft
RIPIT (5mi, 260°) 1700ft
KBOS (6mi, 263°) 72ft
(4569mi, 121°) 419ft
WANTU (4571mi, 301°)
BOSOX (27mi, 256°) 3000ft
BOSOX (turn)
RW32FREDO (317°)FREDO
DUNKK (11mi, 337°) 4000ft
HAVRD (7mi, 307°) 4000ft
YAARD (4mi, 307°) 3000ft
RW32INNDY (9°)INNDY
QUINC (21mi, 55°) 4000ft
DUNKK (6mi, 54°) 4000ft
HAVRD (7mi, 307°) 4000ft
YAARD (4mi, 307°) 3000ft
RW32SCUPP (253°)SCUPP
BOATZ (31mi, 216°) 4000ft
DUNKK (6mi, 234°) 4000ft
HAVRD (7mi, 307°) 4000ft
YAARD (4mi, 307°) 3000ft
RW32WOONS (51°)WOONS
QUINC (34mi, 85°) 4000ft
DUNKK (6mi, 54°) 4000ft
HAVRD (7mi, 307°) 4000ft
YAARD (4mi, 307°) 3000ft
 RNAVYAARD 3000ft
BGDIG (6mi, 307°) 1500ft
PAARK (4mi, 307°) 204ft
(4569mi, 121°) 419ft
WINDZ (4571mi, 301°)
TELLE (19mi, 269°) 3000ft
TELLE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GDM4GDMNDBleft294 (114)°1.0min timedICAO rules
JFUND2JFUNDVHFleft297 (117)°DME 10.0miICAO rules
JFUND2ONDECVHFleft293 (113)°DME 15.0miICAO rules
JFUND2SEETSVHFright294 (114)°DME 15.0mi230
OOSHN5AJJAYVHFleft37 (217)°< 60000ftDME 20.0miICAO rules
OOSHN5ENENDBleft44 (224)°1.5min timedICAO rules
OOSHN5FERNZVHFright179 (359)°< 60000ftDME 20.0miICAO rules
OOSHN5LONEYVHFright182 (2)°DME 10.0miICAO rules
OOSHN5OOSHNVHFright80 (260)°DME 20.0miICAO rules
ORW7PVDNDBright234 (54)°1.0min timedICAO rules
ROBUC3BANKIVHFright263 (83)°DME 10.0miICAO rules
ROBUC3JOODYVHFleft255 (75)°DME 10.0miICAO rules
ROBUC3PROVIVHFright234 (54)°DME 10.0miICAO rules
WOONS2ORWNDBleft238 (58)°2500ft - 17500ft1.0min timedICAO rules
WOONS2WOONSVHFleft240 (60)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
