Airports for X-Plane

Cadillac - Wexford Co

Airport details

CountryUnited States of America
StateMichigan
RegionK5
AirspaceMinneapolis Ctr
MunicipalityCadillac
Elevation1307ft (398m)
TimezoneGMT -5
Coordinates44.27533, -85.41891
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCAD
IATA codeCAD
FAA codeCAD

Communication

WEXFORD CO AWOS 3128.325
WEXFORD CO CTAF/UNICOM122.800

Approach frequencies

ILS-cat-IRW07108.5518.00mi
3° GSRW07108.5518.00mi
Nearby Points of Interest:
Masonic Temple Building
-
Cadillac Public Library
-
Charles T. Mitchell House
-
Elks Temple Building
-
Frank J. Cobbs House
-
Cobbs and Mitchell Building
-
Cadillac-Soo Lumber Company 3
-
John J. Makinen Bottle House
-
Idlewild

Runway info

Runway 7 / 25
 length1521m (4990ft)
 bearing73° / 253°
 width30m (100ft)
 surfaceasphalt
 blast zone0m (0ft) / 141m (463ft)
Runway 18 / 36
 length612m (2008ft)
 bearing179° / 359°
 width46m (150ft)
 surfacegrass

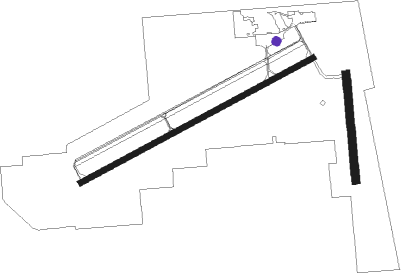

Airport layout - parking location Ramp


Parking locations

 New  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
MAWEXOR (CADILLAC) NDB5.9253°336
TVCTRAVERSE CITY VOR/DME24.2342°114.60
TVGWENN (TRAVERSE CITY) NDB27.5359°365
MBJEPOT (MANISTEE) NDB31.1270°254
MBLDME35.9270°111.40
GYGGRAYLING NDB38.151°359
CGGGRAYLING VOR38.360°109.80
HICWHITE CLOUD VOR/DME43.9203°117.60
MOPMOUNT PLEASANT VOR/DME49134°110.60
GLBANGU (GAYLORD) NDB51.540°375
GLRGAYLORD VOR/DME53.744°109.20

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07ISNEW (54°)ISNEW
WIKAP (5mi, 329°) 3600ft
RW07MBL (90°)MBL
JIXMO (23mi, 90°) 3600ft
WIKAP (5mi, 148°) 3600ft
RW07TVC (162°)TVC
JIXMO (25mi, 204°) 3600ft
WIKAP (5mi, 148°) 3600ft
RW07WIKAP (73°)WIKAP 3600ft
 RNAVWIKAP 3600ft
GEWIZ (6mi, 72°) 3200ft
KCAD (6mi, 73°) 1352ft
(5208mi, 117°) 1507ft
TEVUY (5198mi, 298°) 3000ft
TEVUY (turn)
RW25MBL (90°)MBL
FUNWI (45mi, 81°) 3200ft
TEVUY (5mi, 149°) 3000ft
RW25MOP (314°)MOP
USOYU (43mi, 329°) 3000ft
TEVUY (5mi, 329°) 3000ft
RW25TEVUY (252°)TEVUY 3000ft
RW25TVC (162°)TVC
FUNWI (20mi, 126°) 3000ft
TEVUY (5mi, 149°) 3000ft
 RNAVTEVUY 3000ft
JERRO (6mi, 253°) 3000ft
KCAD (5mi, 252°) 1342ft
(5208mi, 117°) 1625ft
WIKAP (5219mi, 297°) 3600ft
WIKAP (turn)
